10. SPECIFICATIONS
LCD Monitor
Screen size: 5.8-inch(127.2mm Width ✕
71.88mm Height)
Display method: Transmission type TN liquid
crystal display
Drive method: TFT(thin-film transistor) active
matrix driving
Pixels: 280800 (1200 ✕ 234)
TV Tuner
Tuning system: PLL synthesizer system
Reception channels:
VHF: 2 to 13 ch (54 to 216 MHz)
UHF: 14 to 69 ch (470 to 806 MHz)
Intermediate frequency:
45.75 MHz for video
41.25 MHz for audio
Antenna input: 75 Ω unbalanced
Input/Output
Video input:
1.0 ± 0.2 Vp-p (input impedance 75 Ω)
VTR video input: 3.5ømini-jack
Audio input:
130 ± 60 mVrms (input impedance 45 kΩ or
greater)
VTR audio input: 3.5ømini-jack
Video output:1.0 V ± 0.2 Vp-p(output impedance
75 Ω)
General
Power source voltage:DC13.2 V
(10.8 to 15.6 V)
Ground: Negative
Current consumption: Less than 2.0 A
Weight: 1.5 kg
Dimensions: 178 mm Width ✕
50 mm Height ✕
156 mm Depth
(7" Width ✕
1-15/16 " Height ✕
6-1/8" Depth)
Note:
• Specifications and design are subject to
change widthout notice for further improve-
ment.

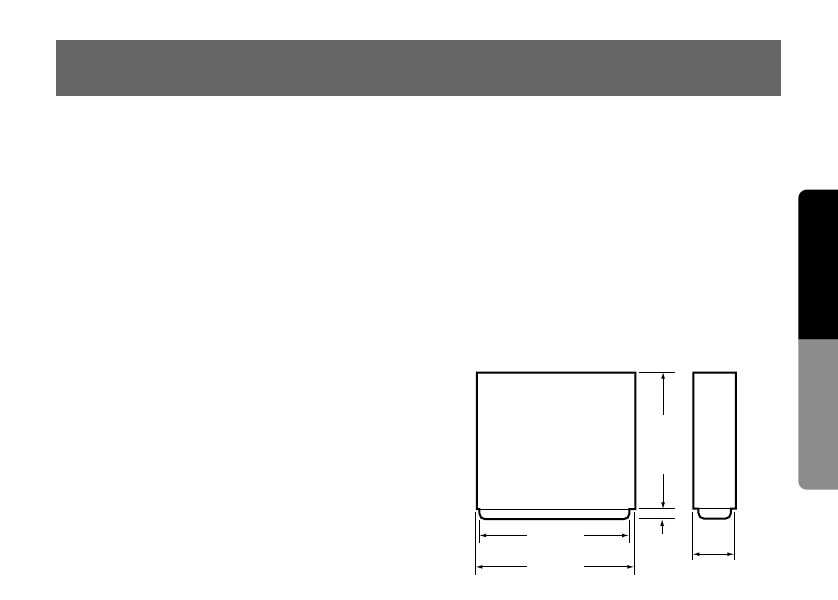

50 mm
(1-15/16")
23 mm
(15/16")
156 mm
(6-1/8")
172 mm
(6-3/4")
178 mm
(7")
