OVERVIEW
__________________________________________________________________________________

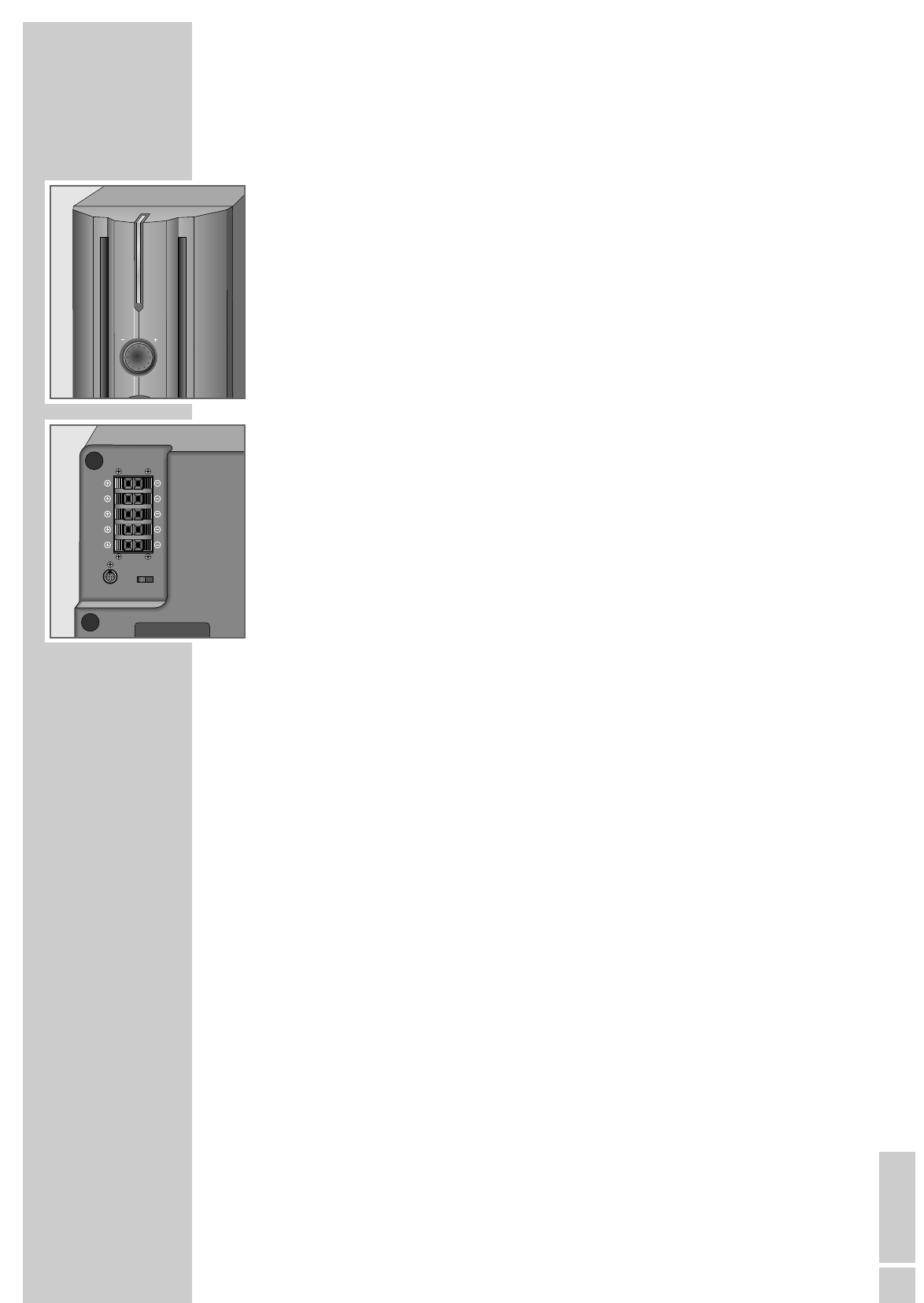

Operating controls and connections of the
subwoofer
POWER Operating indicator (on front of device). Glows blue
during operation.
Note:
If the DVD Micro System is switched to standby or in eco
mode, the subwoofer also switches to the same operat-
ing mode. The indicator lights up red.
– VOLUME + Controller for regulating the bass volume (front side of
the device). Ideally, the raised dot on the controller
should point towards 12 o’clock.
L
xy
R
xy
C
xy
Terminals for connecting the loudspeakers supplied
LS
xy
RS
xy
(front side of the device) (front left white/black, front
right red/black, centre green/black, left surround
blue/black, right surround grey/black).
PHASE 0° 180° Phase switch (on back of device).
Note:
The phase is usually determined by the DVD Micro
System. Depending on the position of the subwoofer
and the distance to the listener, switching over the phase
can improve the quality of the bass playback.
FROM MAIN Connection socket for the subwoofer cable (back of the
UNIT device).
230 V~ Power cord (on back of device).
50/60 Hz
POWER
VOLUME
S
UBWOOFER
0° 180°
FROM MAIN UNIT
L
R
C
LS
RS
PHASE
