CONNECTION AND PREPARATION_______

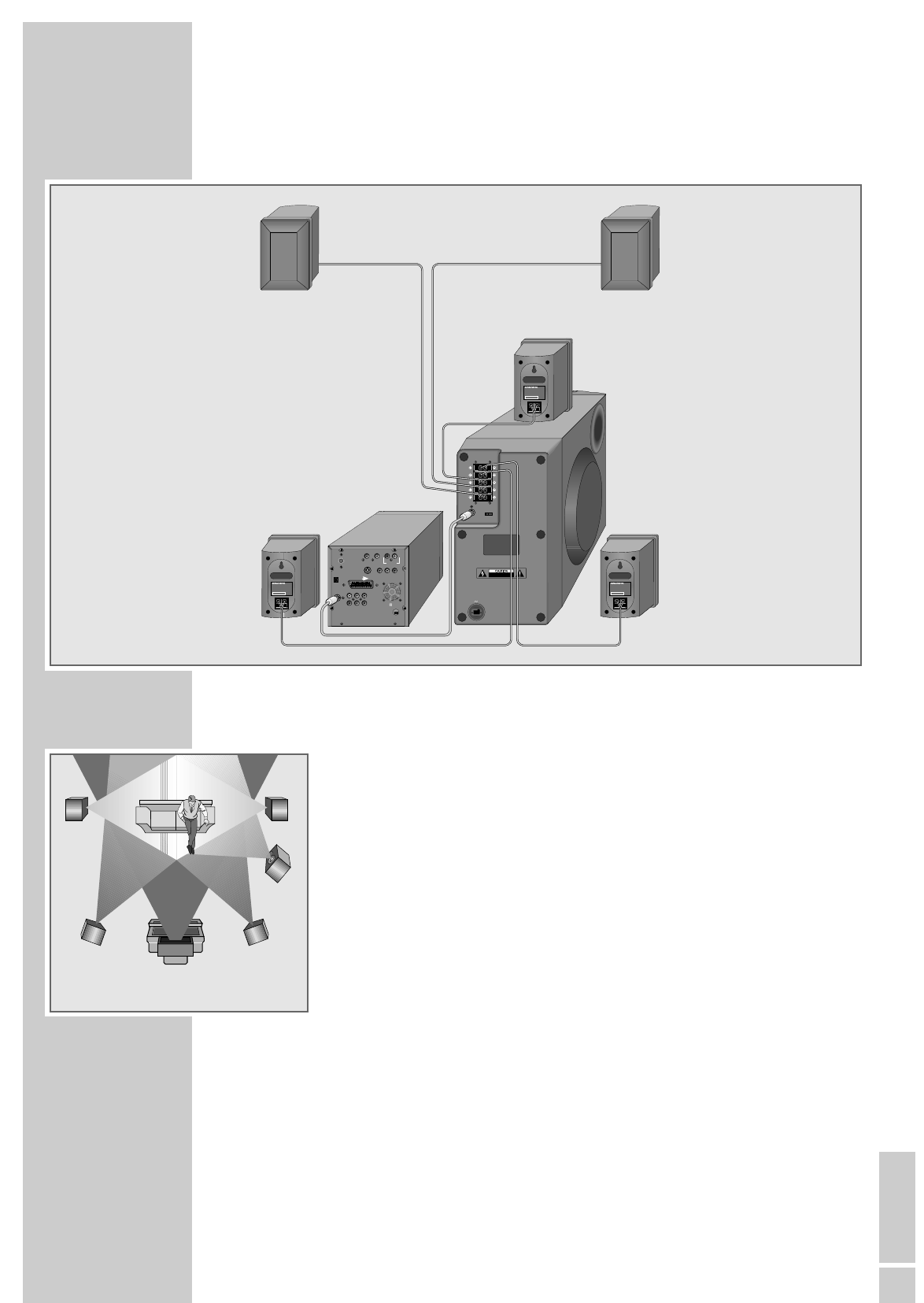

Connection diagram for the loudspeakers
Setting up the loudspeakers
If possible, set up the front loudspeakers in line with the TV set, angled slightly
towards the listener. The listener and the speakers should form an equilateral
triangle. You thus achieve the best stereo effect.
The surround loudspeakers should be angled slightly towards each other at a
sufficient distance to the left and right behind the listener. They should be
positioned at ear-height, even when wall-mounted.
Set up the central loudspeaker at the midpoint between the two front speakers,
for example above or below the TV set. The best height for the centre loud-
speaker is at head height of the seated listener.
To achieve an optimal bass sound, we recommend that you set up the subwoofer
to the left or right of the front loudspeakers, in such a way that the sound crosses
the room diagonally.
When you are in the centre of the room, you may not be able to pick up the
bass tone of the subwoofer sufficiently. This is caused by what are called stand-
ing waves, which occur between parallel walls. In this case, you just have to
position the subwoofer facing the wall at an angle.
Avoid placing the loudspeakers in a corner, because this over-amplifies the bass
tones.
Objects in front of the loudspeakers significantly impair the treble tones and the
stereo effect.
