INDEX

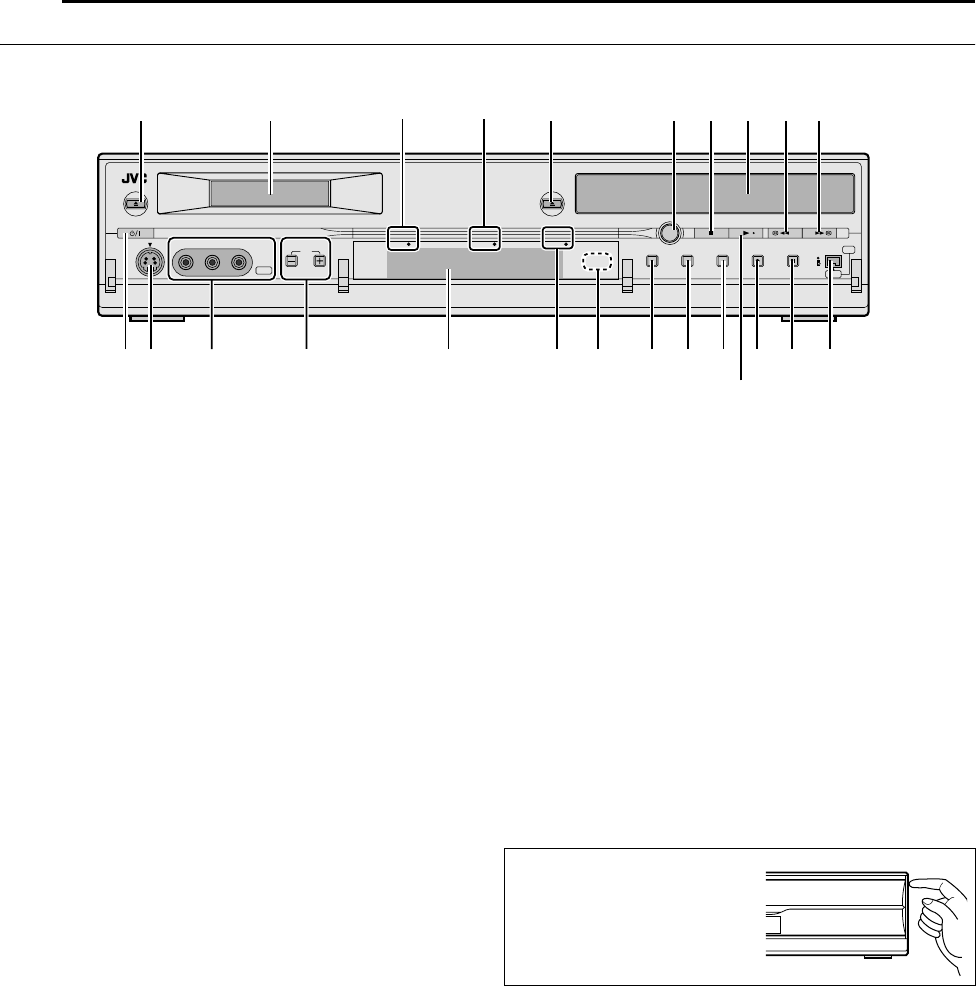

Front View
A Eject Button (M) (DV) A pg. 41
This button functions even if this unit is turned off.
B Mini DV Cassette Loading Slot
C DV Lamp (DV) A pg. 41
DV Recording Lamp (R)
D HDD Lamp (HDD) A pg. 20, 37
HDD Recording Lamp (R) A pg. 37
E Open/Close Button (M ) (DVD) A pg. 10
This button functions even if this unit is turned off.
F DV/HDD/DVD Select Button (DV/HDD/DVD SELECT)
A pg. 24, 37, 41
This button will not function during navigation mode or set up
mode.
G Stop Button (o) A pg. 24, 39
H Disc Tray
I Reverse Search Button (O) (HDD & DVD deck) A pg. 25,
44
Rewind Button (O) (DV deck) A pg. 41, 42
J Forward Search Button (N) (HDD & DVD deck) A pg. 25,
44
Fast Forward Button (N) (DV deck) A pg. 41, 42
K STANDBY/ON Button (A)
L S-video Input Connector [S-VIDEO] A pg. 62
M Video/Audio Input Connectors
[VIDEO/AUDIO ((MONO) L/R)] A pg. 62
N Channel Buttons (CH +/–) A pg. 34, 37
O Front Display Panel A pg. 14
P DVD Lamp (DVD) A pg. 20, 24
DVD Recording Lamp (R) A pg. 34
Q Infrared Beam Receiving Window
R Insert Button (INSERT) A pg. 66
S Audio Dubbing Button (A.DUB) A pg. 65
T Recording Mode Button (REC MODE) A pg. 34, 37
U Play Button (I) A pg. 24, 39
V Record Button (R) A pg. 34, 37
W Pause Button (W) A pg. 24, 39
X DV Input/Output Connector [DV IN/OUT(A*)] A pg. 60
[DV OUT] is available for DV deck only.
* A (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The
A logo is used for products compliant with the
i.Link standard.
STANDBY/ON
DV/HDD/DVD
S-VIDEO VIDEO
(MONO)
L–AUDIO–R
DV– HDD– DVD–
DVIN/ OUT
INSERT
SELECT
A.DUB RECMODE
CH
F–1
DV
K
C
D
FEGHIJBA
LOPQRSTV
U
WXNM
To access covered connectors, pull
and open the cover.
