AV1 IN / OUT
AV2 IN
DECODER VCR TV
SYSTEM CONNECTIONS
Connection To
A Satellite
Receiver

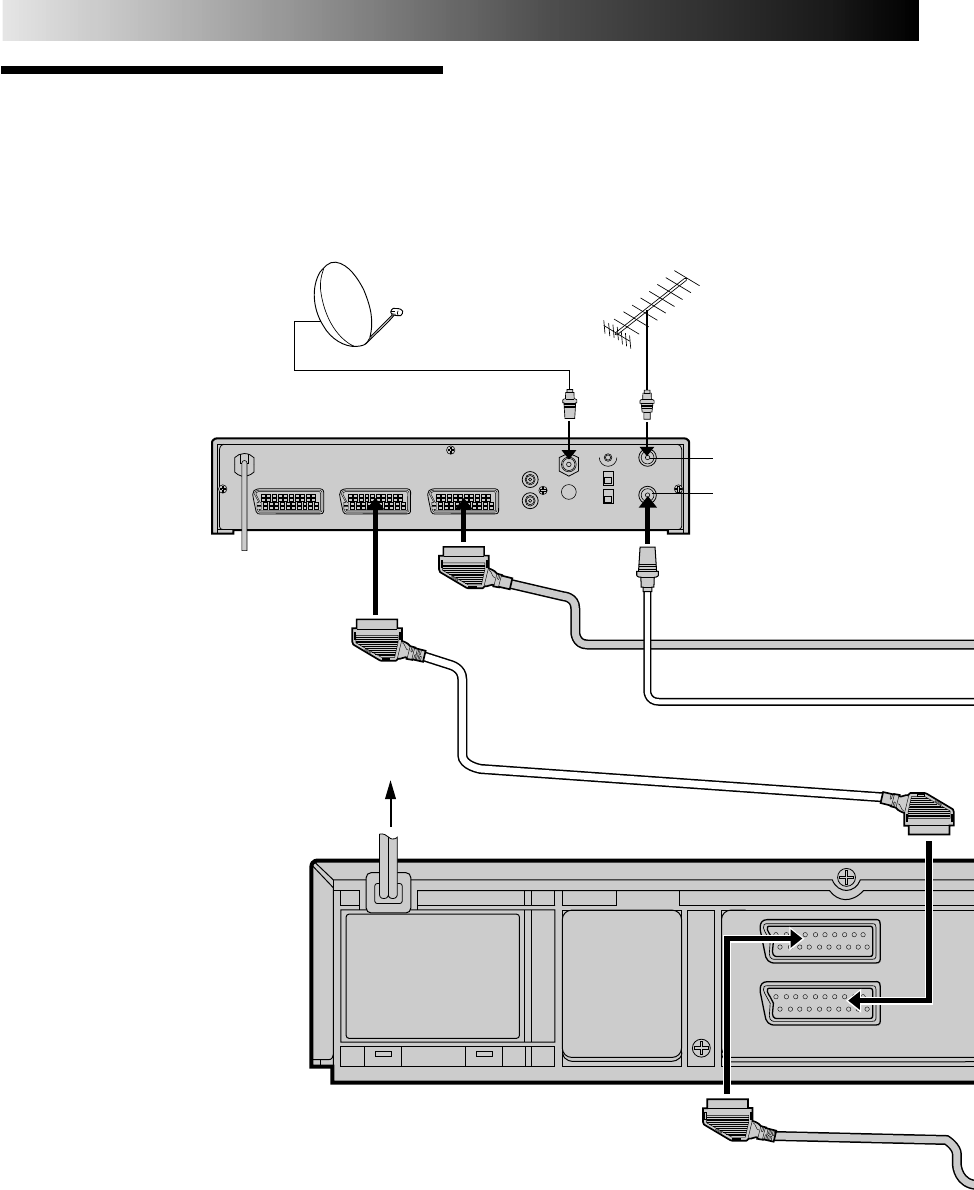

The AV2 IN socket on the rear panel of your recorder allows
simple connection to a satellite receiver.
NOTES:
●
When connecting your recorder to a TV equipped with 21-pin SCART connectors, follow the illustration above using the cables
shown in gray.
●
For details, check your satellite receiver’s instruction manual.
Satellite Receiver
Unit
Outdoor Unit
Aerial
TV Aerial cable
Back of Recorder
ANT. IN
RF OUT
Satellite Cable
Mains outlet
