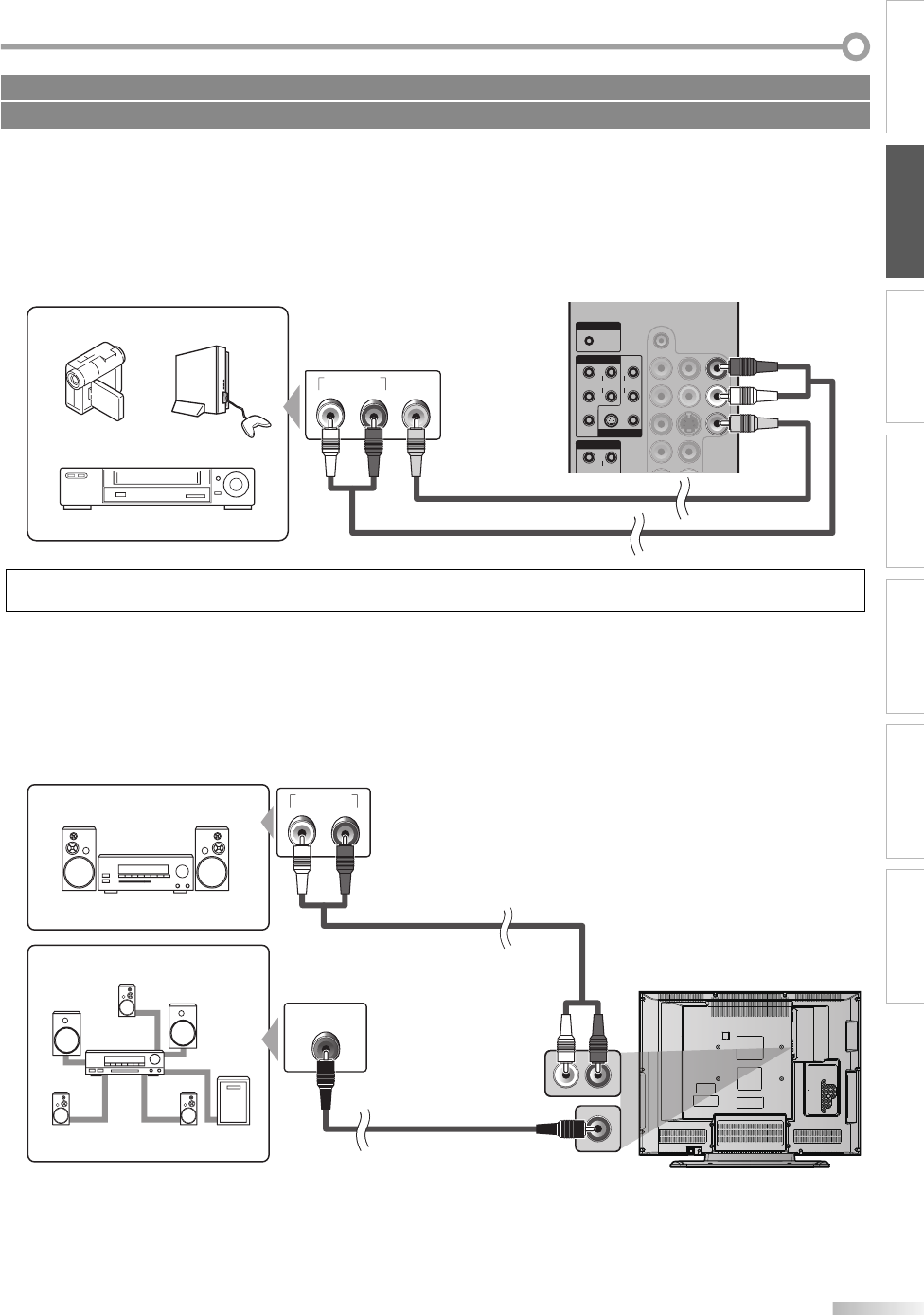

[Video Connection]
Video connection offers standard picture quality for video devices connected to the unit.
If you connect to the unit's VIDEO I video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO I.
If you connect to the unit's VIDEO 2 video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
e.g.)
camcorder
rear of this unit
VCR
AUDIO OUT VIDEO
L RI OUT
RCA video cable
Note:• lfyou connect to the S-video.lack and thevideojack at thesame time, the S-videoconnection will have priority. ]
[Audio Output Connection]
[Digital]
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
[Analog]
If you connect this unit to an external analog audio device, you can enjoy stereo (2 channel) audio.
e.g.)
Stereo system
e.g.)
Dolby Digital decoder
RCA audio cable
COAXIAL IN
To AUDIO OUT
jack
rear of this unit
digital audio
coaxial cable
To DIGITALAUDIO
OUTjack
i!}ii!{{{
ii!ii_!!_
!;b
ii :i: i
ii !!}i_}i
i i ¸
ii115
ix1
ii x!
