[] Basic Connection
Thissectiondescribeshowtoconnectthe unittoanantenna,cable/satellitebox,etc.
I Note:
• Besureyourantennaorotherdeviceisconnectedproperlybeforeplugginginthepowercord.

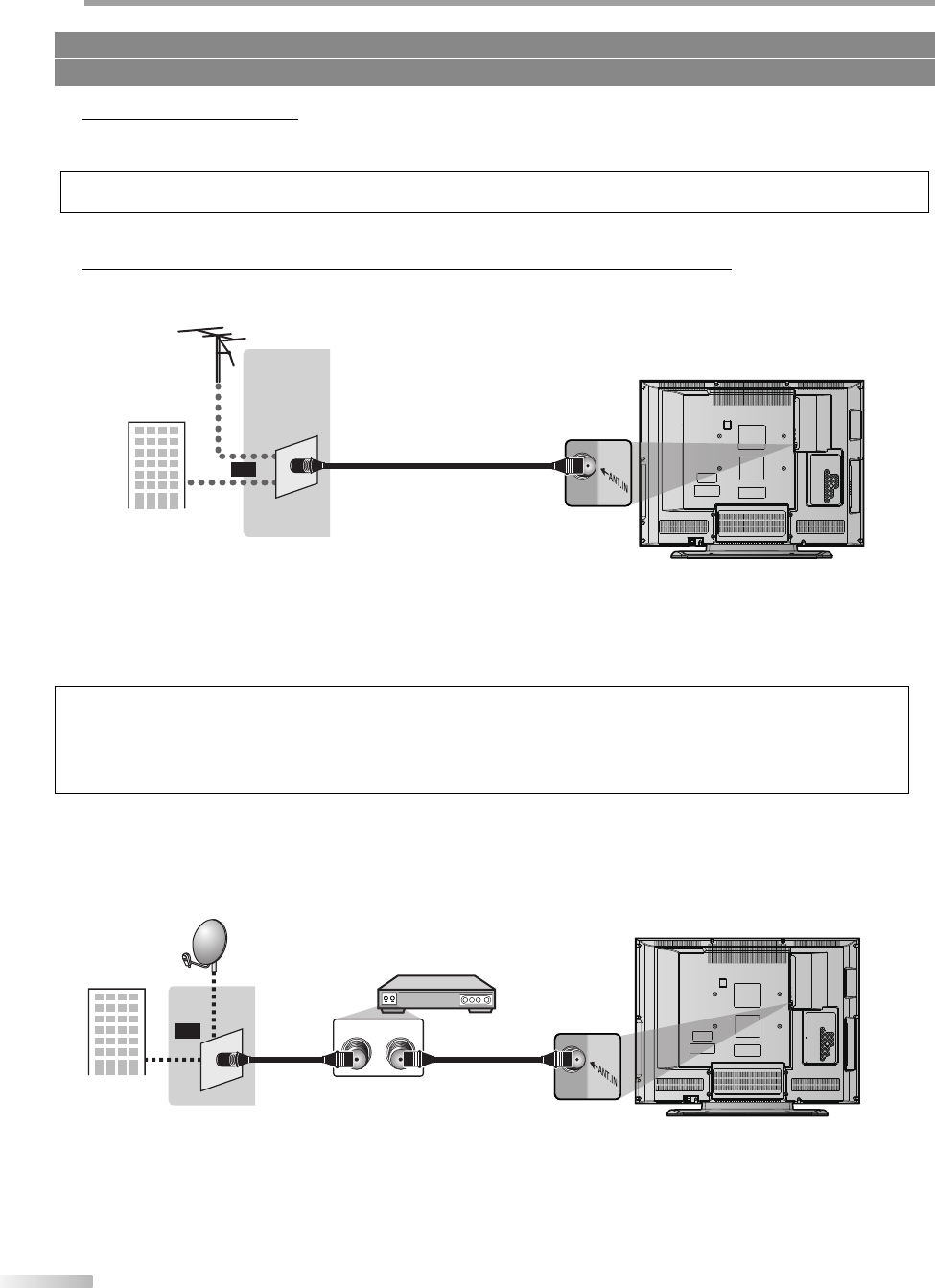

[Antenna Cable Connection]
When connectinq the unit to an antenna or cable TVcompany (without cable/satellite box)
Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.
e.g.)
VHF/UHF'_
antenna _ '
rear of this unit
RF coaxial cable
cableTV
company
Once connections are completed, turn on the unit and begin initial setup.
Channel scanning is necessary for the unit to memorize all available channels in your area.
(Refer to "Initial Setup" on page 13.)
Note:
• Foryour safety and to avoid damage to device,please unplug theRFcoaxial cable from the antenna inputjock before moving the unit.
• lfyou usean antenna to receiveanalog TV,it should also work for DTVreception. Outdoor or attic antennas will be more effective than
settop versions.
• Toeasilyswitch your reception source between antenna and cable,install an antenna selector.
• Ifyou connect to thecable system directly, contact theCATVinstaller.
[Connection to Cable Box or Satellite Box]
Connect the RFcoaxial cable on your home outlet to the input jack of the cable/satellite box.
Use another RF coaxial cable to connect the antenna input jack of the unit to the output jack of the cable/satellite box,
e.g.)
satellite
dish
cable/satellite box
rear of this unit
cable TV RF coaxial cable RF coaxial cable
company
* Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
