Panasonic DMR-E95H DVD Recorder User Manual



7
RQT7392
Getting started
The equipment connections described are examples.
Before connection, turn off all equipment and read the appropriate operating instructions.
Peripheral equipment and optional cables sold separately unless otherwise indicated.
A to X are indexes for Spanish Quick Reference.
75 coaxial cable
The picture and sound signal from this unit does not go through the
75 coaxial cable to the television. Make sure you connect one of
the following terminals on this unit to the television: the AUDIO/
VIDEO OUT terminal, the S-VIDEO OUT terminal or the
COMPONENT VIDEO OUT terminal. If the television has none of
these terminals, consult your local dealer.
Refer to page 9 if the antenna connector doesn’t match.
Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected
by copyright protection systems and the picture will not be shown
correctly on the television.
When connecting to a television with a built in VCR, connect to
the input terminals on the television side, not the VCR side.

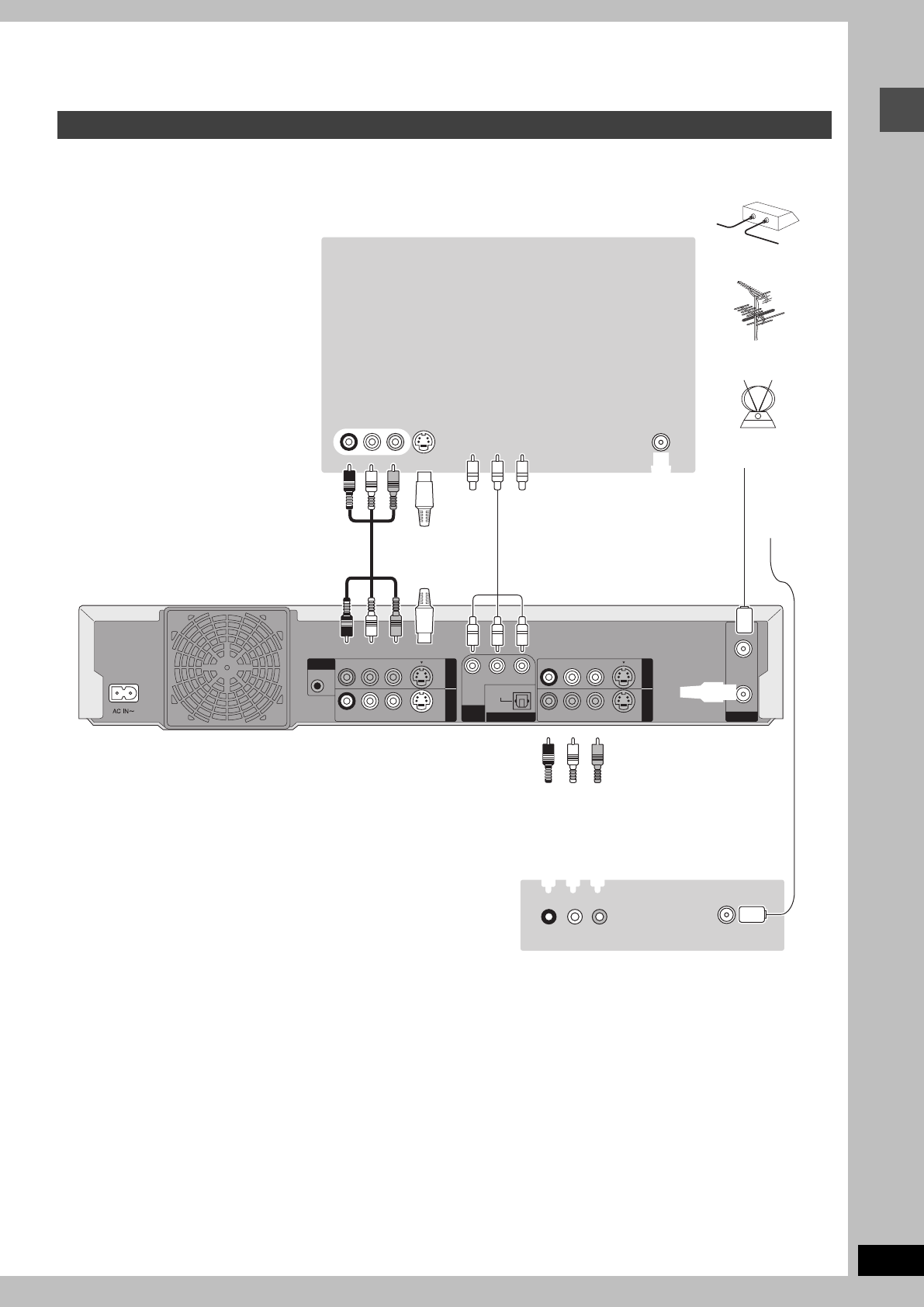

Connecting a television and VCR
YPB PR
R - AUDIO - L
VIDEO
S-VIDEO
R - AUDIO - L
VIDEO
S-VIDEO
OPTICAL
G-LINK
(L1)
(L3)
COMPONENT
VIDEO OUT
(480P/480I)
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
IN1
IN3
R - AUDIO - L
VIDEO
S-VIDEO
R - AUDIO - L
VIDEO
S-VIDEO
OUT1 OUT2
VHF/UHF
RF IN
RF OUT
VHF/UHF
RF IN
VIDEO
OUT
VHF/UHF
RF IN
R L
AUDIO OUT
COMPONENT
VIDEO IN
AUDIO IN
R L
S VIDEO IN
VIDEO IN
