RQT8314
10

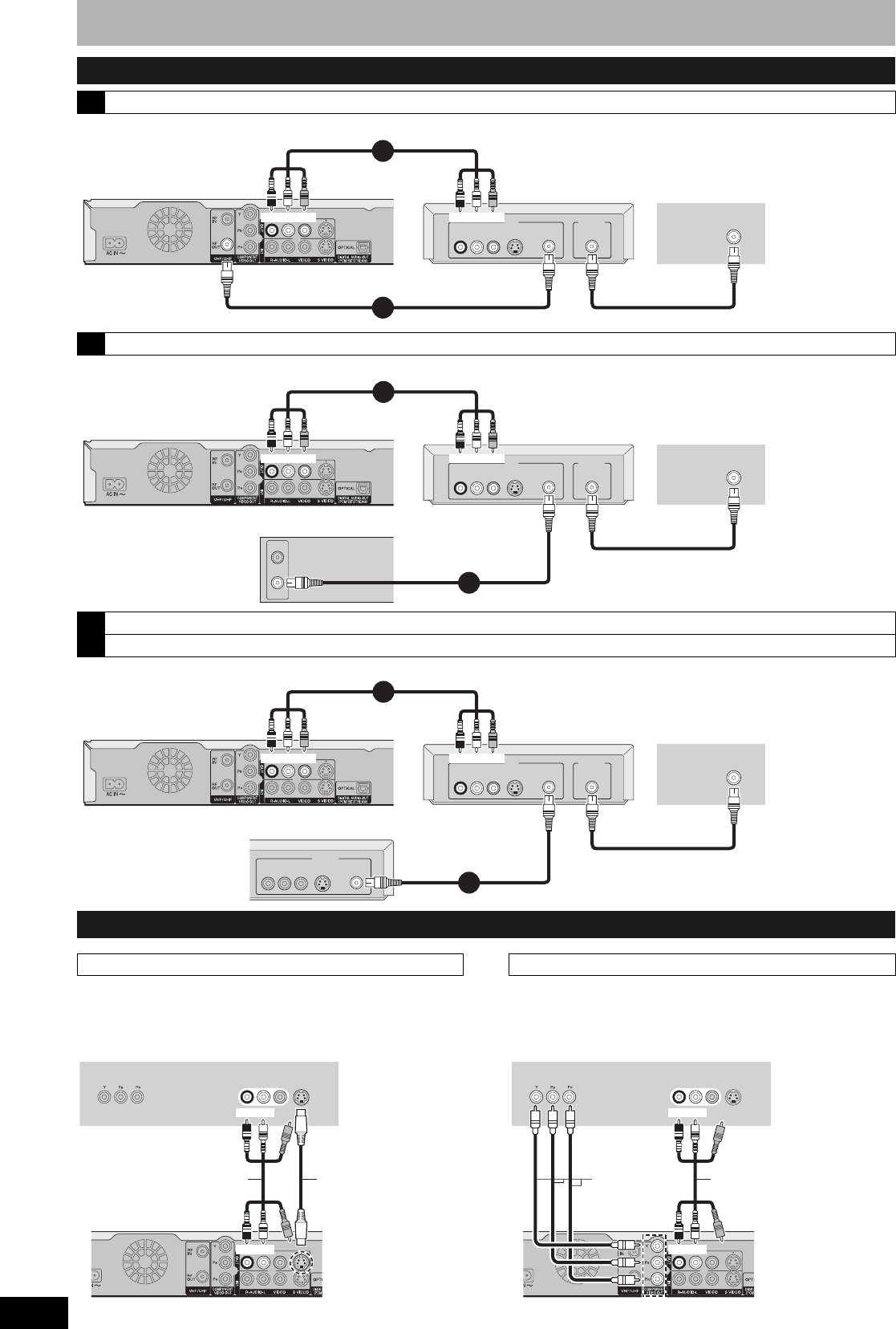

STEP 1 Connection
The S VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the television.)
These terminals can be used for either interlace or progressive
output (Ô page 44) and provide a purer picture than the S VIDEO
OUT terminal.
• Connect to terminals of the same color.
If your television does not have Audio/Video terminals, RF Modulator is necessary
a Connection with a television (Ô page 8 A)
b Connection with a television and video cassette recorder (Ô page 8 B)
c Connection with a television and cable box or satellite receiver (Ô page 9 C)
d Connection with a television, video cassette recorder and cable box or satellite receiver (Ô page 9 D)
To enjoy higher picture quality
VHF/UHF
RF IN
OUT
RF
VIDEO
AUDIO
R L S-VIDEO
IN
RF
3
2
Television
This unit’s rear panel
75 Ω coaxial cable
Red White Yellow
Red White Yellow
75 Ω coaxial cable (Included)
RF Modulator
Audio/video cable (Included)
VHF/UHF
RF IN
OUT
RF
VIDEO
AUDIO
R L S-VIDEO
IN
RF
VHF/UHF
RF IN
VHF/UHF
RF OUT
4
3
Television
Audio/video cable (Included)
This unit’s rear panel
75 Ω coaxial cable
Red White Yellow Red White Yellow
75 Ω coaxial cable
RF Modulator
Video cassette recorder
VHF/UHF
RF IN
OUT
RF
VIDEO
AUDIO
R L S-VIDEO
IN
RF
VIDEO
AUDIO
R L S-VIDEO
OUT
RF
5
4
Television
Audio/video cable (Included)
This unit’s rear panel
75 Ω coaxial cable
Red White Yellow Red White Yellow
75 Ω coaxial cable
RF Modulator
Cable box or Satellite receiver
Connecting to the S VIDEO IN terminal
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Audio/video cable
(Included)
S Video cable
This unit’s
rear panel
Television
Red White
Red White
Connecting to the COMPONENT VIDEO IN terminal
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Audio/video cable
(Included)
This unit’s
rear panel
Television
Red White
Red White
Component
Video cable
