Explanation of Jacks and Cables

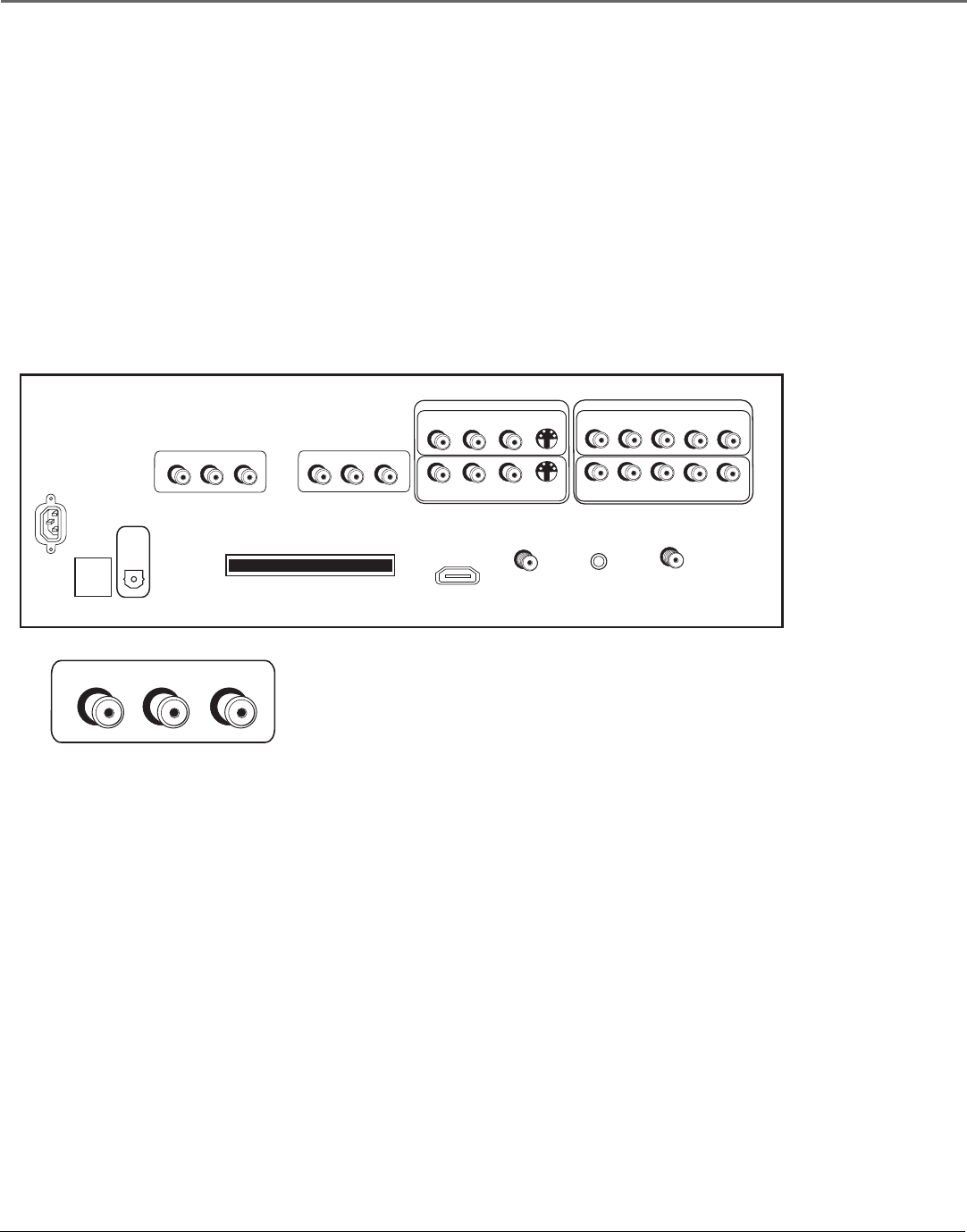

The diagrams below illustrate jacks found on the back of the TV. When connecting cables, be sure
to connect corresponding outputs and inputs (video input into video out, right audio input into
right audio out, etc.).
This section describes the jacks and cables you might use to make connections (cables may
be ordered separately by calling the number on page 66). There are several ways to connect
components to your TV.
Different jacks and cables provide a different level of performance. It’s important to remember
the different degrees of picture quality for comparison. The HDMI/DVI and component jacks
are considered excellent; S-Video is very good; composite jacks are good, while connecting
components to the Antenna or Cable input is fair.
AUDIO /VIDEO OUTPUTS
FIXED/VARIABLE AUDIO OUTPUTS
• SUBWOOFER Provides lower bass frequencies out from the TV to a
powered subwoofer or audio receiver with a subwoofer jack.
Note: Go to Fixed/Variable Output in the Audio Connections menu to set
option to Yes if an external subwoofer is being used.
• R and L Provides right front and right rear mixed sound to the right input,
and left front and left rear mixed sound to the left input.
