20 Runco CX-40HD/CX-46HD Owner’s Operating Manual
PRE
L
IMINAR
Y
AV OUT Connection The Crystal Series LCD Display has stereo audio and Composite video outputs for
connecting to a second VCR or other auxiliary equipment. Connect the AV OUT audio and
video jacks to the audio and video inputs of the VCR or other equipment as shown in
Figure 3-6.
You can route either the main or picture-in-picture (PIP) source signal to the AV output.
For more information, refer to
Monitor Out on page 40.

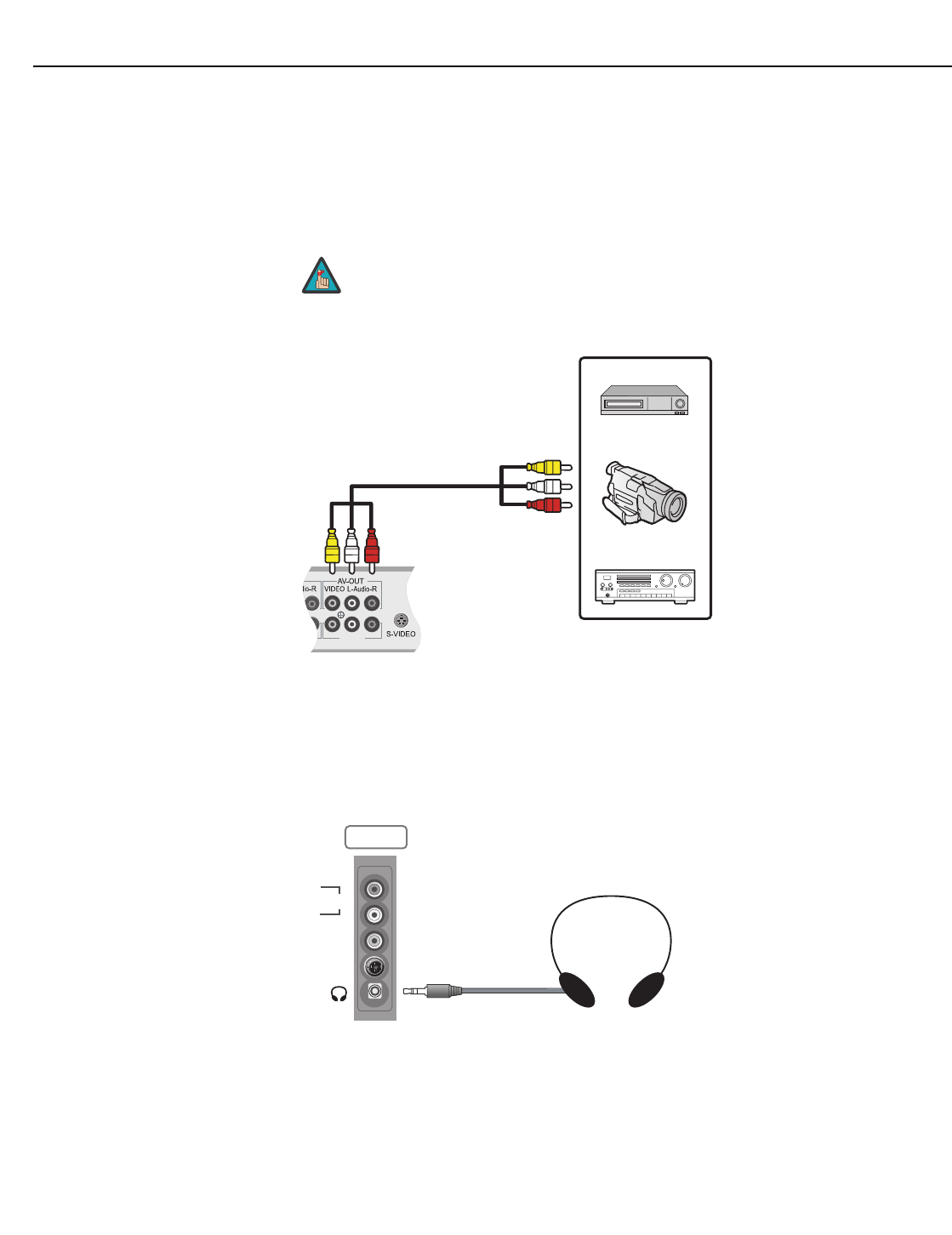

Figure 3-6. AV OUT Connections
Connecting Headphones You can connect a set of headphones to the Crystal Series LCD Display to watch a
program without disturbing others. Connect them to the headphone output located at
INPUT2; see
Figure 3-7.
Figure 3-7. Connecting Headphones
➤
The audio output level is fixed. (The volume and mute controls affect
only the speaker and headphone outputs.)
Note
INPUT1
VCR
Camcorder
A/V Receiver
➤
L
R
S-VIDEO
VIDEO
Audio
INPUT2
