DVR Viewer2 Operation Guide3
The image display pattern can be selected from 4 patterns:
full screen, quad screen, 9 screen, 16 screen using the
toolbar button.
z The display pattern can also be selected from the menu
bar or from the context menu displayed on the screen.
z On the 4/9/16 screen, double clicking on a specific
image will display it on full screen.
Right clicking the Viewer screen will display the context
menu. Clicking the channel you want to display within the
context menu will switch the channel display.
When using the quad screen, the number of the channels
being viewed is displayed in [Channel] of the operating
panel.
Example: Displaying channel number 10 in the top
right screen
(Context Menu)
z The channel being currently displayed is checked on the
specified channel.
z Unchecking a channel results in the images of that
channel not being displayed but at least one image
display is necessary for each screen pattern, therefore
all the images on the screen cannot be turned off.
z The channel number of the image data that is not being
saved is not displayed in the context menu.
z Multiple channels cannot be selected.
z The images of each channel are played back
correspondingly.
Even when switching the displayed channel, if there is no
image data at the current point of playback, no images
will be displayed.

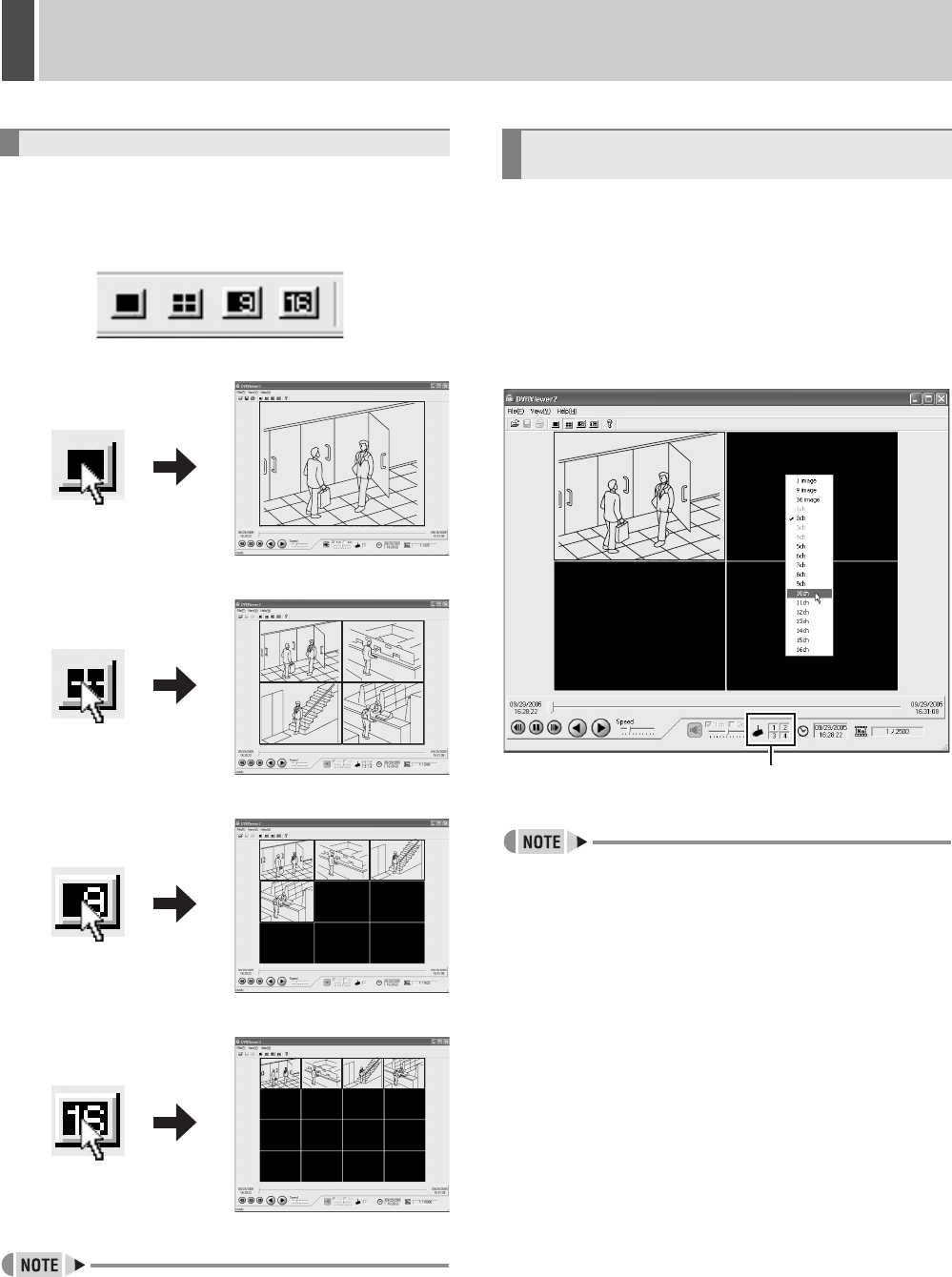

Switching the Display Pattern of the Screen
01 09/29/2005 16:28:24
02 09/29/2005 16:28:23
03 09/29/2005 16:28:23
04 09/29/2005 16:28:23
01 09/29/2005 16:28:23
04 09/29/2005 16:28:24
02 09/29/2005 16:28:24
03 09/29/2005 16:28:24
01 09/29/2005 16:28:23
04 09/29/2005 16:28:24
02 09/29/2005 16:28:24 03 09/29/2005 16:28:24
01 09/29/2005 16:28:24
Toolbar
Full screen
Quad screen
9 screen
16 screen
Selecting the Channel Displayed on the
Screen
01 09/29/2005 16:28:24
Channel display of the displayed image
