6 English

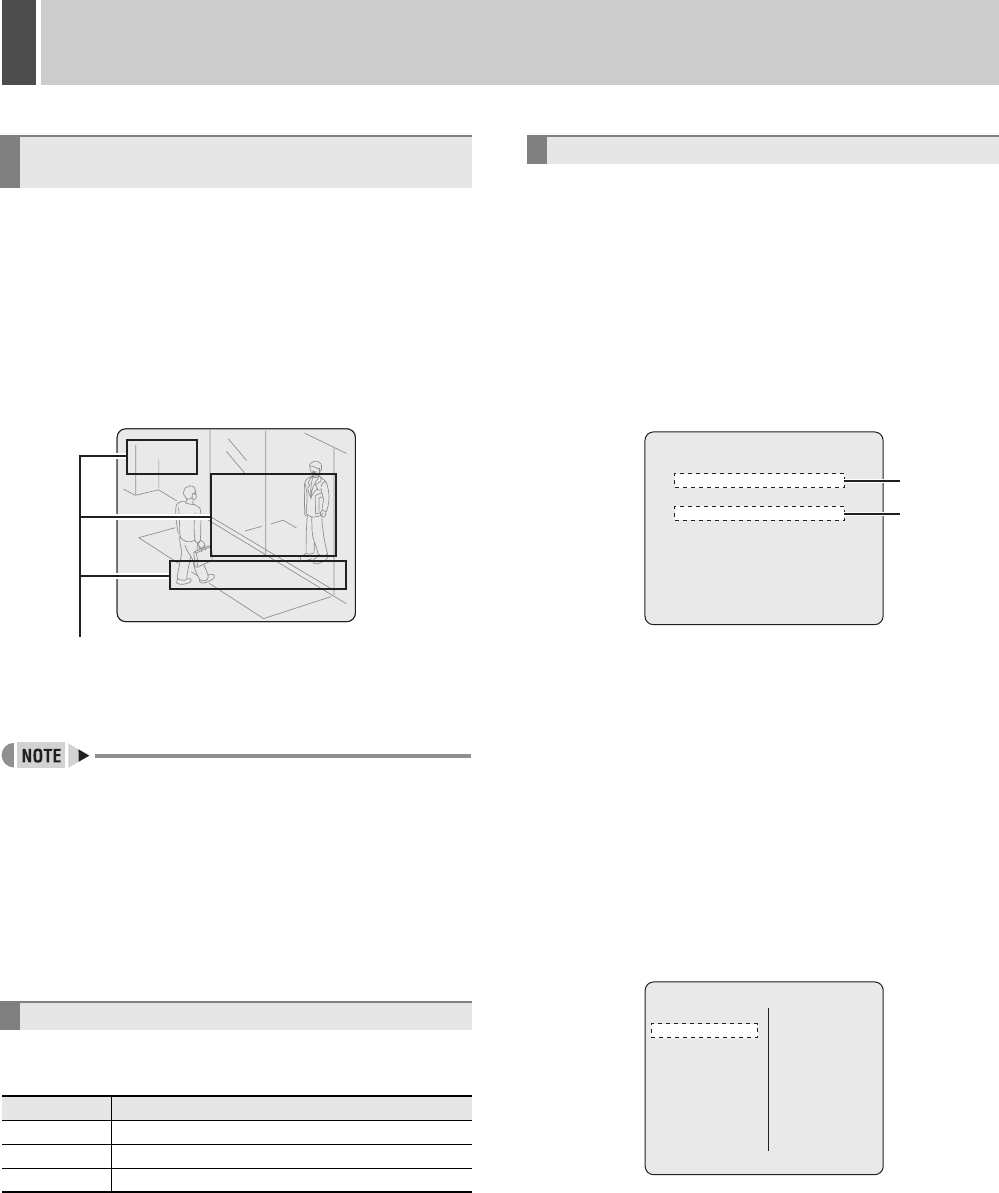

Additions and Changes to Main Unit Operating Procedures1
Now the ROI SET configurations made under “ADVANCED
MENU SET” are directly applied to the <AREA/
SENSITIVITY SET> screen.
On the <ROI SET> screen, set the picture quality in
“STATIC AREA”. Then move the cursor to “AREA/
SENSITIVITY SET”, and turn the shuttle dial clockwise. You
can check the new picture quality as it is applied to the
actual image.
z The <AREA/SENSITIVITY SET> screen displays an
image in the recording mode configured in “EFFECTIVE
REC MODE”. When it is set to “NORMAL/ALARM”, the
screen displays an image in normal recording mode.
z You cannot check the picture quality on the <AREA/
SENSITIVITY SET> screen while recording is in
progress or prealarm recording is in effect.
Now the camera control mechanism supports “AUX”
commands for BBV coaxial control.
The camera control mechanism provides a new feature that
allows you to configure what camera action is triggered by
alarm detection. For example, you can automatically
change the camera lens orientation or initiate an automatic
panning or tour operation in response to alarm detection. To
configure the settings, follow these steps:
1 Display the <CAMERA CONTROL SET>
screen under “ADVANCED MENU SET”.
The following changes have been added to this screen.
1 PROTOCOL/ADDRESS SET
This item has been renamed from “CAMERA CONTROL
SET,” however, the screen operation method remains
the same.
2 ALARM REC TRIGGER SET
This menu has been newly added for configuring alarm
recording trigger settings.
2 Choose “ALARM REC TRIGGER SET”,
and configure the triggered action for
each camera in the “ACTION” column.
Improvements to the Image Quality Checks
for the ROI Settings (P142)
About Support for Coaxial Control (P145)
Command Operation
AUX1 Turns on/off the light.
AUX2 Turns on/off the wiper.
AUX3 Turns on/off the washer.
CH-01 T-1 LEVEL: OFF TIME LAG: OFF
2
1
3
<AREA/SENSITIVITY SET> screen
Your new picture quality setting is applied
to the actual image displayed in the
“STATIC AREA”.
Alarm Recording Trigger Settings (P145)
<CAMERA CONTROL SET>
1. PROTOCOL/ADDRESS SET ->
2. ALARM REC TRIGGER SET ->
1
2
<ALARM REC TRIGGER SET>
CH ACTION CH ACTION
01 OFF 09 ---------
02 PRESET 2 10 ---------
03 PRESET 3 11 ---------
04 PRESET 9 12 ---------
05 PAN 13 ---------
06 TOUR 14 ---------
07 SEQUENCE 15 ---------
08 OFF 16 ---------
