Getting Started
Getting Started
Getting Started
LINE OUT
R–AUDIO 1–L VIDEO
R–AUDIO 2–L
INPUT
AUDIO
R
L
VIDEO
CD
L
R
R–AUDIO 2–L
LINE OUT
R–AUDIO 1–L VIDEO
INPUT
AUDIO
R
L
VIDEO
CD/DVD player
S video cable (supplied)
TV

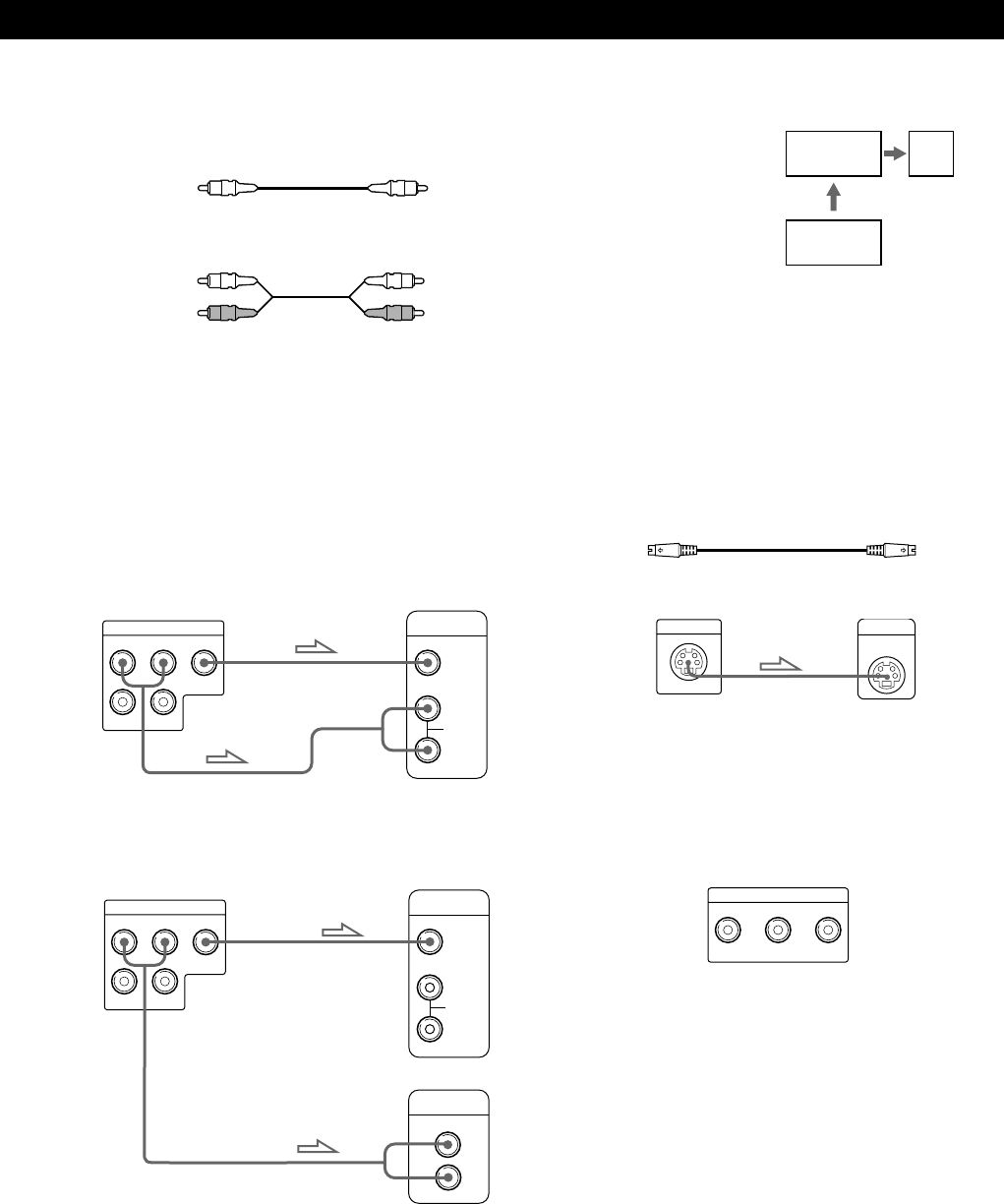

What cords will I need?
Hookups
When connecting the cord, be sure to match the color-
coded cord to the appropriate jacks on the components:
Yellow (video) to Yellow, Red (right) to Red and White
(left) to White. Be sure to make connections firmly to
avoid hum and noise.
pTo listen to the sound through TV speakers
pTo listen to the sound through speakers connected to
an amplifier
Make the same connections when your amplifier conforms
to “Pro Logic.”
Yellow Yellow
Audio connecting cord (supplied) (1)
White
(L)
Red
(R)
Video connecting cord (supplied) (1)
Red
(R)
White
(L)
CD/DVD player
TV
CD/DVD player
Amplifier
TV
S VIDEO OUT
S VIDEO IN
COMPONENT VIDEO OUT
Y B-Y R-Y
Notes
• Do not connect this
player to a video deck.
If you view the pictures
on your TV after
making connections
shown on the right, a
picture noise may
appear.
• Depending on the TV or amplifier, the sound distortion
may occur because the audio output level is high. In this
case, set “AUDIO ATT” in “CUSTOM SETUP” to “ON” in
the menu. For details, see page 46.
z If your TV has an S video input connector
Connect the component via the S VIDEO OUT connector
using the S video cable (supplied) instead of the video
connecting cord. You will get a better picture.
z If you connect the player to a monitor or projector
with component video input connectors that conform
to output signals from the COMPONENT VIDEO OUT
(Y, B-Y, R-Y) connectors on the player
Connect the component via the COMPONENT VIDEO
OUT connectors using three video connecting cords (not
supplied) of the same kind. You will get a better picture.
Note
Refer to the instructions supplied with the component to be
connected.
(Continued)
Video deck
player
CD/DVD
TV
