CONNECTIONS

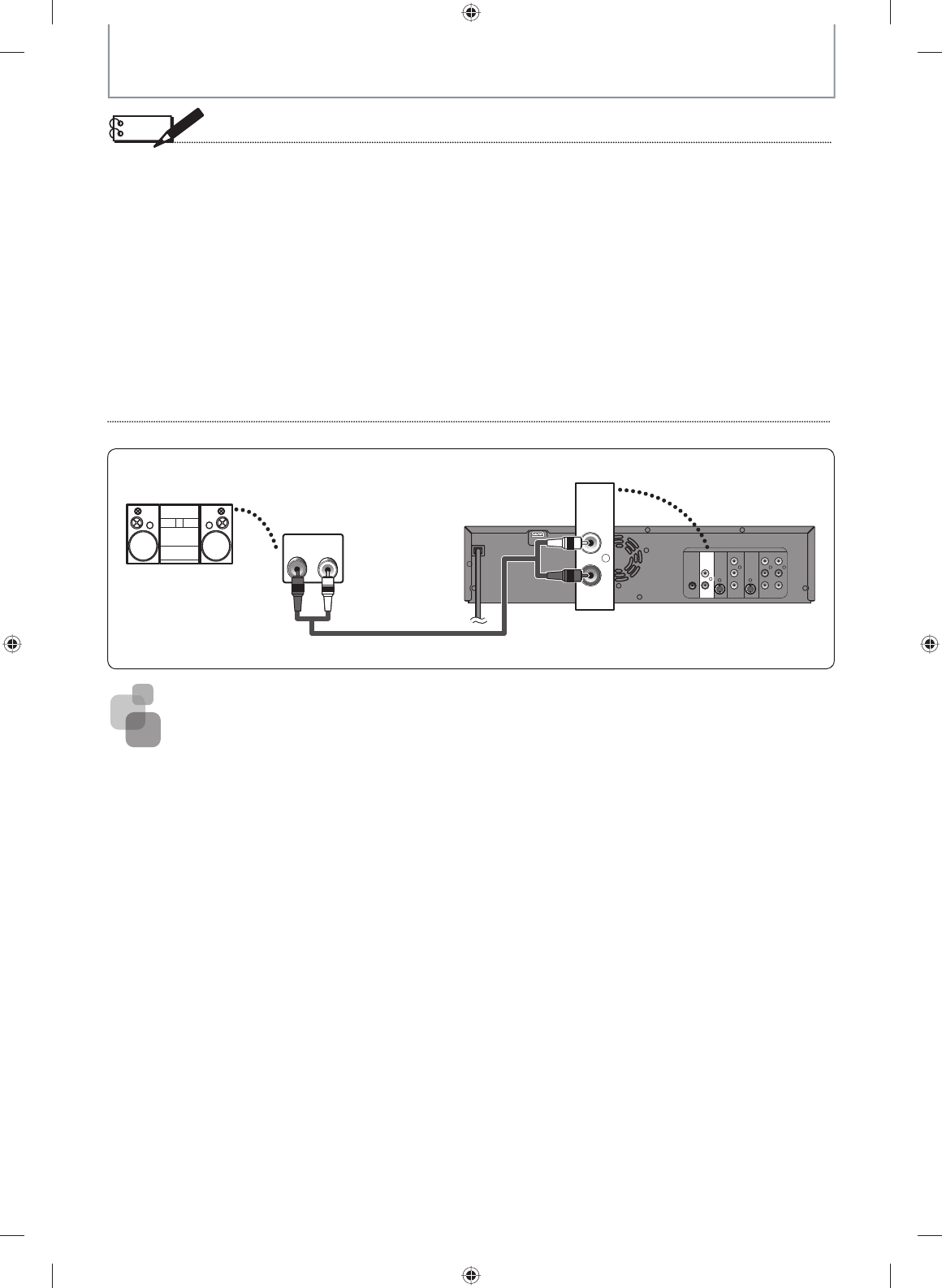

2 Channel Analog Audio Connection
DIGITAL
AUDI O OUT
AUDI O
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
S-VIDEO IN --- AUDIO --- OUT
IN --- VID E O --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
HDMI OUT
AUDIO
OUT
L
R
(L1)
stereo system
analog audio
input jacks
RCA audio cable
AUDIO IN
LR
rear of this unit
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound by an
MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel surround
sound as heard in the movie theaters.
• By connecting this unit to the DTS decoder, you can enjoy Multi-channel Surround System which reproduces the
original sound as truthfully as possible. Multi-channel Surround System is developed by the DTS, Inc.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
• For audio CD and MP3 / WMA files, 2 channel PCM will be output regardless of the “Dolby Digital” setting.
If the connected device is not compatible with HDMI BITSTREAM, audio will be output as PCM even if you select
“Stream” in “Dolby Digital” setting (Refer to page 90).
• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit length)
maybe limited by the device that is connected.
• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In connections
with device such as this unit, audio signals are not output from the HDMI output connector.
• If the connected equipment is not compatible with HDMI BITSTREAM, DTS sound will not be output.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
