VIZIO VU42L FHDTV10A User Manual
Version 12/17/2007 11
www.VIZIO.com

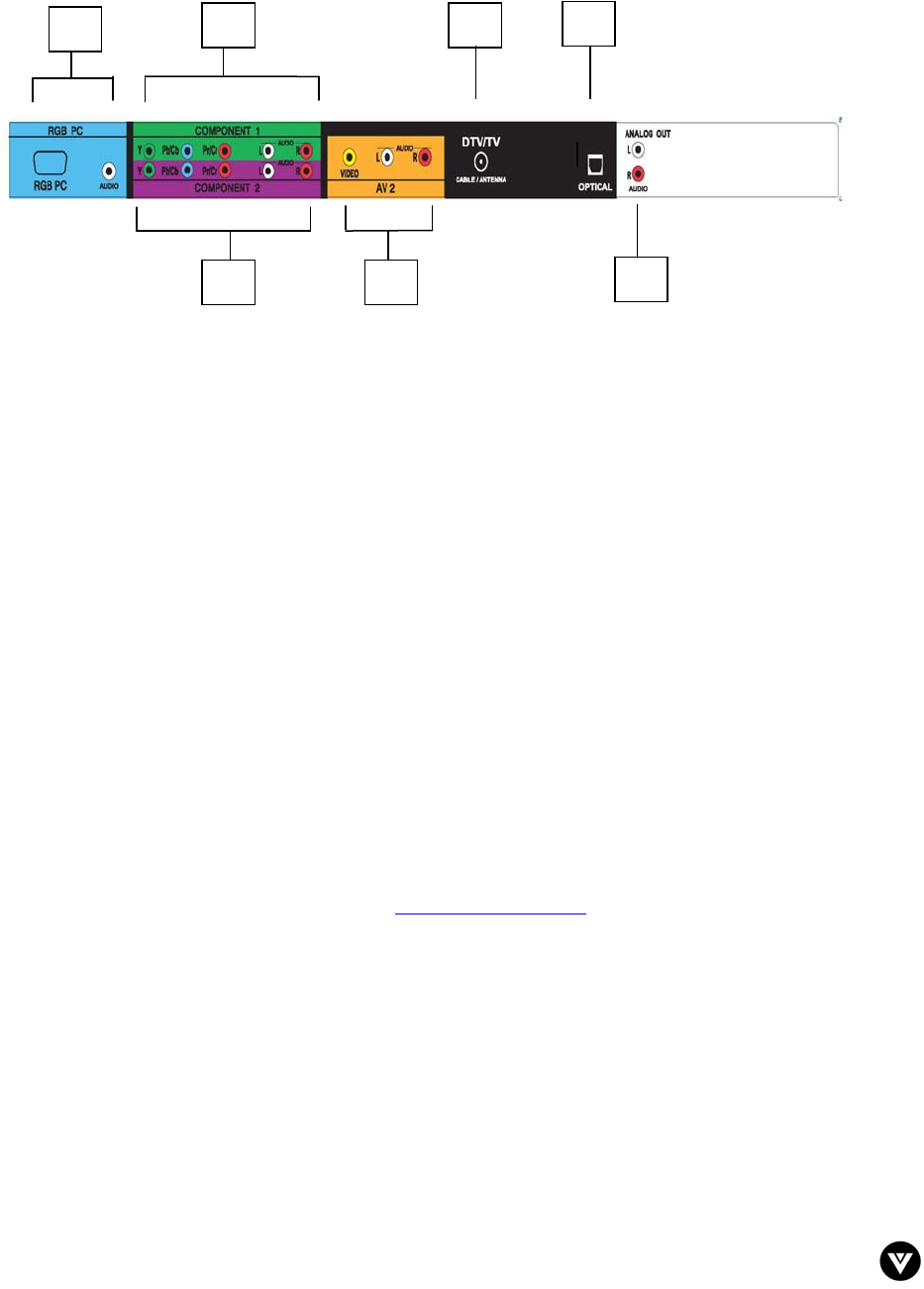

Right Portion
5. RGB PC – Connect the video and audio from a computer here. The blue color band on the
rear of the TV indicates this connection.
6. COMPONENT 1 (YPb/CbPr/Cr with Audio L/R) – Connect the primary source for
component video devices such as a DVD Player or set top box here. From left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio
inputs. The green color band on the rear of the TV indicates this connection.
7. COMPONENT 2 (YPb/CbPr/Cr with Audio L/R) – Connect the secondary source for
component video devices such as a DVD Player or set top box here. From left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio
inputs. The purple color band on the rear of the TV indicates this connection.
8. AV2 In – Connect the secondary source for composite video devices, such as a VCR or
video game. Use the white and red connectors to connect the external audio from the same
source. The orange color band on the rear of the TV indicates this connection.
9. DTV/TV – Connect to an antenna or digital cable (out-of-the-wall, not from Cable Box) for
Digital TV.*
10. OPTICAL DIGITAL AUDIO OUT – When the DTV input is selected for viewing, the digital
audio associated with digital programming will be available on this SPDIF Optical connector
for connection to your home theatre system. The black color band on the rear of the TV
indicates this connection.
11. Audio Out – Connect the audio from the LCD HDTV to an external device, such as a home
theatre system, external amplifier or stereo. Speakers cannot be connected directly to here.
The white color band on the rear of the TV indicates this connection.
* For digital TV stations in your area visit www.antennaweb.org
5
6
7 8
10
9
12
