2.6 Connecting an external Receiver/Amp

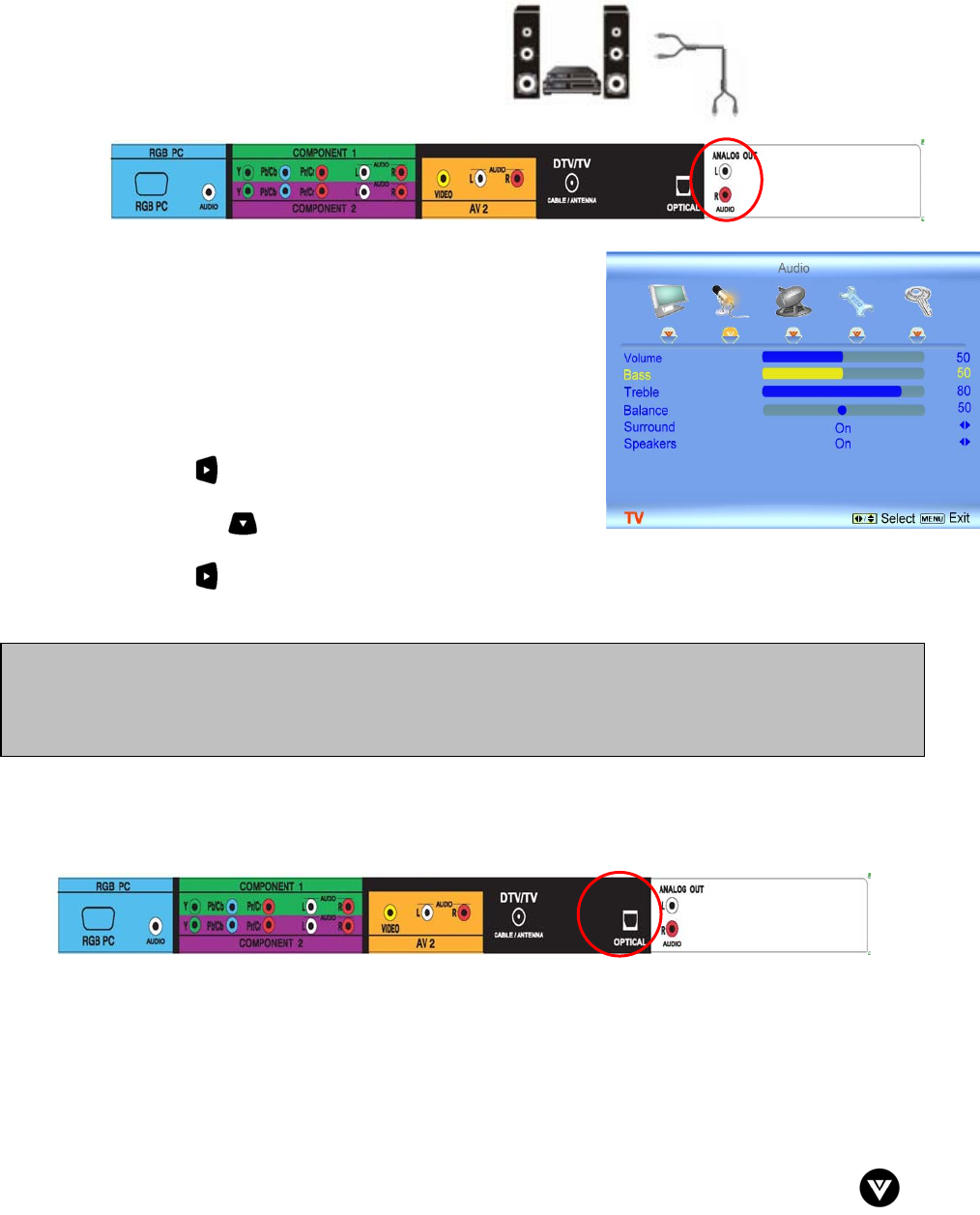

1. Turn off the power to the LCD HDTV and Receiver/Amp.
2. Using an audio cable (white and red connectors),
connect the cable to the audio input connectors on the
Receiver/Amp and connect the other end to the
ANALOG OUT (white area) audio connectors at the rear
of the LCD HDTV.
3. Turn on the power to the LCD HDTV and Receiver/Amp.
4. Then press the MENU button on the remote control to
open the On-Screen Display (OSD) menu.
5. Press the on the remote control to select the Audio
menu.
6. Press the on the remote control to select
SPEAKERS.
7. Press the on the remote control to select OFF so that the sound from the LCD HDTV will
now be routed through your Receiver/Amp system.
Optical Output of Audio received with HD Programs
If your sound system has a SPDIF (optical) digital audio input you can connect it to the optical
DIGITAL AUDIO OUT (black area) at the rear of the LCD HDTV. This is active when receiving digital
audio with the programs from the DTV/TV CABLE/ANTENNA input.
Note:
a) Refer to your Receiver/Amp user manual to select the corresponding audio input.
b) The audio output is not amplified and cannot be connected directly to external speakers.
