Connecting a VCR
CONNECTING A VCR
Use this section to connect your VCR and set up the receiver for VCR Timers.
VCR Connections

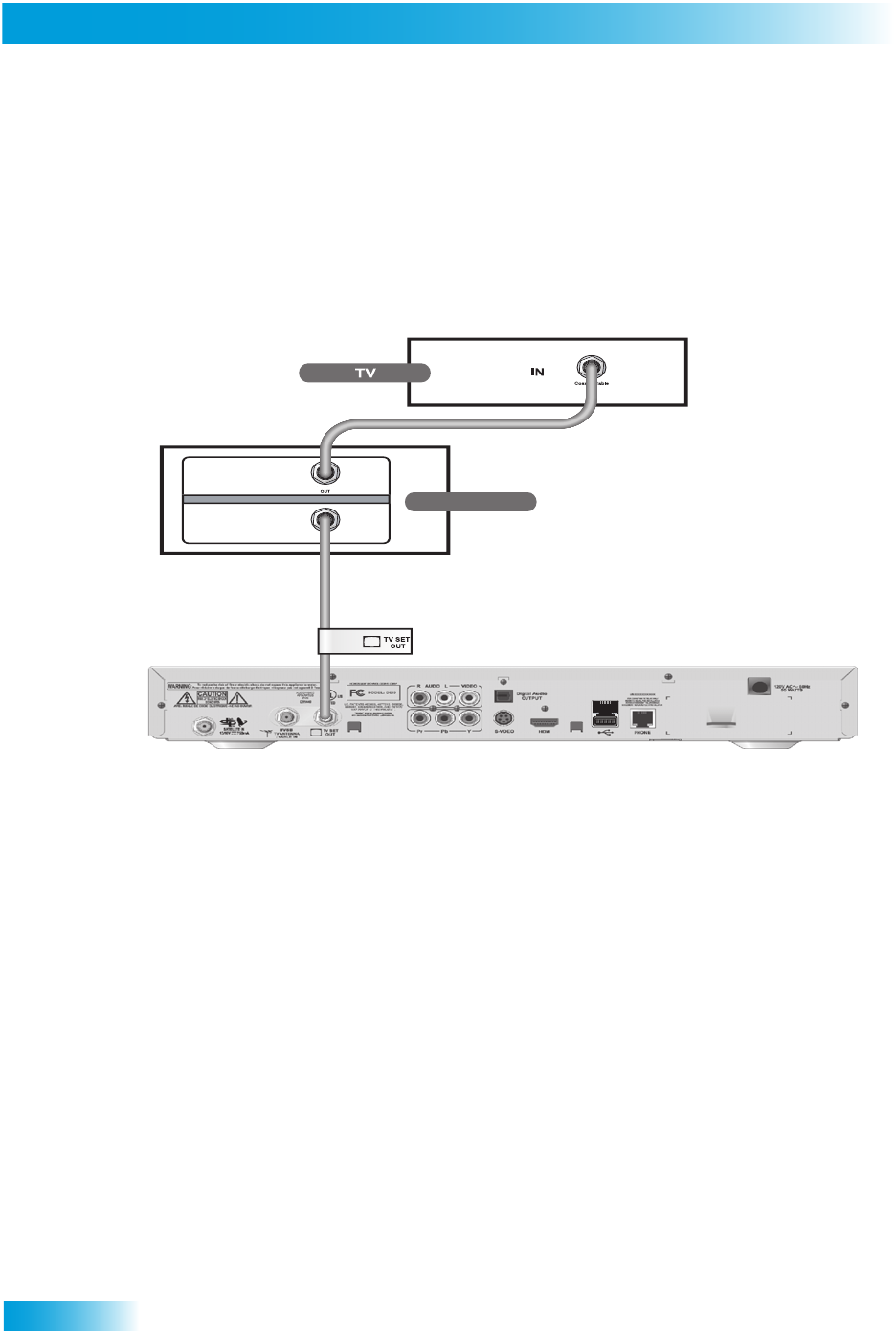

The diagram below provides example of how to connect VCRs to your satellite TV system.
1 Connect the tuner input of the VCR to the receiver TV SET OUT.
2 Peel off the white sticker and affix it to the cable close to where it connect to the TV SET
OUT connection on the back of the receiver. The sticker is in the front cover of this guide.
3 Connect a coaxial cable from the output on the VCR to the TV’s tuner port.
4 Plug in and turn on the VCR and TV.
5 Tune the VCR and TV to the channel that you use to watch satellite TV programming (for
example, channel 3).
IN
OUT
VCR
Coaxial Cable
IN
Coaxial Cable
