Making connections
11
DX-24LD230A12

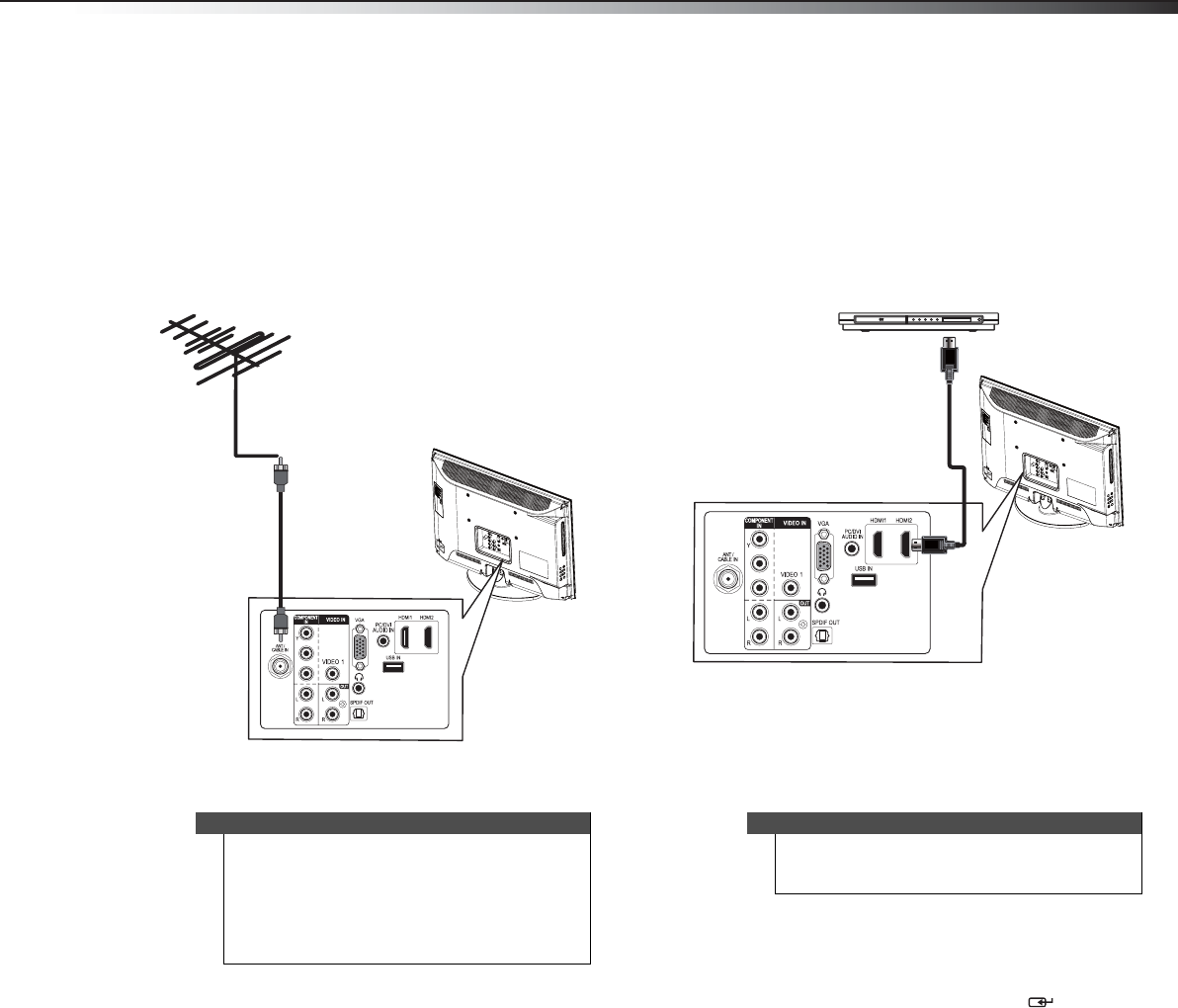

Connecting an antenna or cable TV (no
box)
To connect an antenna or cable TV (no box):
1 Turn off your TV/DVD combo and all connected
equipment.
2 Connect a coaxial cable to the ANT/CABLE IN jack
on the back of your TV/DVD combo and to the
antenna or cable TV wall jack.
3 Turn on your TV/DVD combo, then go through the
setup wizard described on page 16.
Connecting an HDMI or DVI device
To connect an HDMI or DVI device:
1 Make sure that your TV/DVD combo’s power cord is
unplugged and the HDMI or DVI device is turned off.
2 Connect an HDMI cable (not provided) to the HDMI1
or HDMI2 jack on the back of your TV/DVD combo
and to the HDMI OUT jack on the HDMI or DVI
device.
3 If you are connecting a DVI device, connect an audio
cable with stereo mini plug (not provided) to the
PC/DVI AUDIO IN jack on the back of your TV/DVD
combo and to the AUDIO OUT jack on the DVI
device.
4 Reconnect the power cord to your TV/DVD combo.
To play from an HDMI or DVI device:
1 Turn on your TV/DVD combo, then press INPUT to
open the INPUT SOURCE list.
2 Press INPUT repeatedly, or press or to select
HDMI 1 or HDMI 2, then press ENTER/.
3 Turn on the HDMI or DVI device.
Notes
• Use a coaxial cable to eliminate interference and
noise from radio waves.
• Do not bundle the coaxial cable with the power
cord or other cables.
• If the antenna is not installed correctly, contact
qualified service personnel to correct the
problem.
P
B
P
R
Back of TV/DVD combo
Coaxial cable
Note
A DVI device can only be connected to the HDMI1
jack. If you connect a DVI device to the HDMI2 jack,
you will not hear sound.
P
B
P
R
Back of TV/DVD combo
HDMI or DVI device
HDMI cable
