Installing the stand or wall-mount bracketDX-24LD230A12
Installing the stand or
wall-mount bracket

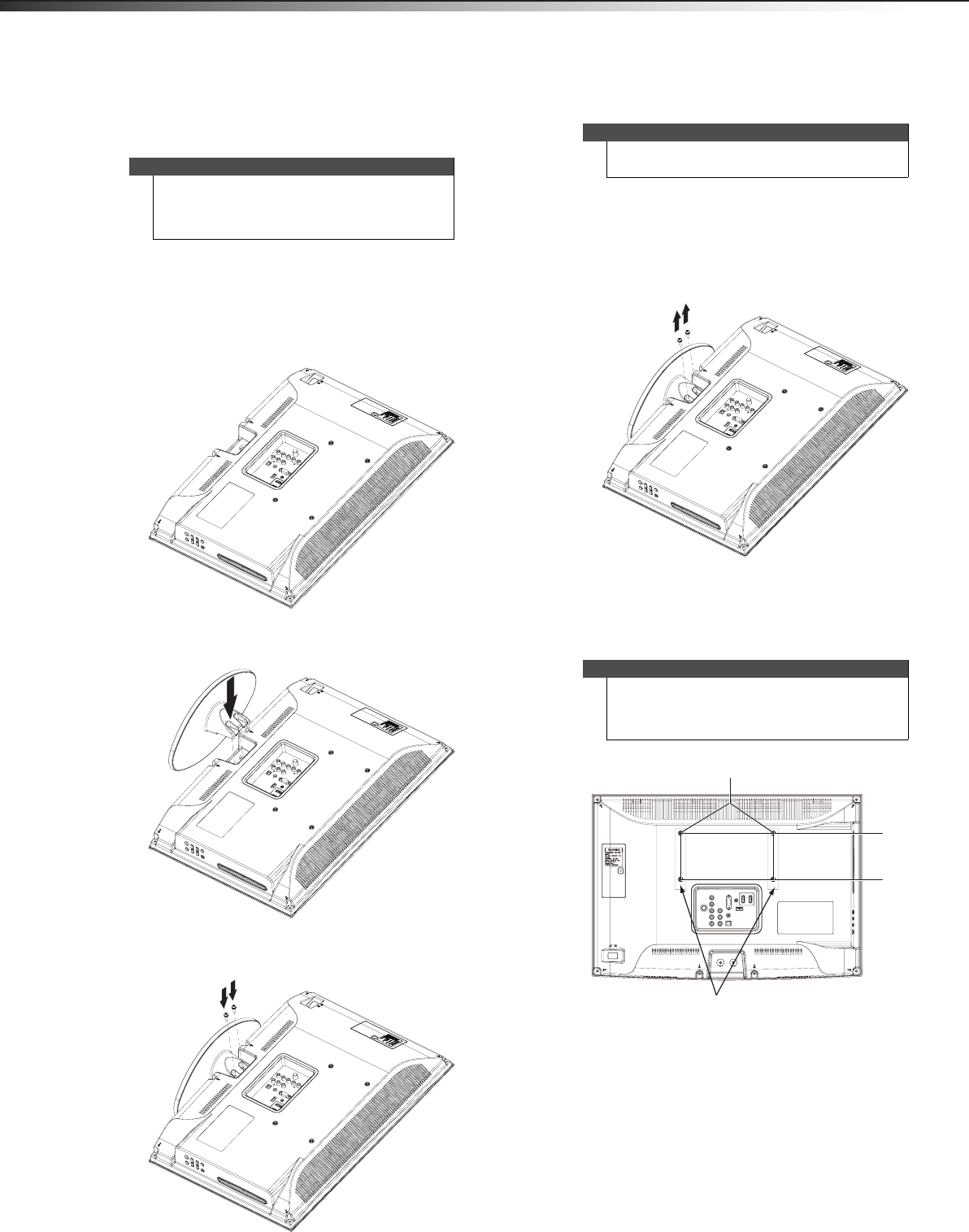

Installing the stand
To install the stand:
1 Carefully place your TV/DVD combo screen
face-down on a cushioned, clean surface to protect
the screen from damage and scratches.
2 Align the screw holes on the stand with the holes on
the bottom edge of the TV/DVD combo.
3 Secure the stand to the TV/DVD combo with the two
screws (provided).
Installing a wall-mount bracket
To attach your TV/DVD combo to a wall-mount bracket:
1 Carefully place your TV/DVD combo screen
face-down on a cushioned, clean surface to protect
the screen from damage and scratches.
2 Remove the two screws that secure the stand to the
TV/DVD combo, then remove the stand.
3 Attach the wall-mount bracket to your TV/DVD
combo using the mounting holes on the back of
your TV/DVD combo. See the instructions that came
with the wall-mount bracket for information about
how to correctly hang your TV/DVD combo.
Notes
• If you plan to wall-mount your TV/DVD combo,
do not install the stand.
• Store the stand and stand screws in case you
decide to use the stand in the future.
Warning
This apparatus is intended to be supported by a UL
Listed wall mount bracket.
Note
The length of the wall-mount screws vary depending
on the wall-mount bracket you purchased. See the
instructions that came with the wall-mount bracket
for screw lengths.
7.87 in. (200 mm)
3.94 in. (100 mm)
Wall mount brackets
