Model NGA2000 NDIR
ANALYZER MODULE GUIDES
PIN SEATS
DISENGAGED FRONT PANEL
SECTION 2
INSTALLATION
WARNING.
Before starting to install this equipment,
read the “Essential Instructions” on the
inside cover and the Safety Summary
beginning on page P-2. Failure to follow the
safety instructions could result in serious
injury or death.
2-1 UNPACKING
If the NDIR Analyzer Module is received as a
separate unit, carefully examine the shipping
carton and contents for signs of damage.
Immediately notify the shipping carrier if the
carton or contents is damaged. Retain the
carton and packing material until all components
associated with the Analyzer Module are
operational.
2-2 ASSEMBLY
If the NDIR Analyzer Module requires assembly
with other components (e.g., the Platform and
associated I/O Modules), do so at this time.
Following the guides on the bottom left and
bottom center of the Platform, carefully slide the
Analyzer Module halfway into place.
CAUTION.
HAND INJURY HAZARD
Do not place hands or fingers in Platform
front handles when the front panel is open.
Dropping front panel while hand or fingers
are inside either handle can cause serious
injury.
Lift the spring-loaded pins on the front of the
Analyzer Module, and carefully slide it the rest
of the distance. Secure the module in position
by releasing the pins, which seat in the available
holes in the bottom of the case (see Figure 2-1,
below). If the module and Platform are difficult
to assemble, remove the module, ensure the
top cover of the module is firmly seated on the
hold-down screws, and repeat the assembly
procedure.
Install I/O Module(s) according to guidelines in
the I/O manual. After startup and calibration
have been performed, secure the front panel
with the six screws provided.

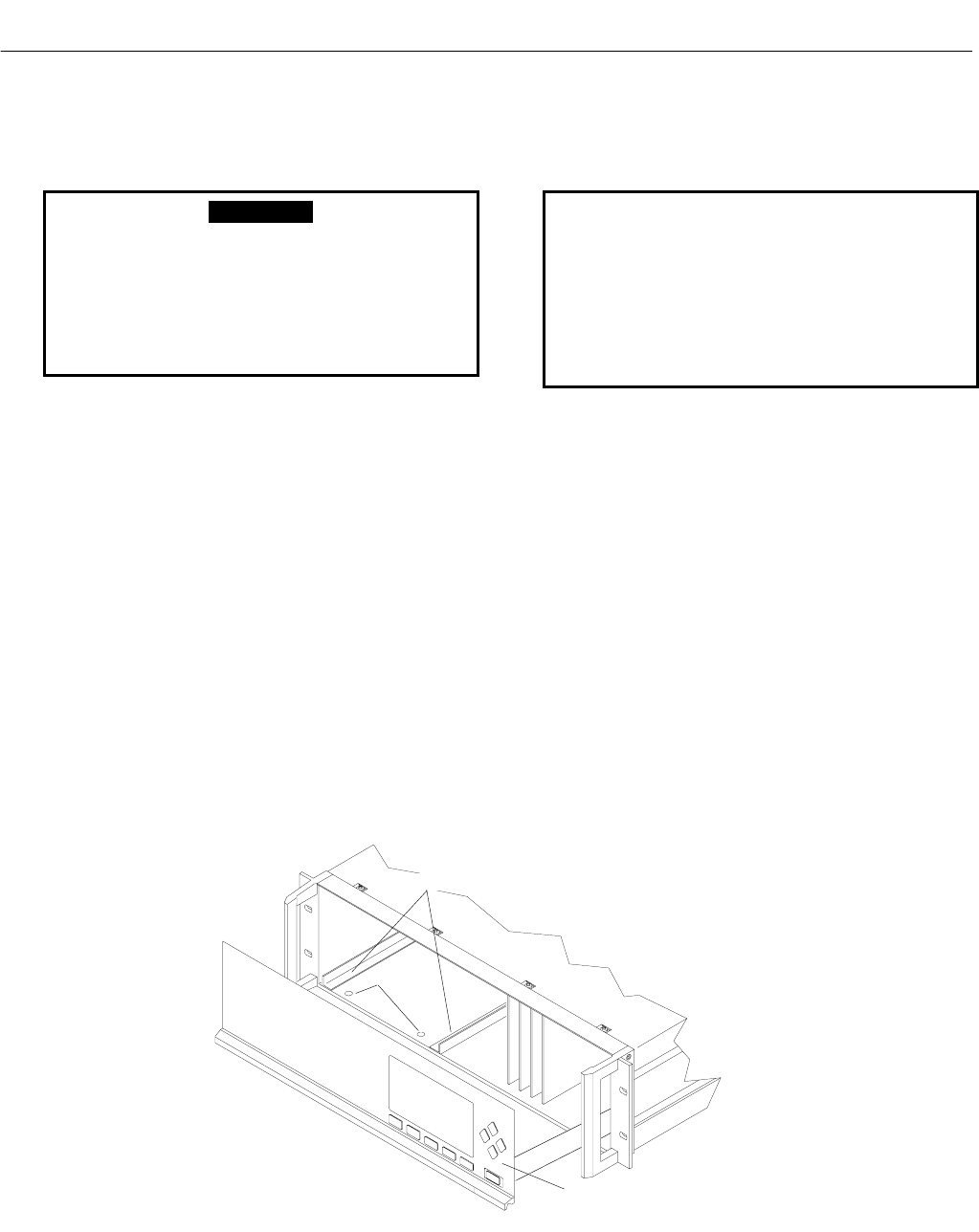

Figure 2-1. Analyzer Module Installation into Instrument Platform
