2 - Quick Tour
REAR PANEL

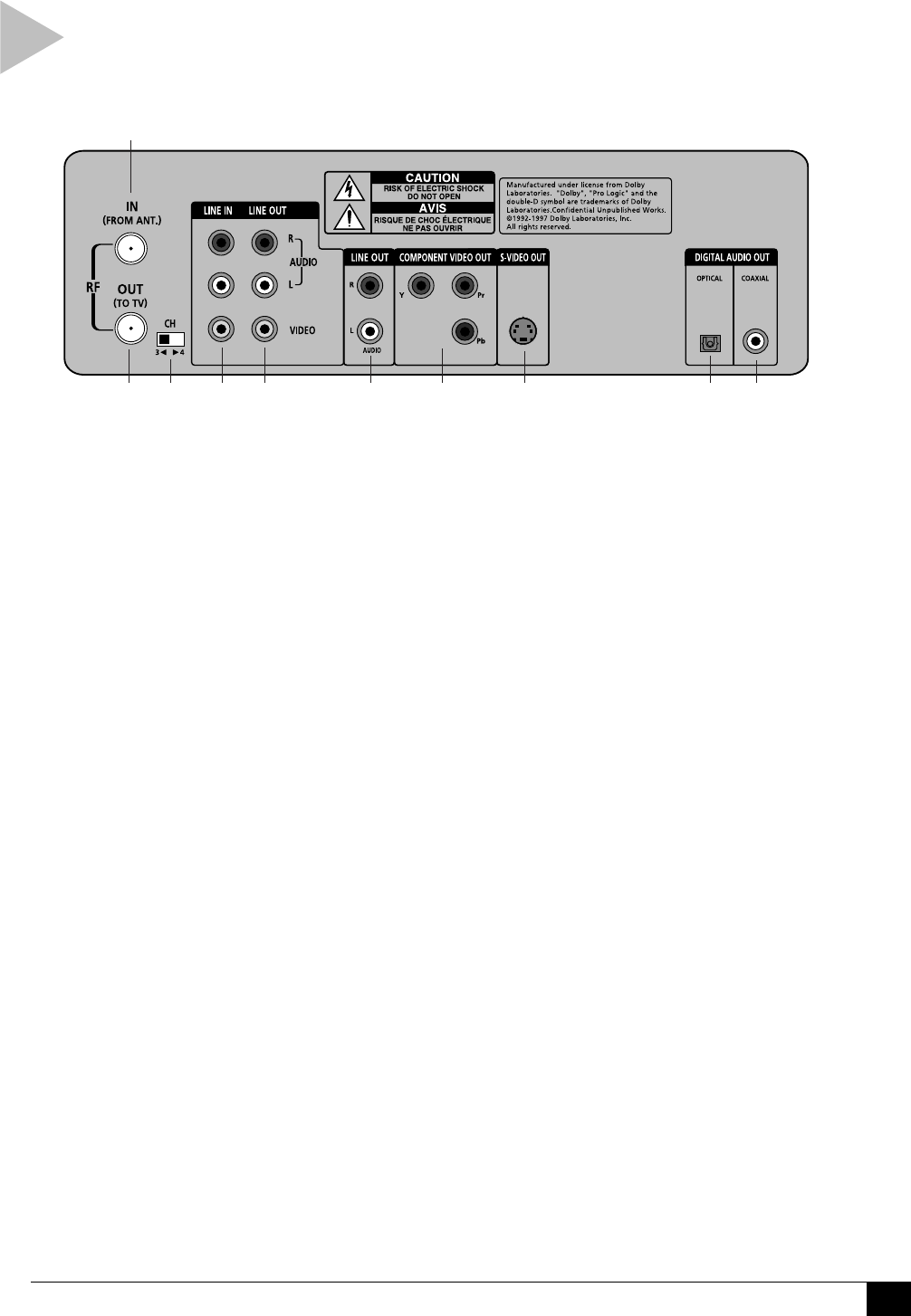

The following is an overview of the
DVD+VCR rear panel.
1
23 5
4678 910
1 RF ANTENNA INPUT
Connect to your antenna, cable TV, or cable
box with an RF coaxial cable.
2 RF OUT TO TV
Connect to your television with an RF coaxial
cable.
3 VCR TUNER CHANNEL SWITCH
Set to channel 3 or 4 (whichever channel
your television is tuned to).
4 LINE 2 INPUT
Connect from the outputs of an external
audio/video device.
5 LINE OUT TO TV (COMPOSITE)
Connect to your television with standard
RCA cables. Use these audio outputs ONLY
with the composite video output (yellow).
6 LINE OUT TO TV (S-VIDEO OR
COMPONENT)
Connect to your television with standard
RCA cables. Use these audio outputs ONLY
with the Component or S-Video outputs.
7 COMPONENT VIDEO OUT
Connect to your television with component
video cables (red, green, and blue). For
audio, use the Line Out or Digital Audio Out
(optical or coaxial).
8 S-VIDEO OUT
Connect to your television with an S-Video
cable. For audio, use the Line Out or Digital
Audio Out (optical or coaxial).
9 DIGITAL AUDIO OUT
(OPTICAL)
Connect to your AV receiver with a digital
optical cable.
10 DIGITAL AUDIO OUT
(COAXIAL)
Connect to your AV receiver with a digital
coaxial cable.
