Accessory Audio/Video (A/V)
Connections

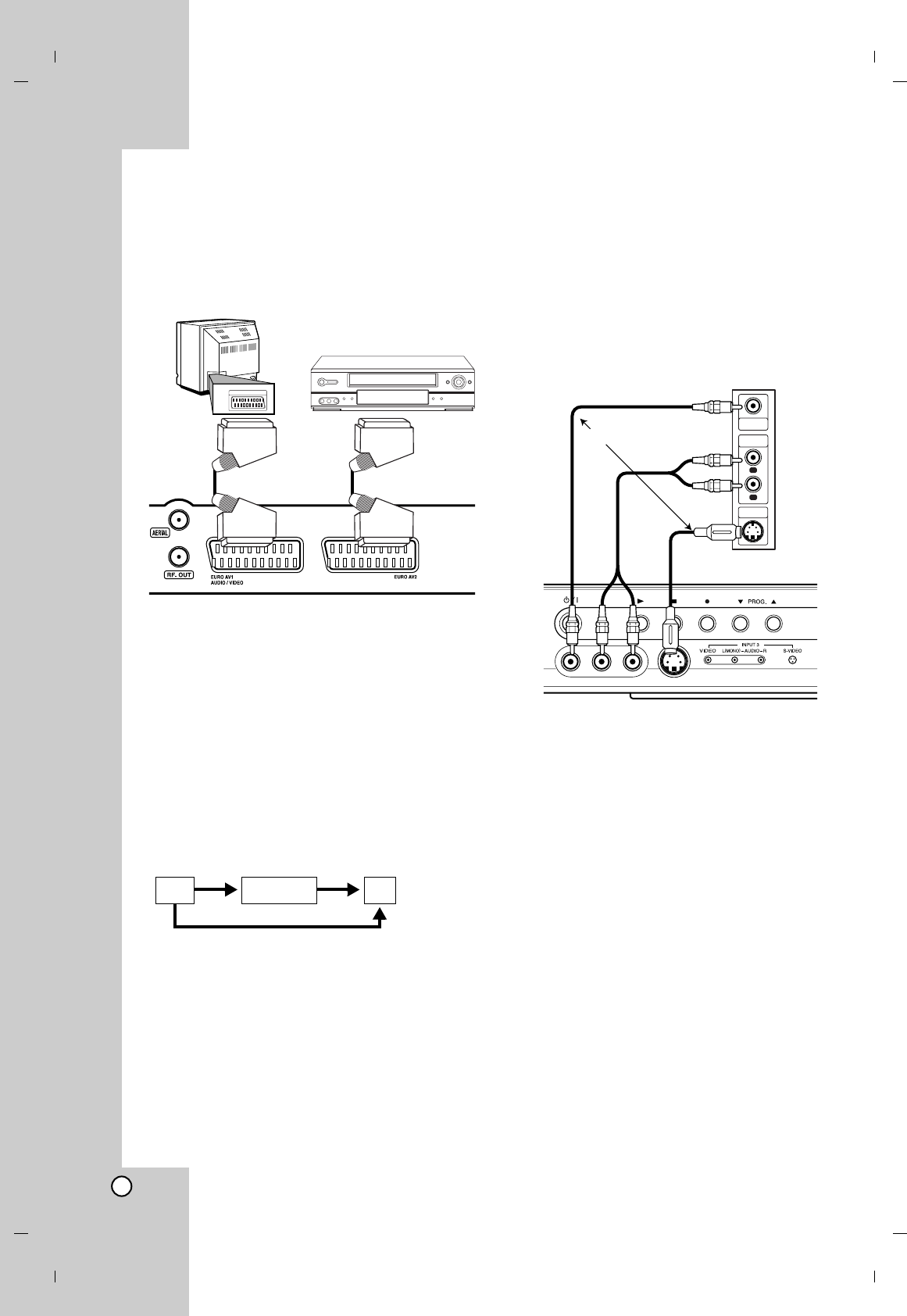

Connecting to the EURO AV2 jack
Connect a VCR or similar recording device to the
EURO AV2 jack of this recorder.
Tip:
You do not need to turn on the recorder to view the
signals from the connected tuner on your TV.
Notes:
Pictures containing copy protection signals that
prohibit any copying cannot be recorded.
If you pass the recorder signals via the VCR, you
may not receive a clear image on your TV screen.
Be sure to connect your VCR to the recorder and
your TV in the order shown below. To watch video
tapes, watch the tapes through a second line input
on your TV.
If you are using a B Sky B tuner, be sure to connect
the tuner’s VCR SCART jack to the EURO AV2 jack.
If you disconnect the recorder’s mains lead, you will
not be able to view the signals from the connected
VCR or tuner.
Connecting to the Front Panel’s Input
Jacks
Connect the input jacks on the recorder’s front panel
to the audio/video out jacks on your accessory
component, using audio/video cables.
Note:
If you use the S-VIDEO IN jack on the front panel, the
VIDEO IN jack on the front panel is not available.
TV
VCR RECORDER
Line input 1
Line input 2
Rear of the recorder
VCR, Cable Box, or
Satellite Tuner, etc.
TV
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
S-VIDEO
OUTPUT
Jack panel of Accessory Component
(VCR, Camcorder, etc.)
Front of the recorder
OR
