I NTELLIP AD
®
Ci TOUCH S CREEN K EYPAD
29
NOTE: An IR Sensor is required when the built-in TS-1 IR Sensor is not located in an ideal location
in a zone, or when pass-through IR commands (instead of Niles system commands) are needed to
control a source component.
Figure 17
Connecting an (optional) IRR-4D+ IR Sensor to the TS-1 Keypad.
I NTELLIP AD
®
Ci TOUCH S CREEN K EYPAD
28
CONNECTING THE TS-1
TS-1 Connections (continued)
• Connect
IR SENSOR
to an (optional) external IR Sensor, as shown in Figure 16 below or
Figure 17 on the next page.

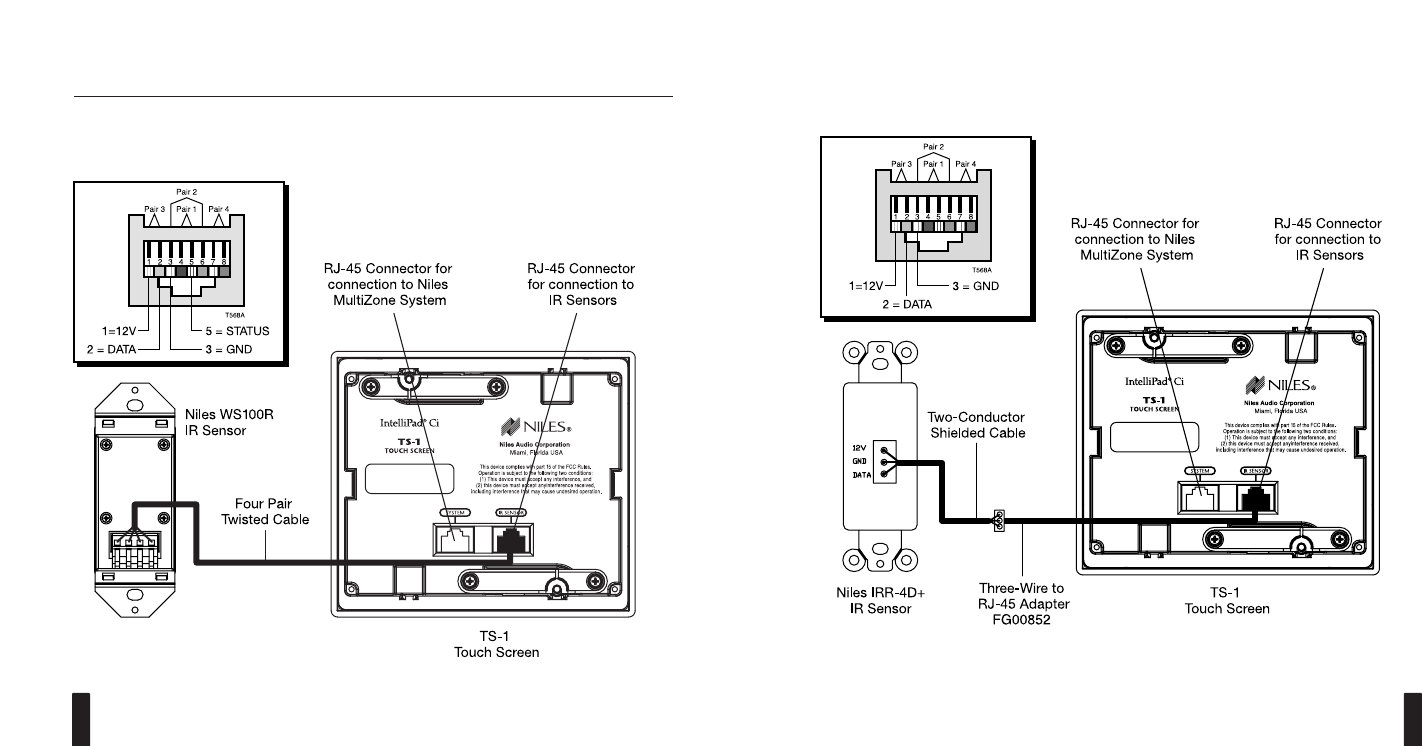

Figure 16
Connecting an (optional) WS100R IR Sensor to the TS-1 Keypad.
