GB 40
Transmission Standards
DVB, MPEG 2
LNB / Tuner input
Connector 1x F-type (LNB)
RF input frequency 920-2150 MHz
RF input power level -20 to -70 dBm
Supply voltage 13,5 /18,5 V ±5%
Max. current 500 mA, overload protected
Control voltage 22 kHz, 0,65 V
pp
DiSEqC Tone burst A/B or
Level 1.2
RF impedance 75 Ω
RF modulator
Input/output connector IEC female / IEC male
Modulator frequency 470 to 862 MHz
Output level 70 ± 5dBV
Output channel 21-69
Preset channel 43
Output signal PAL B/G orPAL I
TV SCART
Video output 1 V
pp
(±1 dB) / 75 Ω
Audio output 0,5 V
rms
/ R
L
>10 kΩ
RGB output Internal RGB or from
AUX SCART
RGB bandwidth 5,8 MHz ±3 dB
Fast blanking output Internal or from
AUX SCART
Status output 0/6/12 V / R
L
10 kΩ
AUX SCART
Video output 1 V
pp
(±1 dB) / 75 Ω
Video input 1 V
pp
/ 75 Ω
Audio output 0,5 V
rms
/ R
L
>10 kΩ
Audio input 0,5 Vr
ms
/ R
L
>10 kΩ
Status input 0/6/12 V / R
L
>10 kΩ
Fast blanking input 0/2 V for RGB, bypass to
TV SCART
RGB input Yes
DIGITAL AUDIO (S/PDIF)
Connector 1 x RCA
AUDIO R L
Connector 2 x RCA (R+L)
Output 0,5 V
rms
± 0,5 dB/ R
L
10 kΩ
SERIAL (RS 232) Serial data
Connector 9-pin D-sub male
Signals RS232, max. 115,2 kbit/s
Pin 1 DCD (Data carrier detect) not connected
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (Data terminal ready) Set to high
5 GND (Signal ground)
6 DSR (Data set ready) not connected
7 RTS (Ready to send)
8 CTS (Clear to send)
9 RI (Ring indicator) not connected
Conditional access system:
Embedded Viaccess and one PCMCIA interface
for a Common Interface CA module
(DVB Standard)
Smartcard Interface:
Interface for one card according to ISO 7816
Supports embedded descrambler Viaccess
Front panel 4x7 segment numeric LED display,
Buttons: , (standby, progr. number
up and down)
General data
Article code The model code, variant and serial number,
are located on a label on the underside of
the housing.
Supply voltage 95-250 V AC, 50-60 Hz
Power consumption max 27 W at 500 mA LNB load
Power consumption in
standby 5 W
Operating temperature +5° C to +45° C
Storage temperature - 40° C to +65° C
Humidity 25 to 90 % rel humidity
Operating distance for
remote control max 10 meters
Dimensions (w x d x h) 380 x 240 x 65 mm
Weight 1,8 kg approx

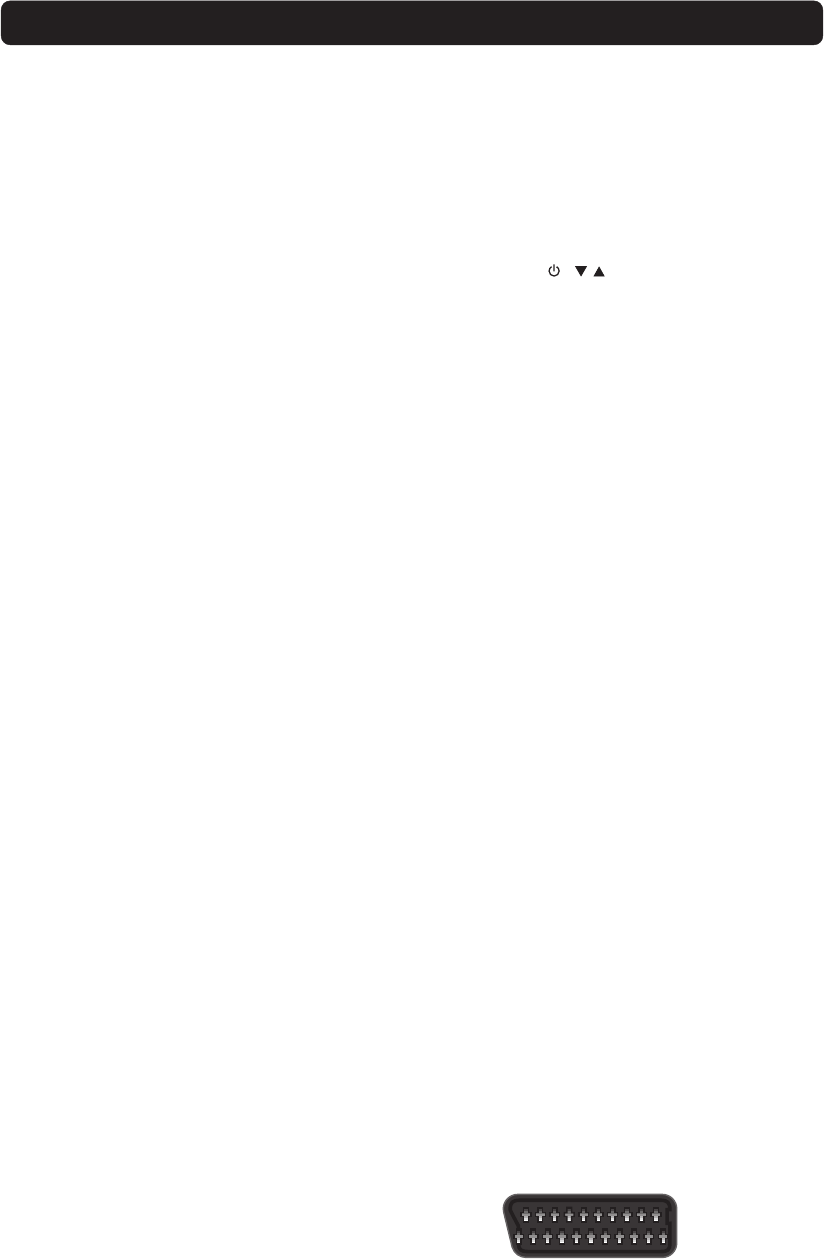

SCART-sockets
TV AUX
1 Audio out right ch. Audio out right ch.
2 - Audio in right ch.
3 Audio out left ch. Audio out left ch.
4 Audio ground Audio ground
5 RGB blue ground RGB blue ground
6 - Audio in left ch.
7 RGB blue signal out RGB blue signal in
8 Switch voltage out Switch voltage in
9 RGB green ground RGB green ground
10 Connect to pin 10 in AUX scart
11 RGB green signal out RGB green signal in
12 - -
13 RGB red ground RGB red ground
14 Fast blank. ground Fast blank. ground
15 RGB red signal out RGB red signal in
16 Fast blanking out Fast blanking in
17 Video out ground Video out ground
18 - Video in ground
19 Video out Video out
20 - Video in
21 Ground (casing) Ground (casing)
121
220
TECHNICAL SPECIFICATIONS
