3.10 Connector Diagram
The CIO-DAC## connector is a 37-pin D-type connector accessible from the rear of
the PC through the expansion backplate.
The connector accepts female 37-pin D type connectors, such as those on the
C37FF-2, 2 foot cable with connectors.
If frequent changes to signal connections or signal conditioning is required, refer to
the information on the CIO-TERMINAL, CIO-SPADE50 and CIO-MINI37 screw
terminal boards.

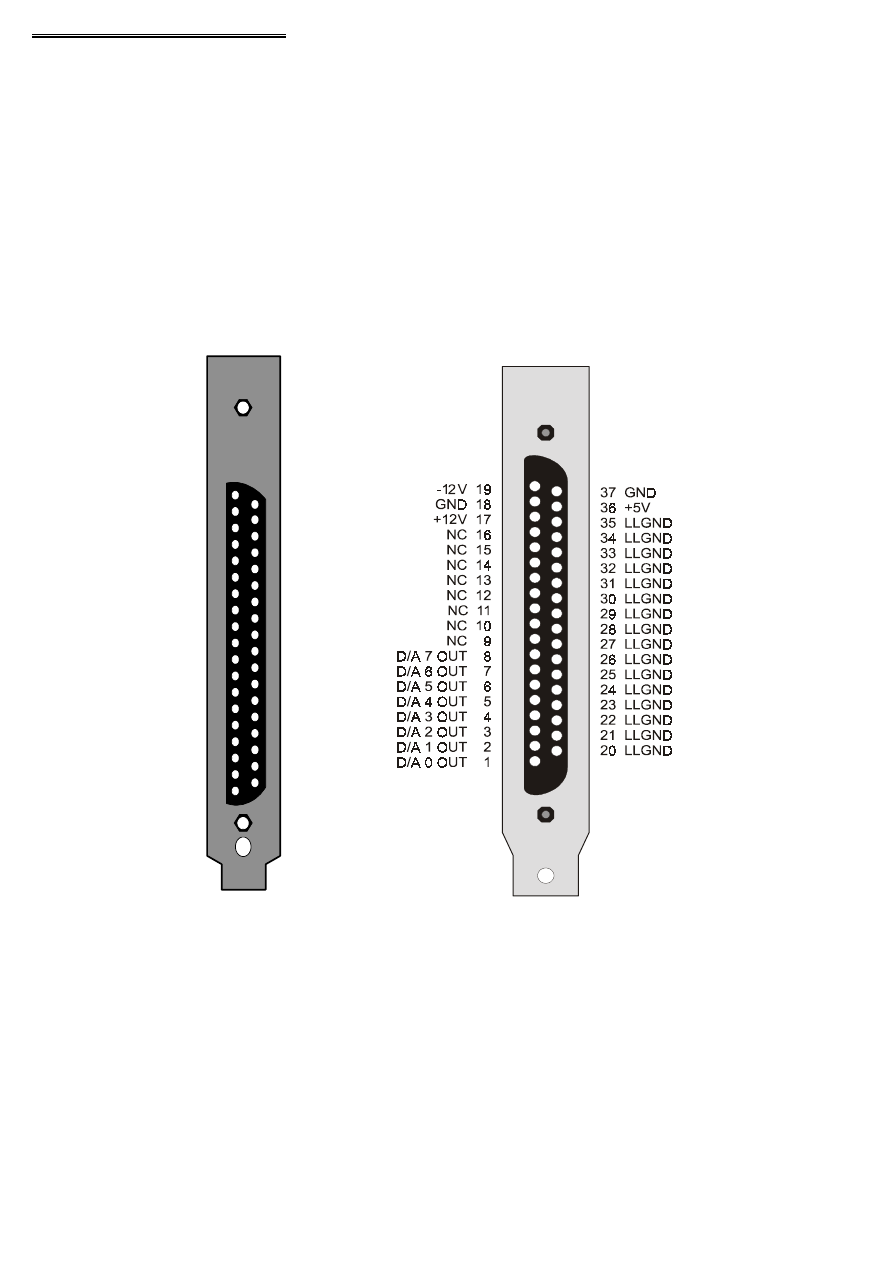

Figure 3-5.. Connector CIO-DAC16 Figure 3-6. Connector CIO-DAC08
8
-12V 19
GND 18
+12V 17
D/A 15 OUT 16
D/A 14 OUT 15
D/A 13 OUT 14
D/A 12 OUT 13
D/A 11 OUT 12
D/A 10 OUT 11
D/A 9 OUT 10
D/A 8 OUT 9
D/A 7 OUT 8
D/A 6 OUT 7
D/A 5 OUT 6
D/A 4 OUT 5
D/A 3 OUT 4
D/A 2 OUT 3
D/A 1 OUT 2
D/A 0 OUT 1
37 GND
36 +5V
35 LLGND
34 LLGND
33 LLGND
32 LLGND
31 LLGND
30 LLGND
29 LLGND
28 LLGND
27 LLGND
26 LLGND
25 LLGND
24 LLGND
23 LLGND
22 LLGND
21 LLGND
20 LLGND
