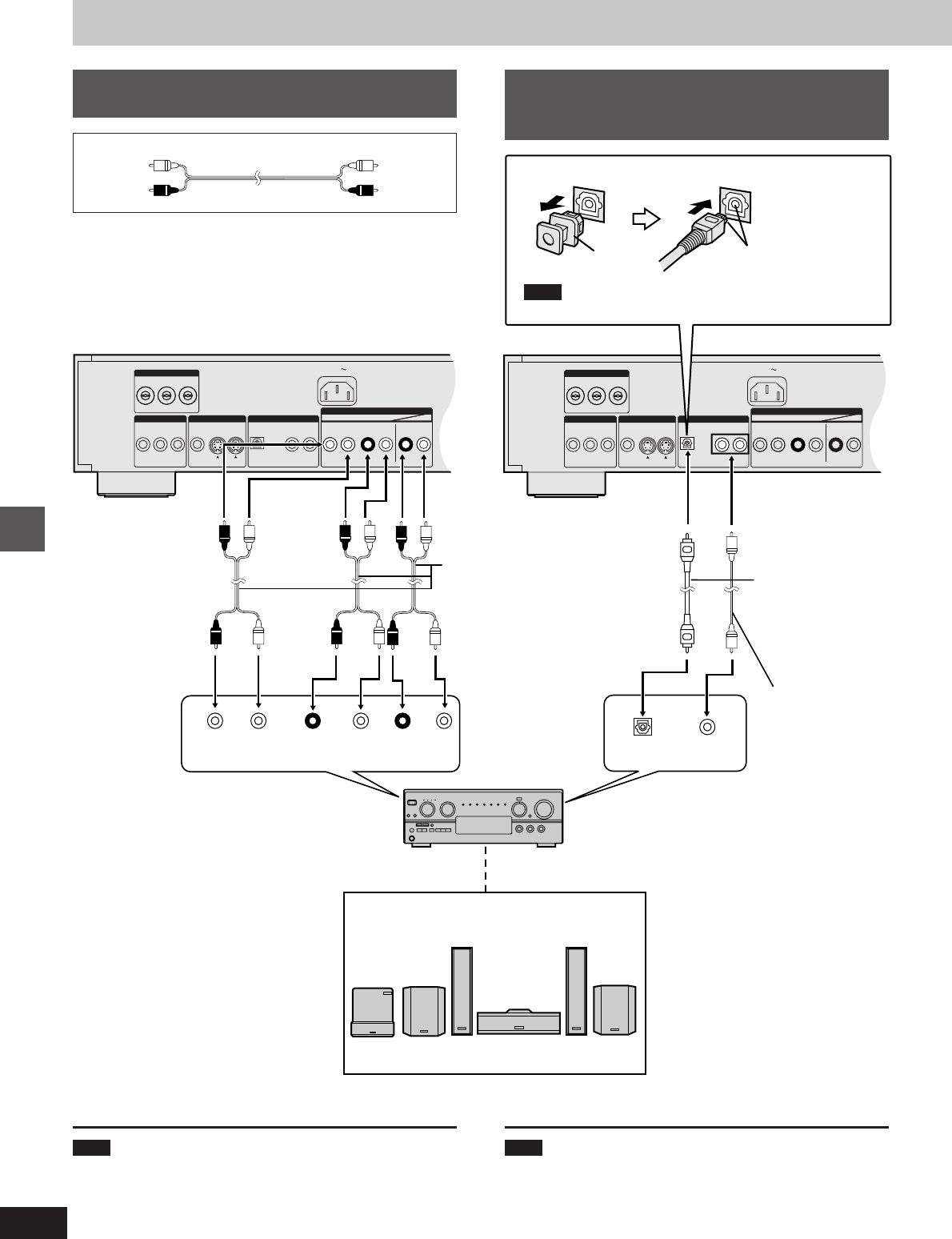

Connecting an amplifier with a
built-in decoder or a decoder-
amplifier combination
»
A
Connecting an amplifier with
5.1-channel audio input terminals
Change “Speaker setting” (➡ page 33).
Note
³Turn speaker and headphone V.S.S. (➡ page 23) off when you
connect through the 5.1-channel output terminals. The unit does
not output the signals for channels other than the front speakers
when V.S.S. is on.
³If you do not connect a subwoofer, it is advisable to connect front
speakers (L/R) capable of producing bass of less than 100 Hz.
Example: Six speakers
Change “Digital output” (➡ page 34).
Note
You cannot use DTS Digital Surround decoders not suited to
DVD-Video.
Back of the unit
Back of the unit
Optical digital
audio cable
Do not bend
when connecting.
Coaxial cable
Amplifier
Connect cables to
terminals
corresponding to the
speakers you have
connected.
Audio cable
White (L)
Red (R)
Note when connecting the optical digital audio cable
Remove the
dust cap
Align the plug with the
terminal
Note
Keep the dust cap and reattach when not using the terminal.
Home Theater—Enjoying more powerful sound
Speakers
You can enjoy surround sound by connecting
from three to six speakers.
