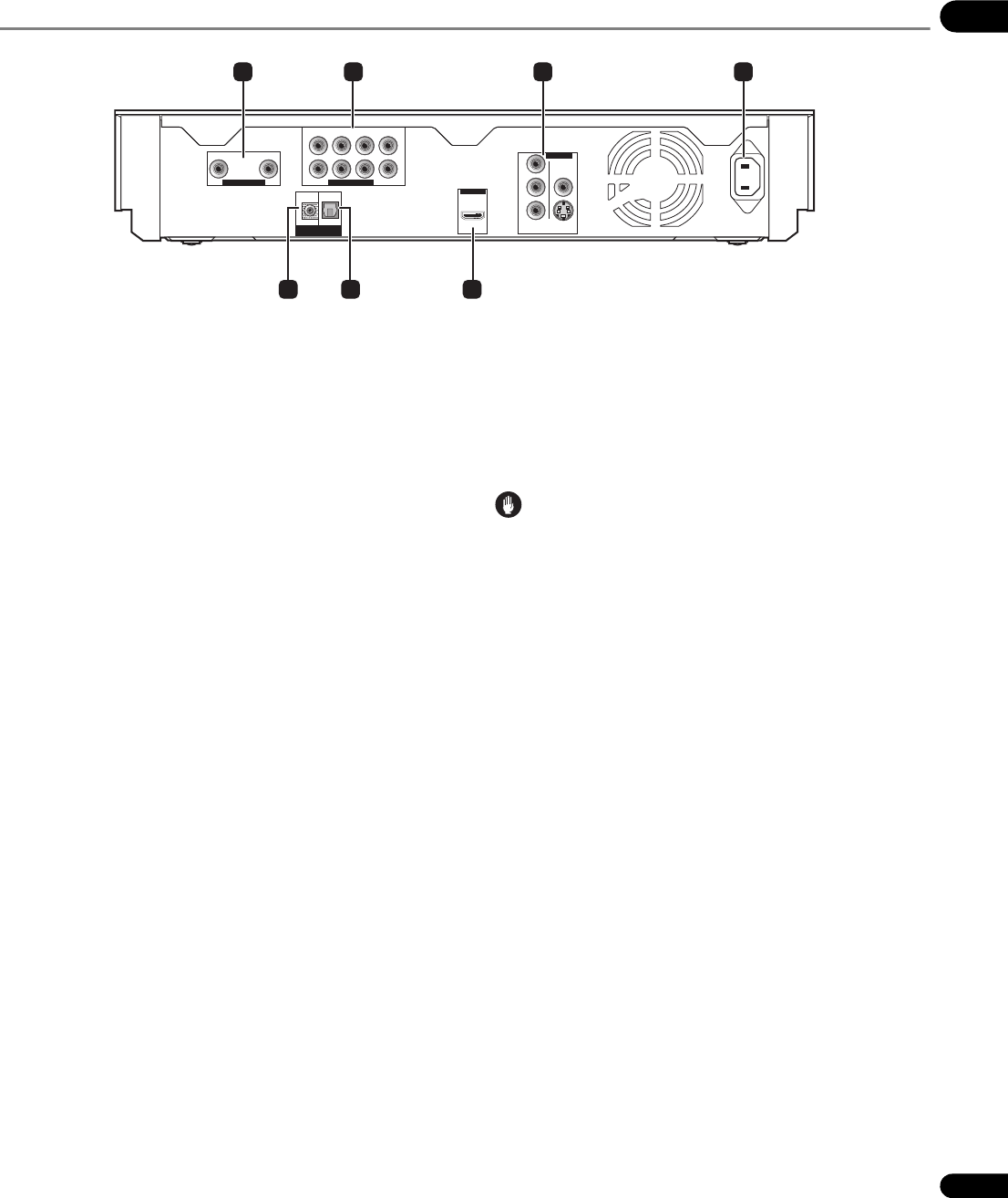

Rear Panel
1 AUDIO OUT (2 ch) terminals
Connect with the audio input terminals on a TV, AV receiver or
amplifier, etc.
2 AUDIO OUT (7.1 ch) terminals
Connect with the multi-channel (7.1- or 5.1-channel) audio input
terminals on an AV receiver or amplifier, etc.
3 VIDEO OUT terminals
VIDEO – Connect with the video input terminal on a TV, AV
receiver or amplifier, etc.
S-VIDEO – Connect with the S-Video input terminal on a TV, AV
receiver or amplifier, etc.
COMPONENT VIDEO – Connect with the component video
input terminals on a TV, AV receiver or amplifier, etc.
4AC IN
Connect the power cord here.
5 HDMI OUT terminal
Connect with an HDMI-compatible TV, AV receiver or amplifier, etc.
6 DIGITAL OUT (OPTICAL)
Connect with the digital audio input terminal on an AV receiver or
amplifier, etc.
7 CONTROL IN terminal
Use to control this player from the remote sensor of another Pioneer
component with a CONTROL OUT terminal and bearing the
mark. Connect the CONTROL OUT of the other component to the
CONTROL IN of this player using a mini-plug cord.
Caution
• Be sure to connect cables for outputting the audio and video
signals (pages 14 and 17).
• When connected via System Control, point the remote control
toward the connected component (such as an AV receiver or
amplifier). The remote will not work correctly when pointed at
this player.
• You cannot use System Control with components that do not
have a System Control terminal or with components
manufactured by companies other than Pioneer.
R
R
AUDIO OUT ( 2 ch ) AUDIO OUT ( 7.1 ch )
VIDEO OUT
HDMI OUT
DIGITAL
OUT
CONTROL
IN
L
L
Y
P
B
PR
FRONT
OPTICAL
COMPONENT
VIDEO
SURROUND
CENTER
VIDEO
S-VIDEO
SUB WOOFER
SURROUND BACK
AC IN
21 3 4
6 57
