Stand-alone DVR Instruction Manual
5-4.5 Connection to an Ethernet (Optional) Network
▫ Connecting the cable to Ethernet.
Our Ethernet connector is a RJ45 type. The maximum cable length is 300 ft. When you want
to use a longer cable, we suggest using repeater.

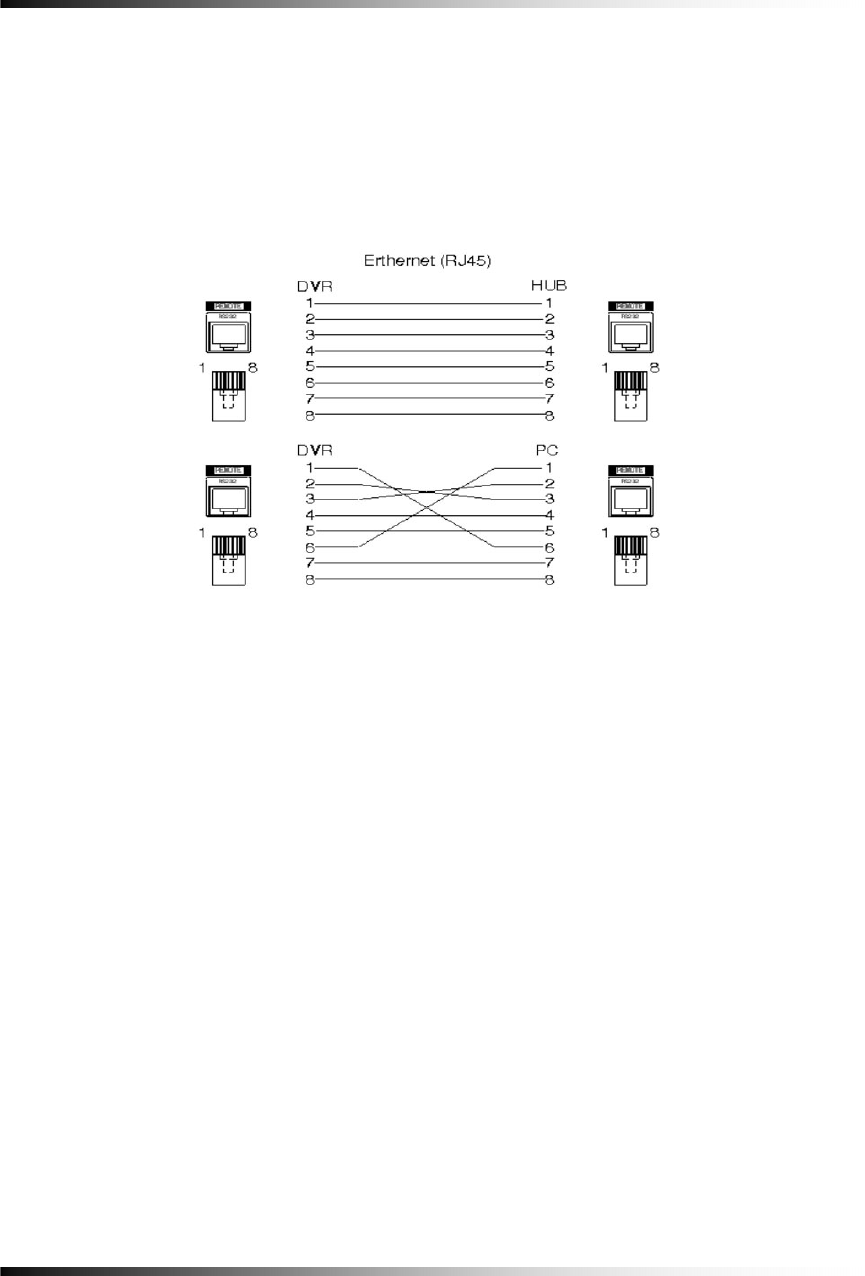

Refer to
[Fig. 5-11] for connector pin configuration.
[Fig 5-11]
28
