Using the remote controlDX-24L200A12
Connecting a basic home theater system

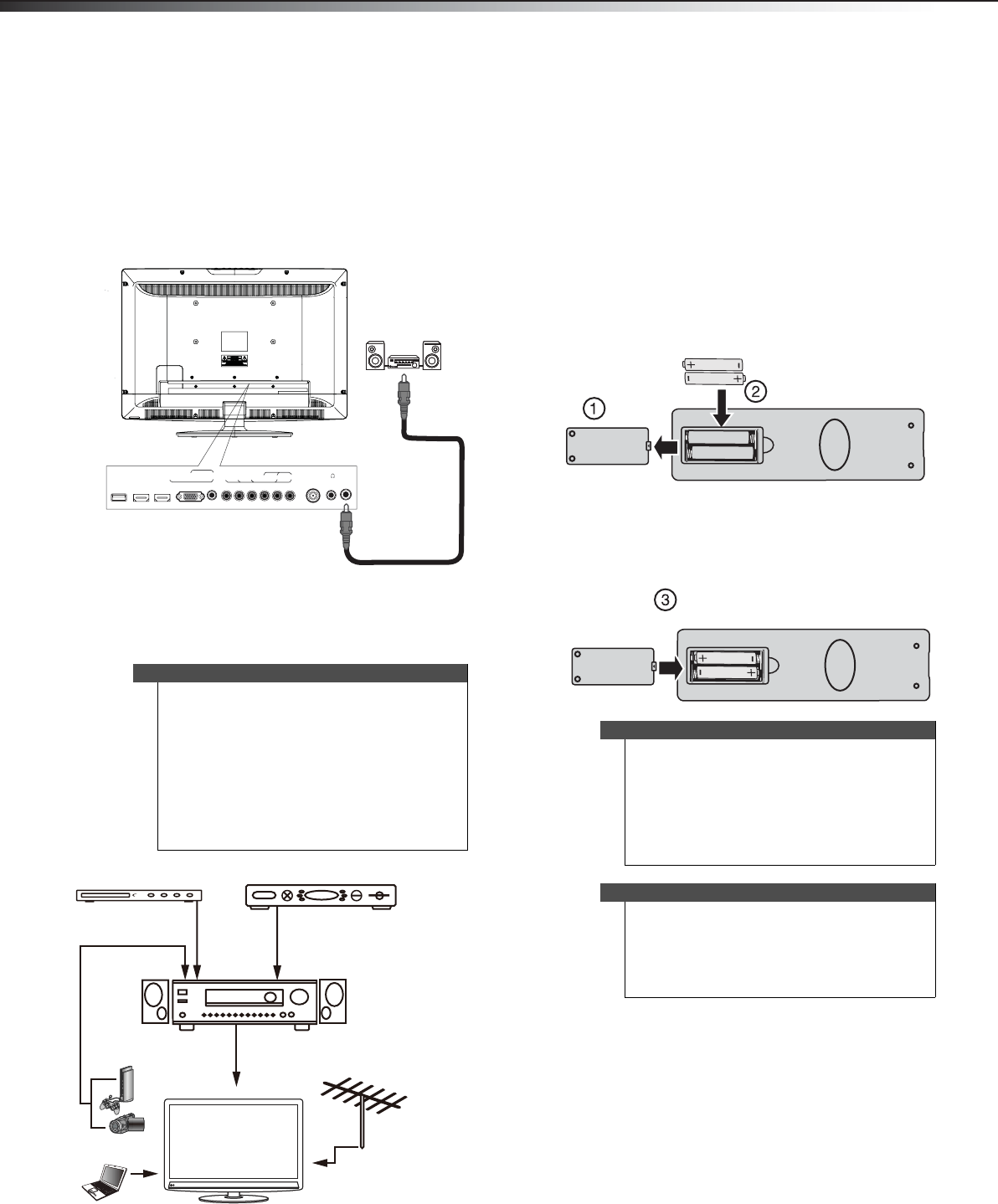

To connect a basic home theater system using digital
audio:
1 Make sure that your TV’s power cord is unplugged
and the home system is turned off.
2 Connect a digital coaxial audio cable (not provided)
to the DIGITAL OUT jack on the side of your TV and
to the DIGITAL AUDIO IN jack on the home theater
system.
Connecting a home theater system with
multiple devices
The connections you make depend on the video and
audio jacks available on your devices. Refer to the
documentation that came with your devices for
connection information.
Remember to use the best connection types available for
the best picture and sound. For information about
connection types, see “see "What connection should I
use?" on page 7.
Using the remote control
Installing remote control batteries
To install the remote control batteries:
1 While pressing the cover release latch on the back of
the remote control, lift the cover off the remote
control.
2 Insert two AAA batteries into the battery
compartment. Make sure that you match the + and –
symbols on the batteries with the + and – symbols in
the battery compartment.
3 Replace the battery cover.
Aiming the remote control
To aim the remote control:
• Point the remote control towards the remote sensor
on the front of your TV.
Notes
When connecting an AV receiver with the ARC
function, we recommend that you connect the AV
receiver’s HDMI OUT jack to your TV’s HDMI (ARC)
jack by using an HDMI-ARC compliant cable.
In the following situations, the HDMI cable routes
Dolby Digital audio to the AV receiver, so you do not
need to connect a separate digital audio cable:
• When you have a game console connected to your
TV’s HDMI jack.
• When you watch a program through an antenna or
cable TV connected to the ANT/CABLE IN jack.
YP
B
P
R
L -
AUDIO
-
R
COMPONENT IN
ANT / CABLE
AV IN
VIDEO
HDMI 2 HDMI 1 / DVI VGA
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
SERVICE
PORT
Back of TV
Home theater system
Digital coaxial audio cable
Blu-ray player/DVD player/VCR
Cable or satellite TV box
AV receiver
Computer
Game console
or camera
Antenna or cable TV
connected directly to
the wall jack
Cautions
• Batteries should not be exposed to excessive
heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the
batteries leak, clean the battery compartment
with a cloth. If chemicals touch your skin, wash
immediately.
• Make sure that batteries are disposed of
correctly. Do not burn or incinerate.
Notes
• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• If the remote control is not going to be used for
an extended period of time, remove the
batteries.
