EN
P
REPARATION

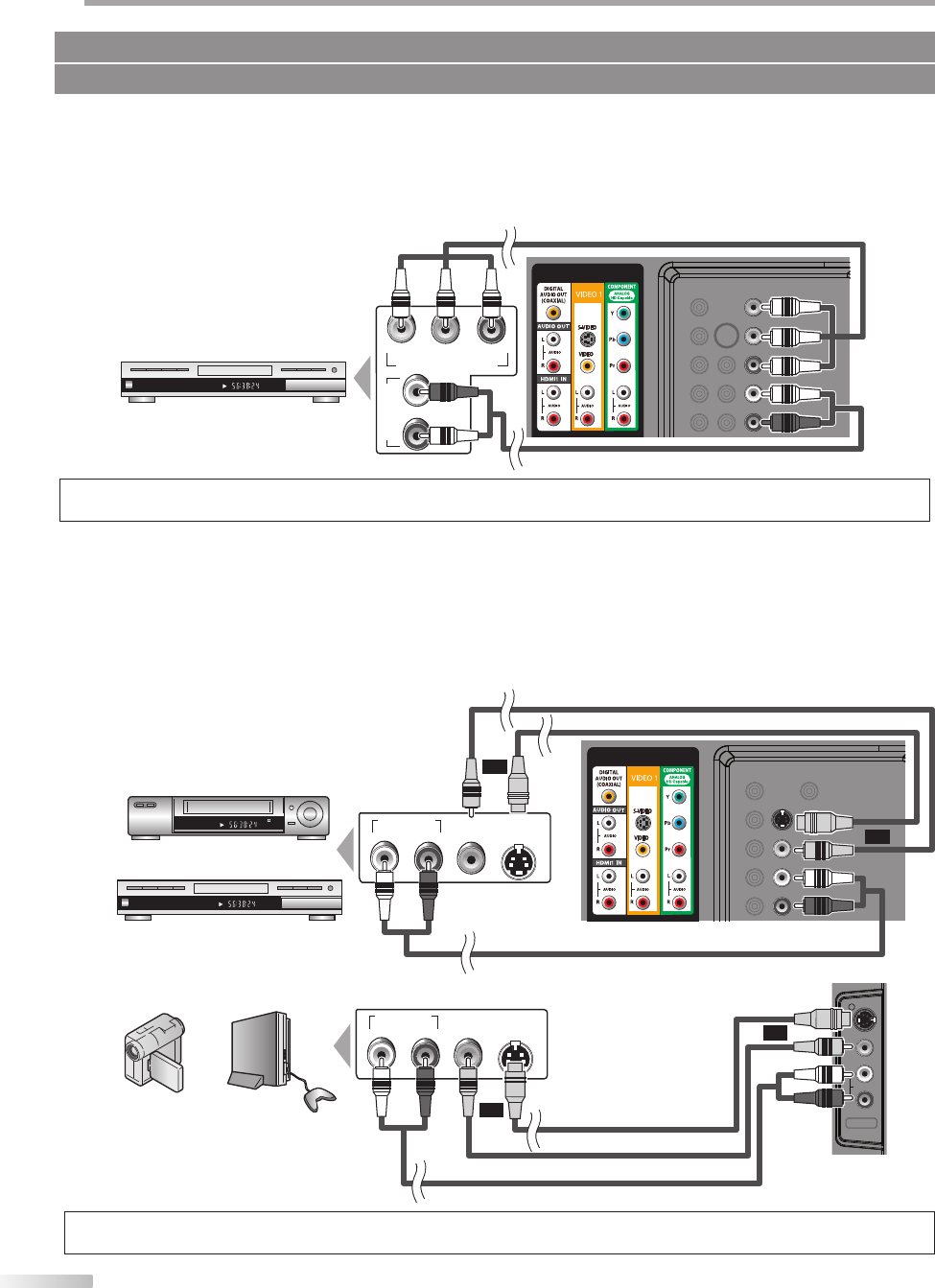

[Component Video Connection]
RCA component video connection offers better picture quality for video devices connected to the unit.
If you connect to the unit’s COMPONENT video input jack, connect RCA audio cables to the audio L/R jacks below the
component connector.
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
R
L
CHATER 15
REEAT A B
T TE 5
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
[S-video or Video Connection]
S-video connection offers good picture quality and an RCA video connection offers standard picture quality for video
devices connected to the unit.
If you connect to the unit’s S-video input jack or video input jack, connect RCA audio cables to the audio L/R jacks
below the video connector.
When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.
CHPTER 15
REEAT A B
T TE 5
AUDIO OUT
RL
VIDEO
OUT
S-VIDEO
OUT
STEEO
TAND BY
BD/DVD recorder with
the S-Video or Video output jack
VCR
RCA video cable
or
RCA audio cable
S-video cable
or
rear of this unit
<VIDEO 1>
AUDIO OUT
RL
VIDEO
OUT
VIDEO 2
AUDIO
VIDEO
S-VIDEO
S-VIDEO
OUT
S-video cable
RCA audio cable
side of this unit
video game
or
RCA video cable
or
camcorder
<VIDEO 2>
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
No supplied cables are used in this connection:
Please purchase the necessary cables at your local store.
(red)(blue)(green)
BD/DVD recorder with
the component video output jack
RCA component video cable
RCA audio cable
rear of
this unit
reen)
(g n)
lue)
(b
ed)
(re
e.g.)
e.g.)
