Before you connect...
Be sure your antenna or other device is connected properly before plugging in the AC power cord.

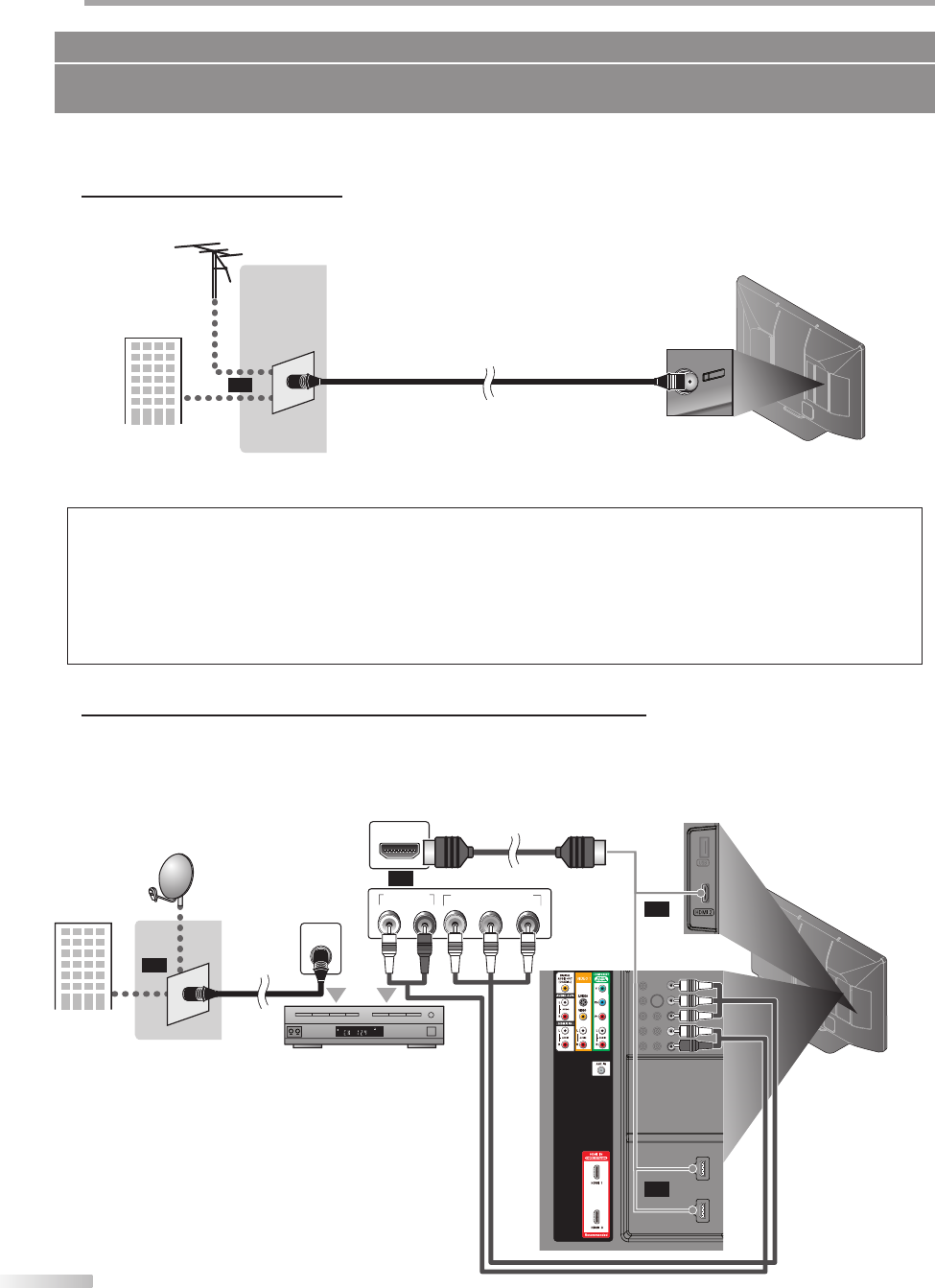

Antenna Connection
Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.
Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit
to memorize all available channels in your area. (Refer to “Initial Setup” on page 13.)
Note:
• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local
electronics store for these items.
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than
settop versions.
• To switch your reception source easily between antenna and cable, install an antenna selector.
• If you connect to the cable system directly, contact the CATV installer.
Connection to Cable Receiver or Satellite Box
Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the
HDMI or the component video output jack of the cable receiver / satellite box.
If you connect to the unit’s COMPONENT video input jack, connect an RCA audio cable to the audio L/R jack of
COMPONENT accordingly.
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
RL
SERO
CM
HDMI OUT
ANT IN
5
*
5
No supplied cables are used in this connection:
Please purchase the necessary cables at your local store.
High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.
VHF / UHF
antenna
RF coaxial cable
cable TV signal
rear of this unit
e.g.)
or
You can also connect this unit to the cable receiver
or satellite box other than the HDMI or the
component video output jack because they might
have different output jacks.
Required cables and connecting methods of the
cable receiver / satellite box, or the availability
channel for the clear QAM may differ depending on
the cable / satellite provider. For more information,
please contact your cable / satellite provider.
*
*
or
satellite dish
cable rec
eiver / satellite box
cable TV signal
including PPV
or
side or
rear of this unit
HDMI cable
or
RCA c
omponent video cable
and RCA audio cable
RF c
oaxial
cable
