Additional information
15
124
En
S-Video output . . . . . . . . . . . . . . . . . . . . . . . . . . AV1, Output
Y (luminance) - Output level. . . . . . . . . . . . . . .1 Vp-p (75
)
C (colour) - Output level . . . . . . . . . . . . . .300 mVp-p (75
)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . .AV connector 1 (AV1),
4 pin mini DIN (Output)
Component video output
Output level . . . . . . . . . . . . . . . . . . . . . . . . Y: 1.0 Vp-p (75
)
P
B
, P
R
: 0.7 Vp-p (75
)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA jacks
RGB input
Input level. . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.7 Vp-p (75
)
Jacks. . . . . . . . . . . . . . . . . . . . . . . .AV connector 2 (Input 1)
RGB output
Output level . . . . . . . . . . . . . . . . . . . . . . . . . . .0.7 Vp-p (75
)
Jacks. . . . . . . . . . . . . . . . . . . . . . . . . . AV connector 1 (AV1)
Audio input . . . . . . . . . . . . . . . Input 1, 3 (rear), 2 (front) L/R
Input level
During audio input . . . . . . . . . . . . . . . . . . . . . . . . . . .2V rms
(Input impedance: more than 22 k
)
Jacks . . . . . . . . . . . . . . . . . . . . . . AV connector 2 (Input 1),
RCA jacks (Input 2, 3)
Audio output. . . . . . . . . . . . . . . . . . . . . . . . . . . . AV1, Output
During audio output . . . . . . . . . . . . . . . . . . . . . . . . . .2V rms
(Output impedance: less than 1.5 k
)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . .AV connector 1 (AV1),
RCA jacks (Output)
Control input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Mini jack
DV input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 pin (front)
(i.LINK/IEEE 1394 standard)
G-LINK™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Mini jack

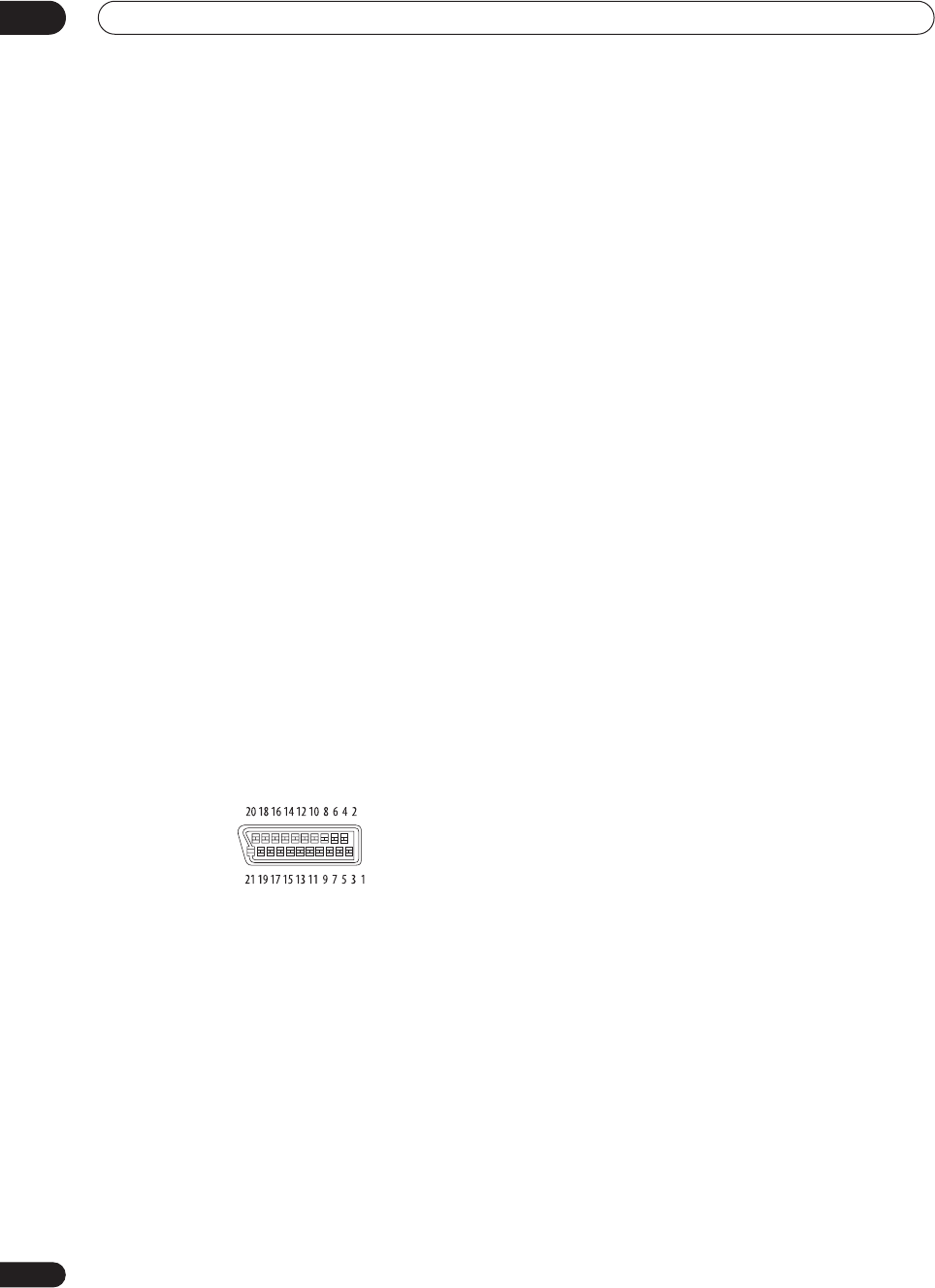

AV Connectors (21-pin connector assignment)
AV connector input/output . . . . . . . . . . . . 21-pin connector
This connector provides the video and audio signals for
connection to a compatible colour TV or monitor.
PIN no. AV1(RGB)-TV / AV2(INPUT 1)
1. . . . . . . . . . . . . . . . . . . . . . . Audio 2/R out / Audio 2/R out
2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – / Audio 2/R in
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G out / G in
3. . . . . . . . . . . . . . . . . . . . . . . . Audio 1/L out / Audio 1/L out
6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – / Audio 1/L in
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R or C out / R or C in
4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND
17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND
7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B out / B in
19 . . . . . . . . . . . . . . . . . . . . . . . Video out or Y out / Video out
20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – / Video in or Y in
8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Status
21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND
Supplied accessories
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Dry cell batteries (AA/R6P). . . . . . . . . . . . . . . . . . . . . . . . . . 2
Audio / Video cable (red/white/yellow) . . . . . . . . . . . . . . . . 1
G-LINK™ cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
RF antenna cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Operating Instructions
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Note: The specifications and design of this product are subject
to change without notice, due to improvement.
