Freq Shift, Audio, and DDC Step Sub-Menus

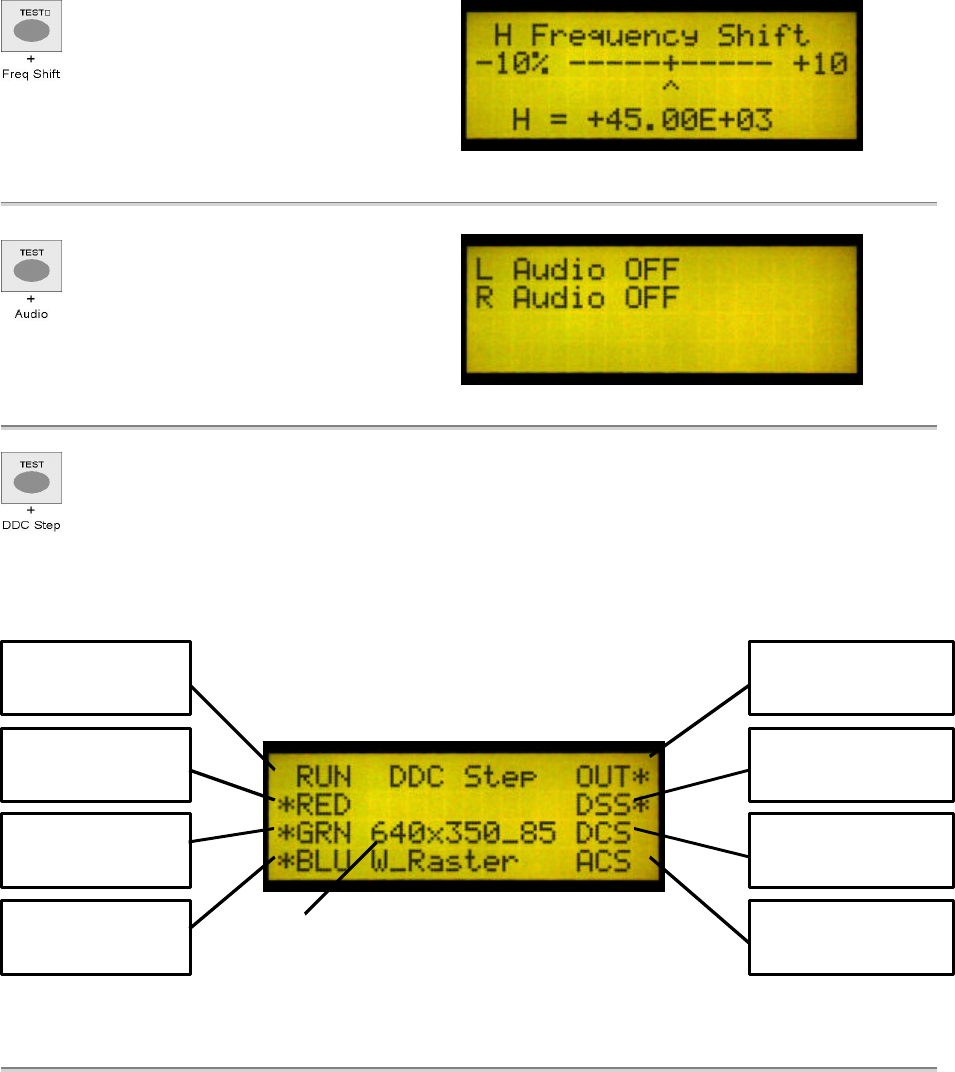

Freq Shift Sub-Menu
Press the +/- buttons to increase and
decrease the horizontal scanning
frequency of the current video format +/- 10%
in 2% increments. The ^ pointer indicates the
percent deviation and the bottom number shows the actual frequency.
Audio Sub-Menu
Audio menu buttons independently
toggle the stereo audio output
channels on and off.
DDC Step Sub-Menu
Press the + scroll button to step through the video formats in the list produced by the
Learn Formats function. Press the - scroll button to step through all the available
patterns. Pressing the Run menu button causes the generator to automatically cycle through all
patterns for every video format in the list. Pressing the Stop menu button restores manual
stepping.
Red color
signal ON/OFF
RUN/STOP
Step Function
Green color
signal ON/OFF
Blue color
signal ON/OFF
Line 1: Video format used in current step
Line 2: Pattern displayed in current step
Test signal
outputs ON/OFF
Select Digital
Separate Sync
Select Digital
C
omposite
S
ync
Select Analog
Composite Sync
