Sencore VP300 Home Theater Server User Manual



Page 27

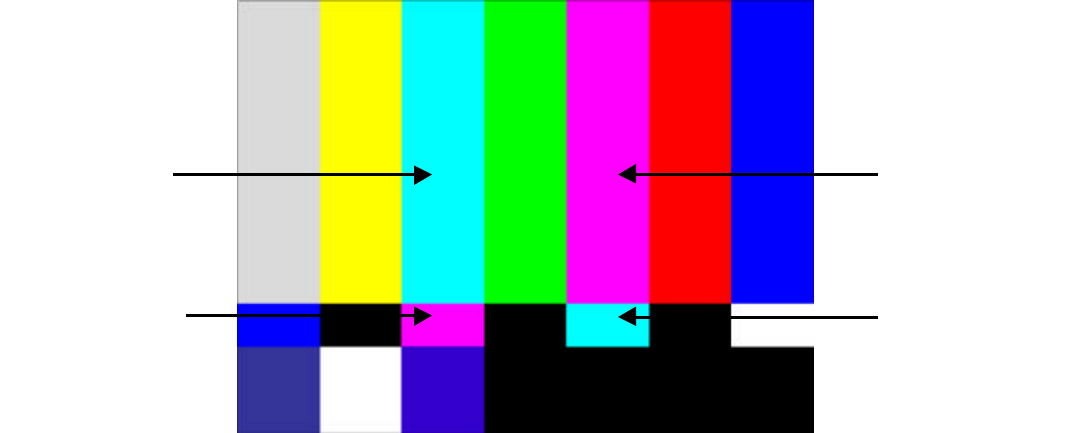

Fig 5: The SMPTE bar pattern cyan and magenta bars are used to calibrate the television
tint control.
Remember that the user controls should be calibrated with the room lighting adjusted to the
preferred level for movie viewing. These controls should also be the final adjustments that are
made to the TV. If the TV white balance is calibrated, these five user controls will need to be re-
calibrated.
Cyan
Bar Magenta
Bar
Small
Magenta
Small
Cyan
