Front Panel Controls and Indicators
LCD Window

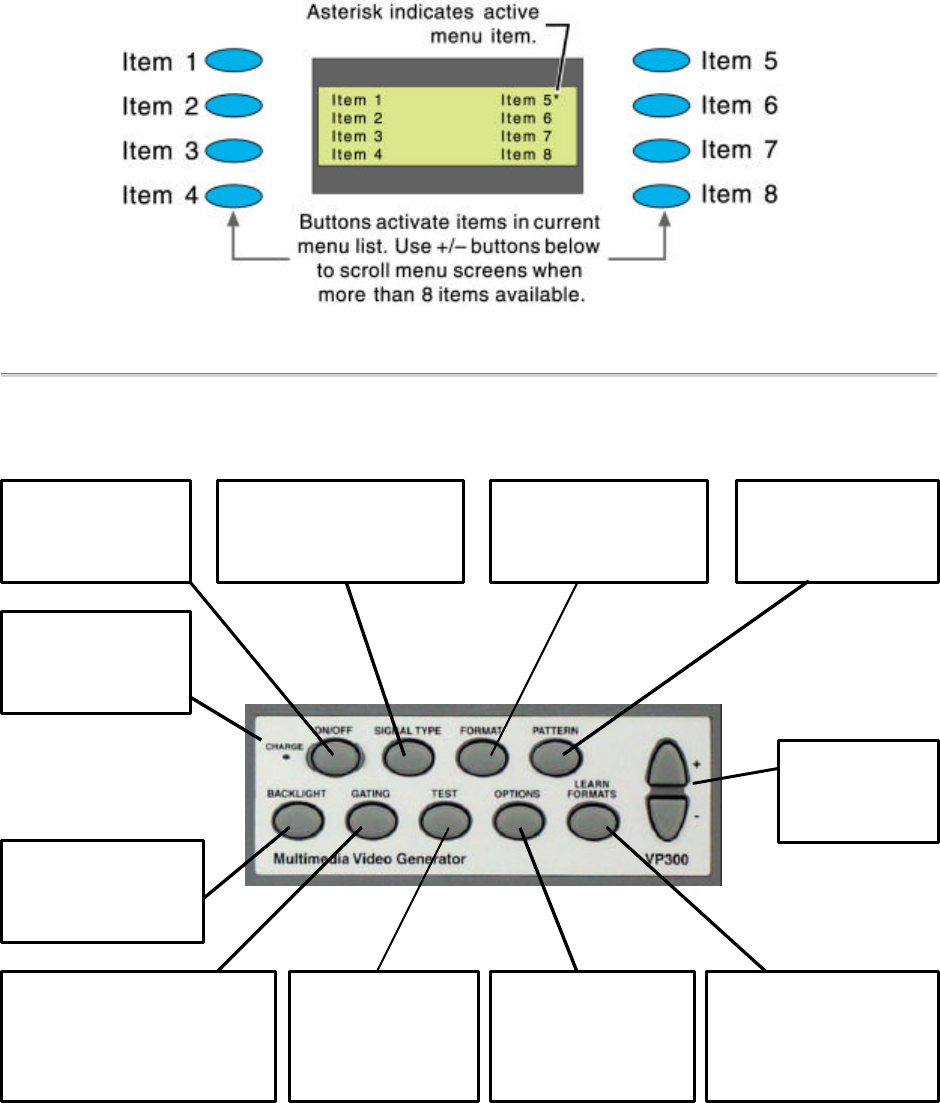

The LCD window either displays messages to the operator or shows a selection menu. The figure
shows an example of a selection menu.
Controls
ON/OFF
Toggle generator
power on and off
SIGNAL TYPE
Video signal types menu
See page 6
FORMAT
Video formats menu
See page 6
PATTERN
Video patterns menu
See page 6
+ / -
Page through
menu screens
CHARGE
External charger
connected when lit
BACKLIGHT
Toggle LCD
backlight on and off
GATING
Menu for gating video and
sync components on and off
See page 7
TEST
Menu of available
test functions
See page 7
OPTIONS
Unit’s configuration
options
See page 11
LEARN FORMATS
Capture monitor’s DDC
format data
See page 11
