03/10/15 IM-DR580H(E)2.fmIM-DR580H(E) TINSE0568AWZZ
Recording
-Connecting to a Stereo System, PC, etc.-
Connecting to a Stereo System, PC, etc. (continued)

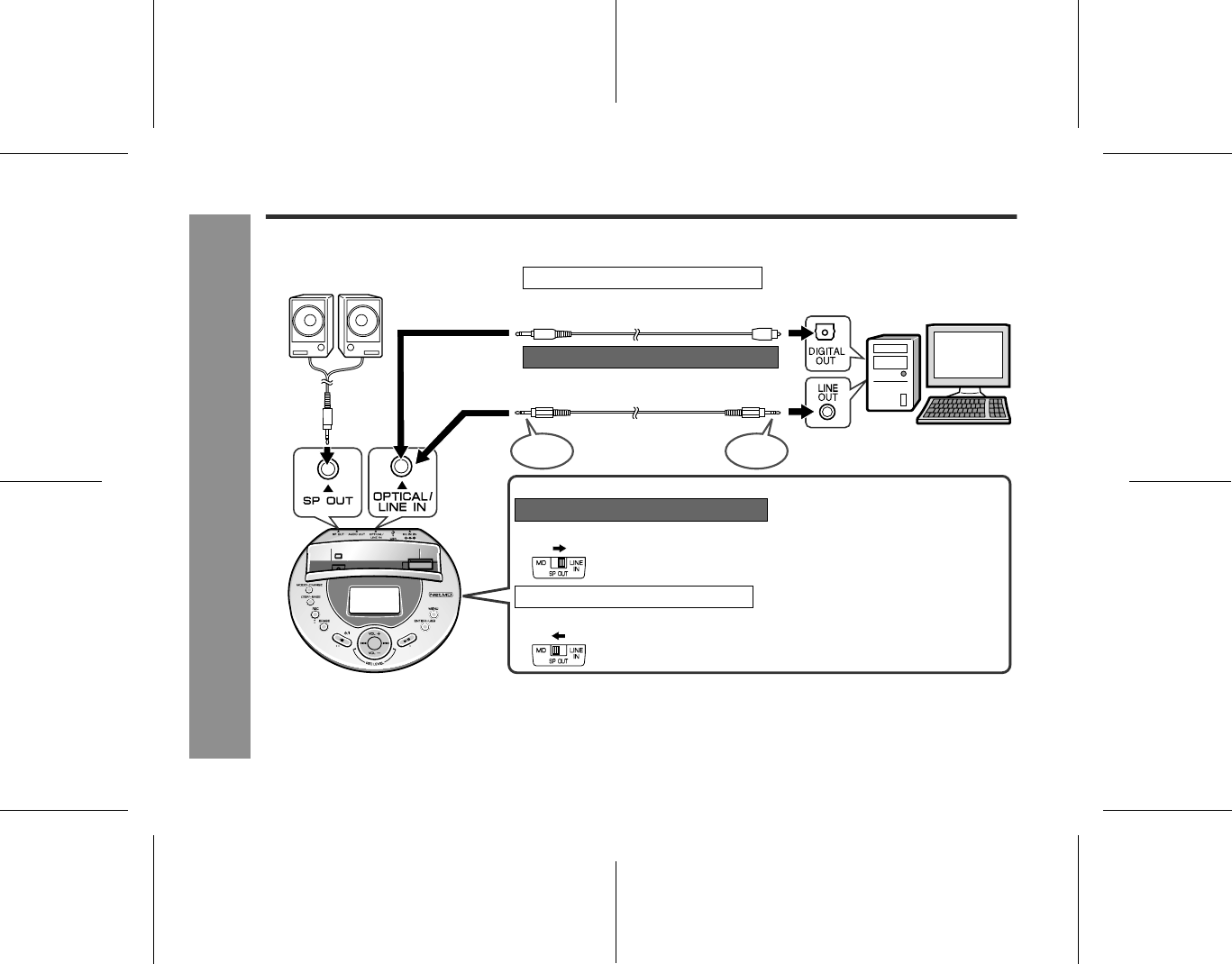

" Recording from PC
To DIGITAL OUT
(square) socket
To the LINE OUT
socket
Speakers with
built-in amplifiers
Supplied connection cable
(for digital recording)
3.5 mm mini plug cable without resistance
(commercially available)
To the
OPTICAL/LINE IN
socket
Connecting to an optical output socket
Connecting to an analogue output socket
Connected to an analogue output socket
Set the speaker output selector switch to "LINE IN" to listen to the
sound from PC through speakers.
(The playback sound level does not affect the recording level.)
When connected to speakers with built-in amplifiers
To LINE IN
Set the speaker output selector switch to "MD" to monitor recording
through speakers.
No sound can be heard when the switch is set to "LINE IN".
To MD
Connected to an optical output socket
3-pole
plug
3-pole
plug
Note:
When PC and the multi-link station are connected through input and output sockets, howling or sound deterioration may occur.
To avoid this, set the "LINE MONI" to "OFF" for analogue connections (see page 70).
For digital connections, disconnect PC from the AUDIO OUT socket on the multi-link station and set "OPT MONI" to "ON" (see
page 70).
