1.8 INTERCONNECTS

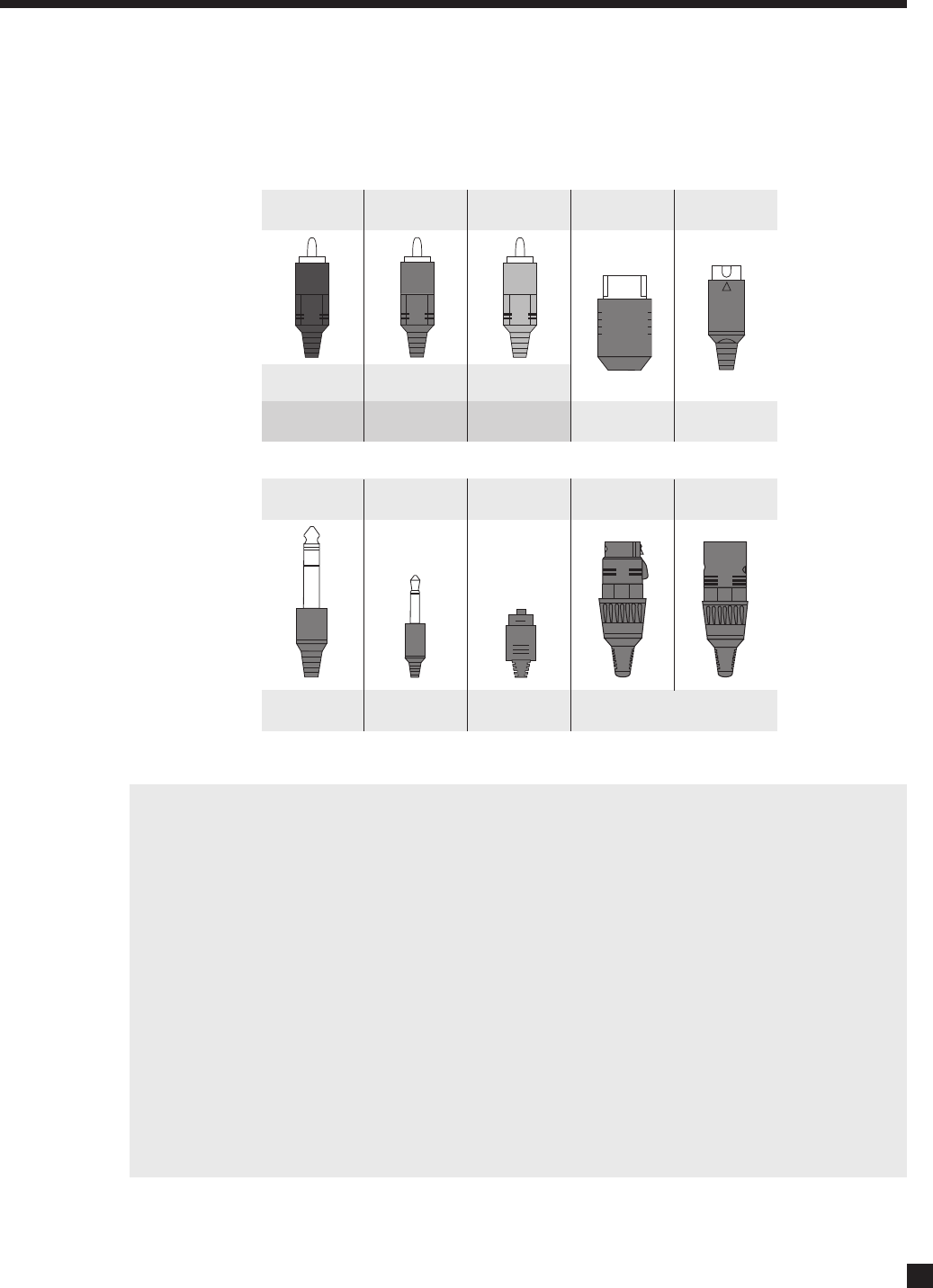

These illustrations show audio, video, IR, and trigger connectors used between source components, the
processor, displays, and power amplifiers. RCA coaxial cables with 75-ohm impedance are equally suitable
for analog video and digital audio.
Read before calling for technical support due to bad, intermittent, or no picture via HDMI!
1080p uses twice the bandwidth that 720p and 1080i do – make sure that the cable is suitable for the
application otherwise the picture may contain pixel dropouts or not play at all.
Use HDMI Category 2 cables, also known as “v1.3 certified”. This is a requirement for all connecting
devices including extenders when connecting a display that supports Deep Color (10- or 12-bit).
Connecting devices that worked in an older setup may not work with Deep Color. If the source allows
Deep Color to be turned off, start troubleshooting by turning it off.
12-bit Deep Color that works at 1080p24 may not work at 1080p50 or 1080p60.
BE CAREFUL WHEN MAKING HDMI CONNECTIONS. The connector should easily slide in the jack – do
not insert it on an angle and do not force it. Each connector contains 19 delicate pins and damaged pins
can damage jacks. Such damaged jacks are not covered by warranty. If your HDMI cables have been
connected enough times that they are about to wear out, we recommend that you replace them.
If using DVI connection note that cables with DVI connection on one end and HDMI connection on the
other are more reliable than DVI-HDMI adapters. If you are having a connection problem and an adapter
is in use, start troubleshooting by eliminating the adapter.
Analog Left
Channel
RCA Blackor
White
RCA Red
RCA Yellow
Analog Right
Channel
Digital Audioor
Composite Video
RCA Green:
Component Y
RCA Blue:
Component Pb
RCA Red:
Component Pr
Mini DIN
HDMI
S-Video
Digital Video
and Audio
1. INTRODUCTION continued …
Optical
XLR Female
(connectstooutput)
XLR Male
(connects toinput)
Digital Audio
Analog Balancedor AES/EBU
1/4” Stereo
Headphone
3.5mm
Mini (Mono)
12V Trigger
IR Emitter
