12

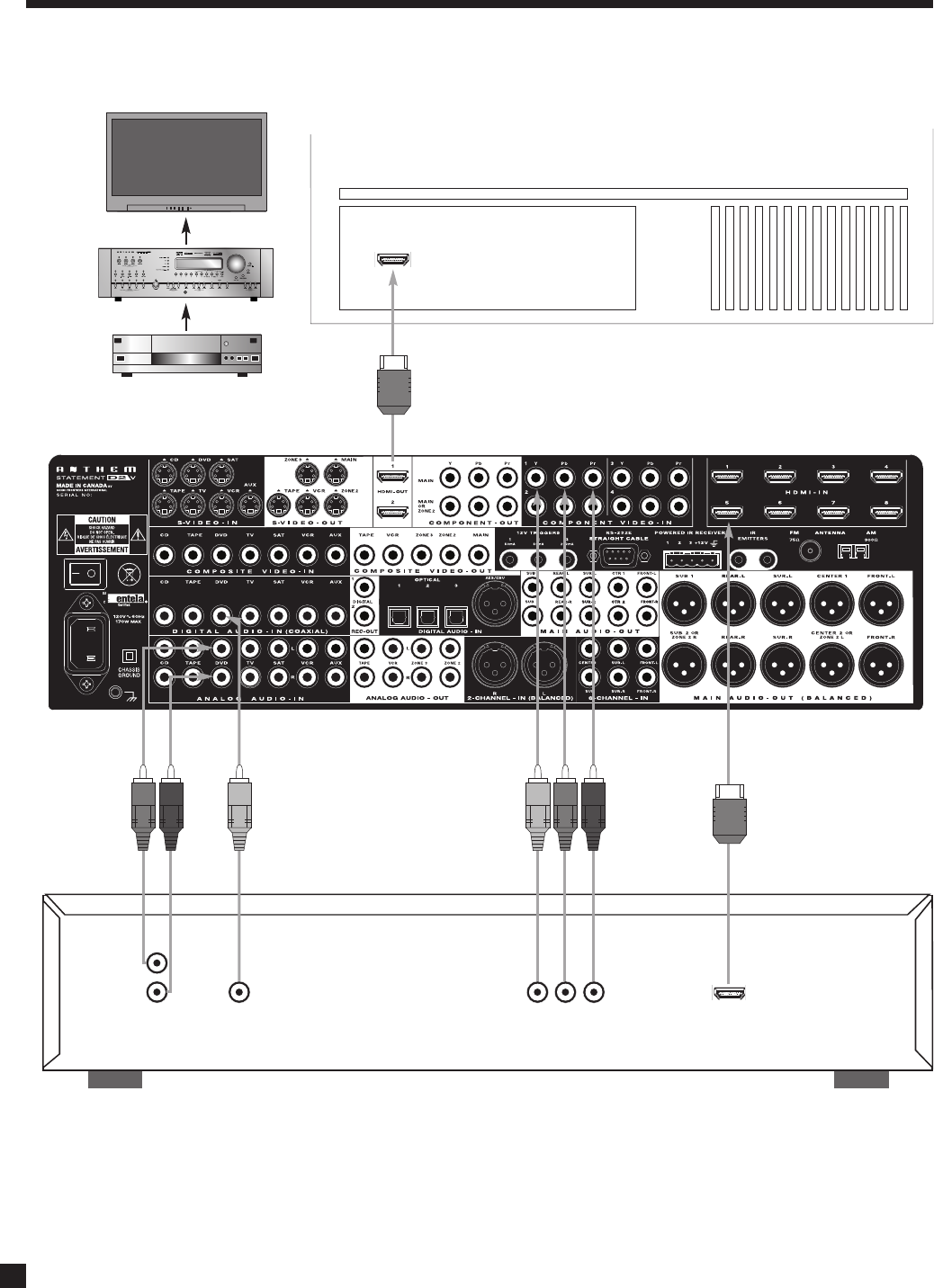

Example 1: Disc Player to processor to main display
2. CONNECTIONS continued …
DVD
Connect if using
digital REC-OUT or
if source’s video
output is DVI
HDMI IN
COAX
OUT
AUDIO
OUT
L
R
HDMI
OUT
YPbPr OUT
Connect for
MAIN
Connect if
using
ZONE2/3 or
REC
Connect if
using ZONE2
Cable and satellite receivers: HDTV receivers can be connected as above although HDMI connection may be problematic
with older models especially when output resolution changes between SD, 720p, and 1080i according to thechannel. If HDMI
is problematic use component video connection instead, with coaxial or optical connection for audio.
ln any case, using coax/optical for audio results in faster audio switching when video resolution changes.
