Connections and Setup
101
YPbPr Connections
YPBPR CONNECTIONS
The YPbPr (component) connections provide high-quality video to your HDTV or HD
monitor.
1 Connect between the YPBPR component connections on the receiver and the nearby TV
using component video cables.
2 Connect audio (red and white) RCA-type cables between the receiver AUDIO OUTPUTS and
audio input connections that go with the YPbPr connectors on your HDTV or monitor.
3 If you do not see a picture, change the resolution setting on the receiver. Use the steps
below and Setting Up to Display in HD on the next page.
4 Turn up the volume on your HDTV and confirm you have sound. Check the RCA-type
connections if you don’t have sound.
No Picture on the Nearby TV
This section will help you make a picture on the nearby TV in the event that you could not
do so in the previous sections.
1 Connect RCA-type cable connections between the receiver TV1 Out and the nearby TV.
2 Make sure the receiver and nearby TV are on.
3 Make sure the nearby TV is set to use the RCA-type inputs. Look on the back of your
HDTV and consult your HDTV user’s guide.
4 Change the HDTV settings as described on page 102.
5 Switch to the nearby TV to display from the HD inputs you selected in the previous
sections. If you have a picture from TV1, you are finished.
6 Repeat steps 4 and 5 until the nearby TV displays video from the receiver.

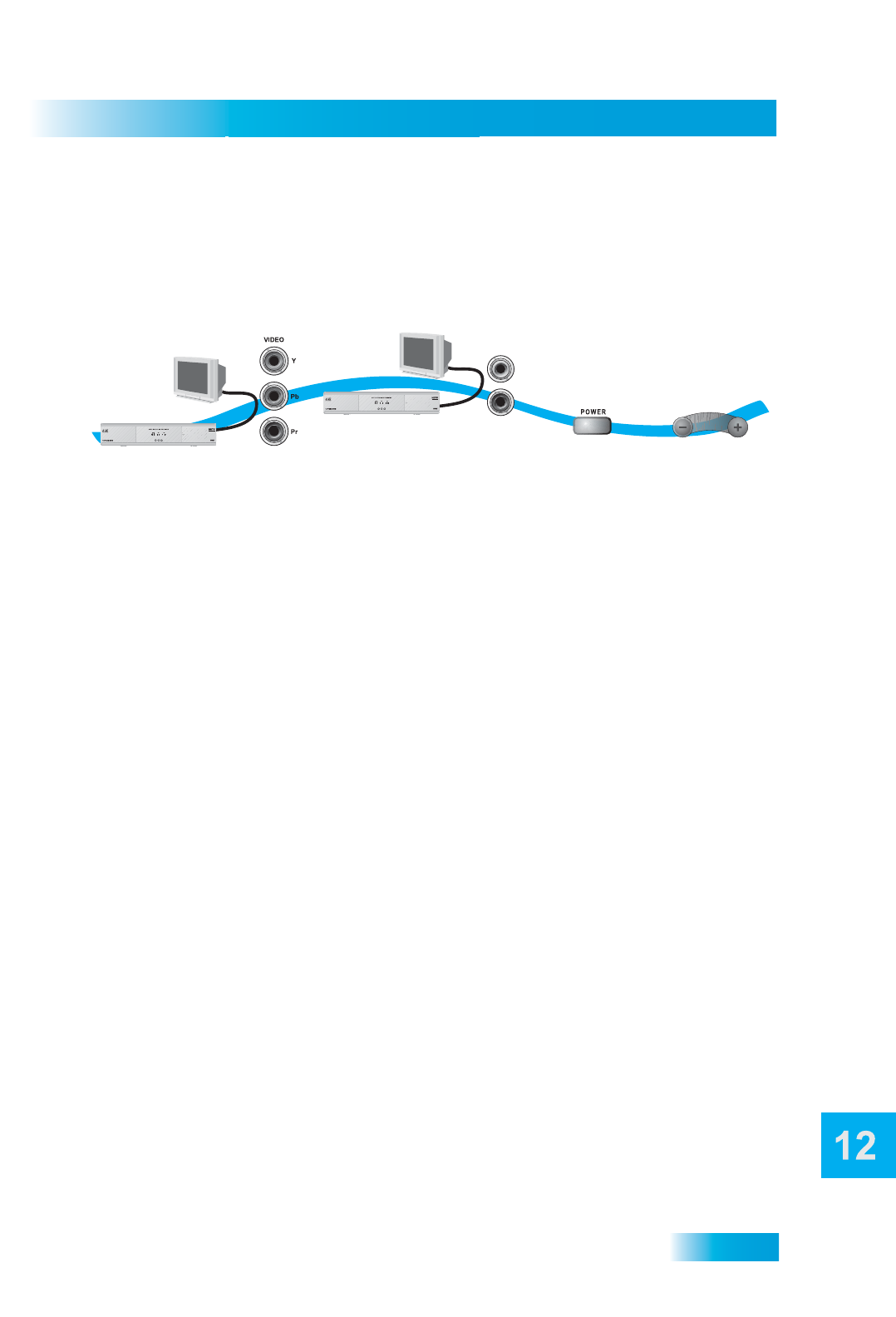

1
3
4
Connect receiver
and monitor with
YPbPr Component
connections
Turn monitor
and receiver on
and confirm
Confirm
sound and
volume
2
Connect receiver
and monitor with
Audio cables
AUDIO
L
R
