■ Video (composite) and audio cables connected to
Input 1, 2, or 3 connectors on the TV.
■ HDMI cable connected to Input 4 or 5 connectors
on the TV.
■ DVI video cable with a DVI-to-HDMI converter and
audio cables connected to the Input 4 (HDMI) and
audio connectors on the TV.

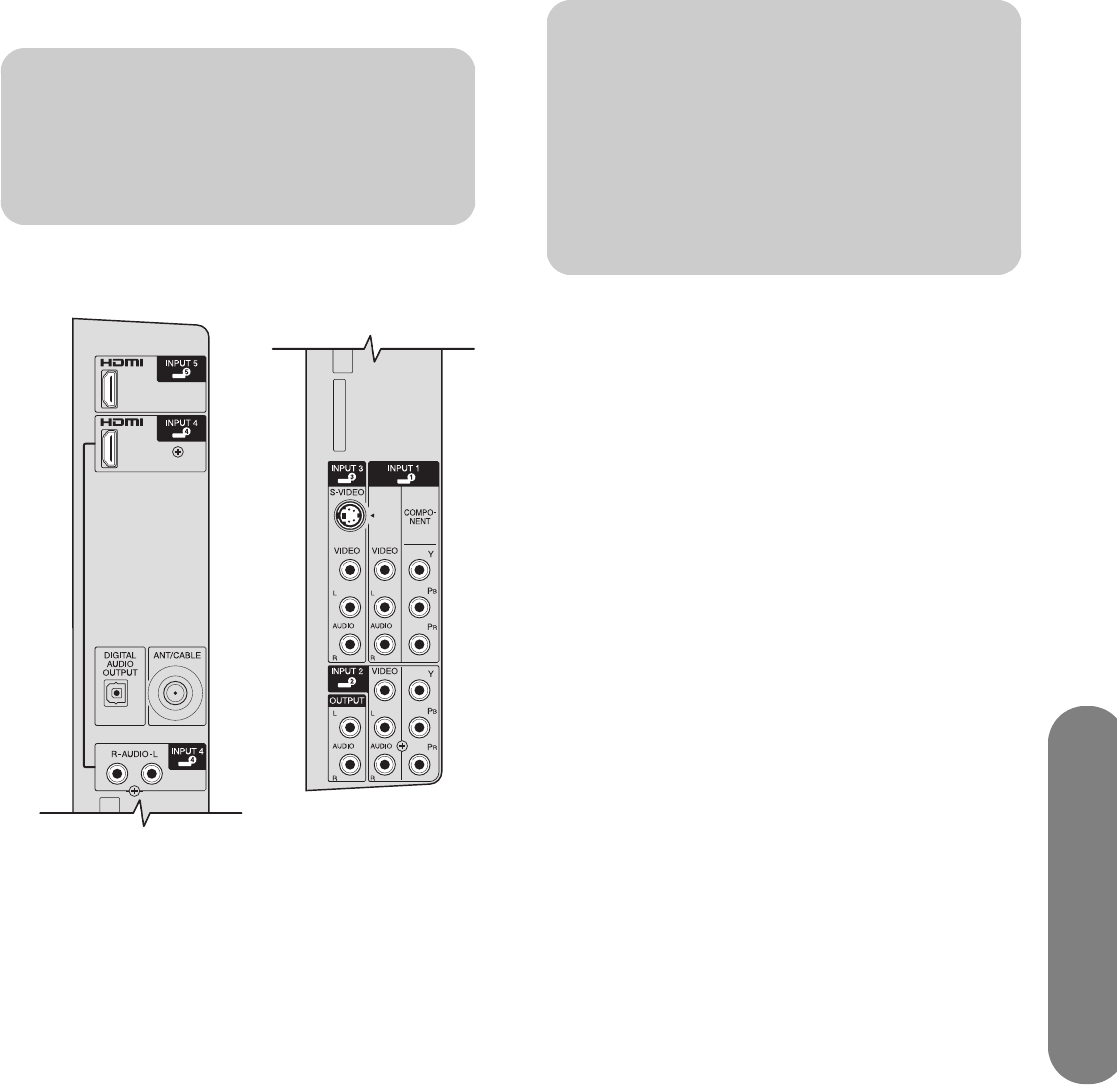

1 Connect the set-top box input source cable(s) to
the back of the TV using one of the connector sets.
■ Component video and audio cables
connected to Input 1 or Input 2 connectors on
the TV.
■ S-video and audio cables connected to Input 3
connectors on the TV.
■ Video (composite) and audio cables
connected to Input 1, 2, or 3 connectors on
the TV.
■ HDMI cable connected to Input 4 or 5
connectors on the TV.
■ DVI video cable with a DVI-to-HDMI converter
and audio cables connected to the Input 4
(HDMI) and audio connectors on the TV.
2 Connect the cables to the set-top box.
3 Turn on the set-top box.
4 Connect power to the TV; see “Connecting power
to the TV” on page 16.
5 Turn on the TV; see “Turning the TV On and Off
(Standby)” on page 17.
6 Open the OSD and specify settings as needed;
see “Changing the TV Settings” on page 27.
Connecting a DVD player, VCR,
DVR, game console, or
camcorder
You can connect optional equipment (sold separately),
such as a DVD player, VCR, DVR, and so on to the TV
by using the AV input connectors.
Optional equipment, including an external sound
system, and all cables are sold separately.
You can connect a DVD by using:
■ Component video and audio cables connected to
Input 1 or Input 2 connectors on the TV.
■ S-video and audio cables connected to Input 3
connectors on the TV.
■ Video (composite) and audio cables connected to
Input 1, 2, or 3 connectors on the TV.
c
CAUTION: Unplug power for the TV and all
connected components before connecting
the set-top box.
n
The Video (composite) connector in each of
the Inputs 1, 2, and 3 connector sets shares
audio connectors with the Component or
the S-video connector in the set. If cables
are connected to both video connectors in a
set, the Component or S-video connector
has priority over the Video connector.
