Setting Up
Setting Up 15
2
Connect the audio cable connectors to the left and
right audio connectors for Input 3.
3 Connect the cables to the device.
4 Turn on the device, and start play.
5 Connect power to the TV; see “Connecting power
to the TV” on page 16.
6 Turn on the TV; see “Turning the TV On and Off
(Standby)” on page 17.
Connecting a VCR for recording
The TV does not output a signal for recording.
Connect a VCR or other device for recording to the
signal source (antenna or cable), and then connect the
device to the Ant/Cable connector on the TV. See
“Connecting the cable TV or the air antenna” on
page 10. Use the recording device to tune to the
channel you want to record.
Connecting an external sound
system
You can connect an external sound system to the TV
using a digital audio or an analog audio signal:

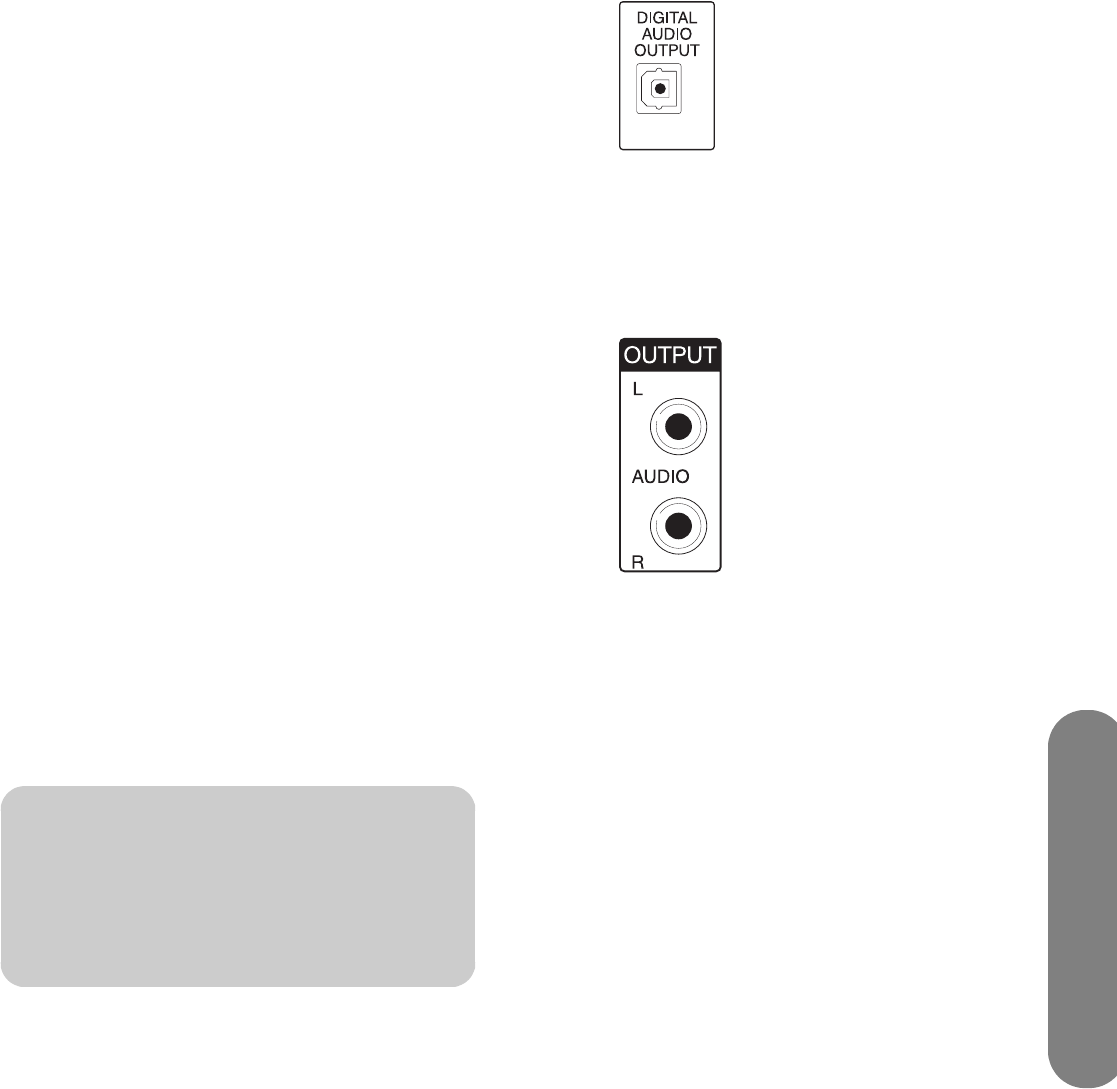

■ Use the Digital Audio Out connector on the back
of the TV to provide a digital audio signal to an
optional external sound system, such as a digital
receiver or a surround sound system.
■ Use the Audio Out left and right connectors on the
back of the TV to provide an analog audio signal
to an optional external sound system, such as an
analog amplifier or stereo system.
Cables are sold separately.
1 Connect the external sound system to the TV:
■ For a digital audio connection, connect an
optical cable to the Digital Audio Out
connector on the back of the TV and to an
external sound system.
Or
■ For an analog connection, connect audio
cables to the Audio Out left and right
connectors on the back of the TV and to an
external sound system.
2 Connect power to the TV; see “Connecting power
to the TV” on page 16.
3 Turn on the TV; see “Turning the TV On and Off
(Standby)” on page 17.
4 Connect power and turn on the external sound
system.
5 Define the digital audio format in the Option
menu; refer to “Using the Option Menu” on
page 32.
c
CAUTION: Unplug power for the TV and all
connected components before connecting
an external sound system. Ensure that the
external sound system is powered off.
