CONNECTING OTHER DEVICES
[HDMI]

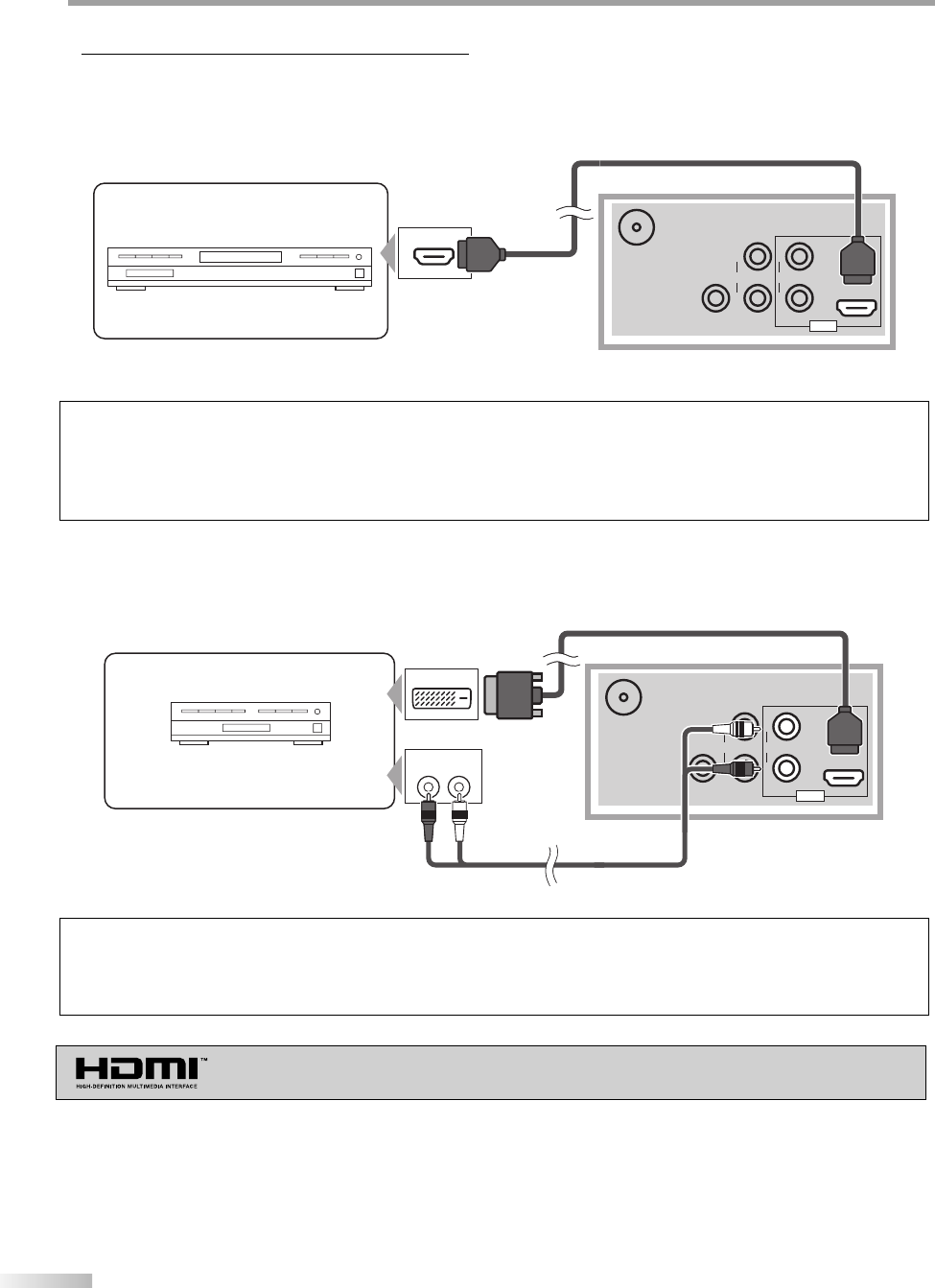

1) High Definition Multimedia Interface (HDMI) uses the latest technology to ensure the signal maintains the highest
degree of integrity from source to TV. Both video and audio travel through a single cable.
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
HDMI OUT
To HDMI output jack
To HDMI IN jack
Rear of this TV
DVD recorder with the HDMI output jack
HDMI cable
(not included)
EX.
NOTE:
• This TV accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.
• This TV accepts only 2 channel audio signal (LPCM).
• You need to select “PCM” for the digital audio output of the device you connect or the HDMI audio setting. Audio sometimes makes no
sound if you select “Bitstream”, etc.
• This TV only accepts signals corresponding EIA861.
2) When your video device has a DVI output jack, connect the HDMI conversion cable (not included) from the DVI out-
put jack.
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
DVI OUT
AUDIO OUT
RL
To DVI output jack
To audio
output jacks
To AUDIO
input jacks
Rear of this T
V
To HDMI IN jack
Cable box or Satellite box
with the DVI output jack
HDMI-DVI conversion cable
(not included)
Audio cable
(not included)
EX.
NOTE:
• This TV accepts 480i / 480p / 720p / 1080i video signals.
• An HDMI conversion cable requires a separate audio cable connection as well.
• Audio signals are converted from digital to analog if you make the connection in paragraph 2) above.
• DVI does not show image if the 480i does not accept EIA/CEA-861/861B.
