I
NTRODUCTION
ANT. IN
INNER JACKS
INNER JACKS
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
L
R
AUDIO
HDMI IN
HDMI
L
R
AUDIO
L
Y
Pb
Pr
R
AUDIO
L
Y
Pb
Pr
R
AUDIO
VIDEO VIDEO
COMPONENT2 COMPONENT1 VIDEO1 VIDEO1
S-VIDEO1
S-VIDEO2
L
R
AUDIO
L
R
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
S-VIDEO1
S-VIDEO2
VIDEO1
VIDEO
VIDEO2COMPONENT1
VIDEOY
Pb
Pr
COMPONENT2
Y
Pb
Pr
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
from underneath
Rear of this TV
from underneath
1
2
3
4
5
10
9
8
7
6
11
STANDBY POWER ON
DVD CONTROL
TV CONTROL
POWER
CHANNEL
VOLUME
SETUP
STOP PLAY SKIP EJECT
INPUT SELECT/
ENTER
1
2
3
4
5
6
7
8
9
10
NOTE:
• With buttons [VOLUME X/Y], you can only adjust the volume
of the main unit. You cannot adjust the volume of the external
devices with these buttons.
1. SETUP button (p21)
To display on-screen menu.
2. STOP C button (p30)
To stop disc playback.
3. PLAY B button (p30)
To begin disc playback.
4. SKIP H / G buttons (p34)
To skip chapters, titles (DVD) or tracks (CD, MP3 or JPEG).
5. EJECT
A button (p30)
To eject the disc.
6. POWER button (p13)
To turn TV/DVD on or off.
7. INPUT SELECT/ENTER button (p19/p13)
• To access connected external devices like a DVD recorder
or VCR.
• To decide the command of setting when the menu is displayed.
8. CHANNEL
K
/
L
buttons (p17)
To select channels and move up/down through the menu items.
9. VOLUME
X
/
Y
buttons (p17)
To adjust volume and move right(
X
)/left(
Y
) through the
menu items.
10. Infrared Sensor Window
Receives infrared rays transmitted from the remote control.

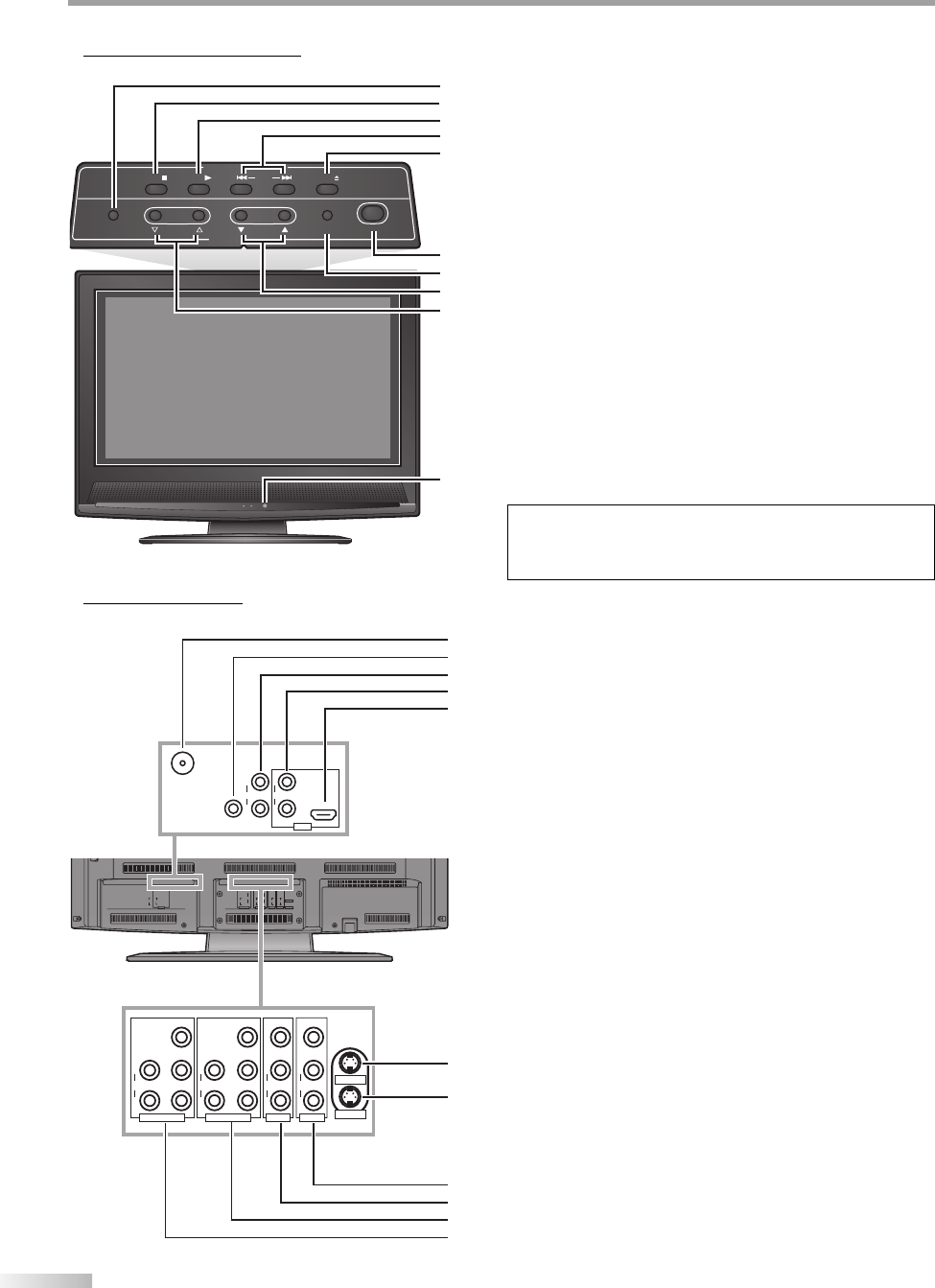

CONTROL PANEL5
REAR PANEL5
1. ANT. IN jack (p9)
Coaxial cable connection for your antenna or cable box.
2. DIGITAL AUDIO OUT (COAXIAL) jack (p12)
Digital audio coaxial cable connection for decoder or audio
receiver. Connect cable to DIGITAL AUDIO IN jack of external
device.
3. AUDIO OUT jacks (p12)
Audio cable connection for external audio equipment. Use
AUDIO IN jacks of external equipment.
4. AUDIO input jacks (for DVI connection) (p10)
Audio cable connection for external audio/video devices
with DVI jack. Use AUDIO OUT jacks of external equipment
when using an HDMI-DVI conversion cable.
5. HDMI IN jack (p10)
HDMI cable connection for external video equipment (i.e.
DVD recorder).
6. S-VIDEO1 input jack (p11)
S-Video cable and audio ( in VIDEO1 terminal) cable connec-
tion for external video equipment.
7. S-VIDEO2 input jack (p11)
S-Video cable and audio ( in VIDEO2 terminal) cable connec-
tion for external video equipment.
8. VIDEO1 and AUDIO input jacks (p12)
Video and audio cable connection for external equipment.
9. VIDEO2 and AUDIO input jacks (p12)
Video and audio cable connection for external equipment.
10. COMPONENT1 and AUDIO input jacks (p11)
Component cable connection for external audio/video
devices. Use component and audio out jacks of external
device.
11. COMPONENT2 and AUDIO input jacks (p11)
Component cable connection for external audio/video
devices. Use component and audio out jacks of external
device.
