OPERATING TV OPERATING DVD SETTING DVDINTRODUCTION
PREPARATION
SETTING TV
TROUBLESHOOTING
ESPAÑOLINFORMATION
9
EN
P
REPARATION
CONNECTION
This section describes how to connect your TV to an antenna, cable box, etc.
MAKE SURE YOU HAVE AN ANTENNA.
As DTV is only available over the air, you need an antenna to receive a digital signal.
NOTE:
• Be sure your antenna or other source is connected properly before plugging in the power cord.

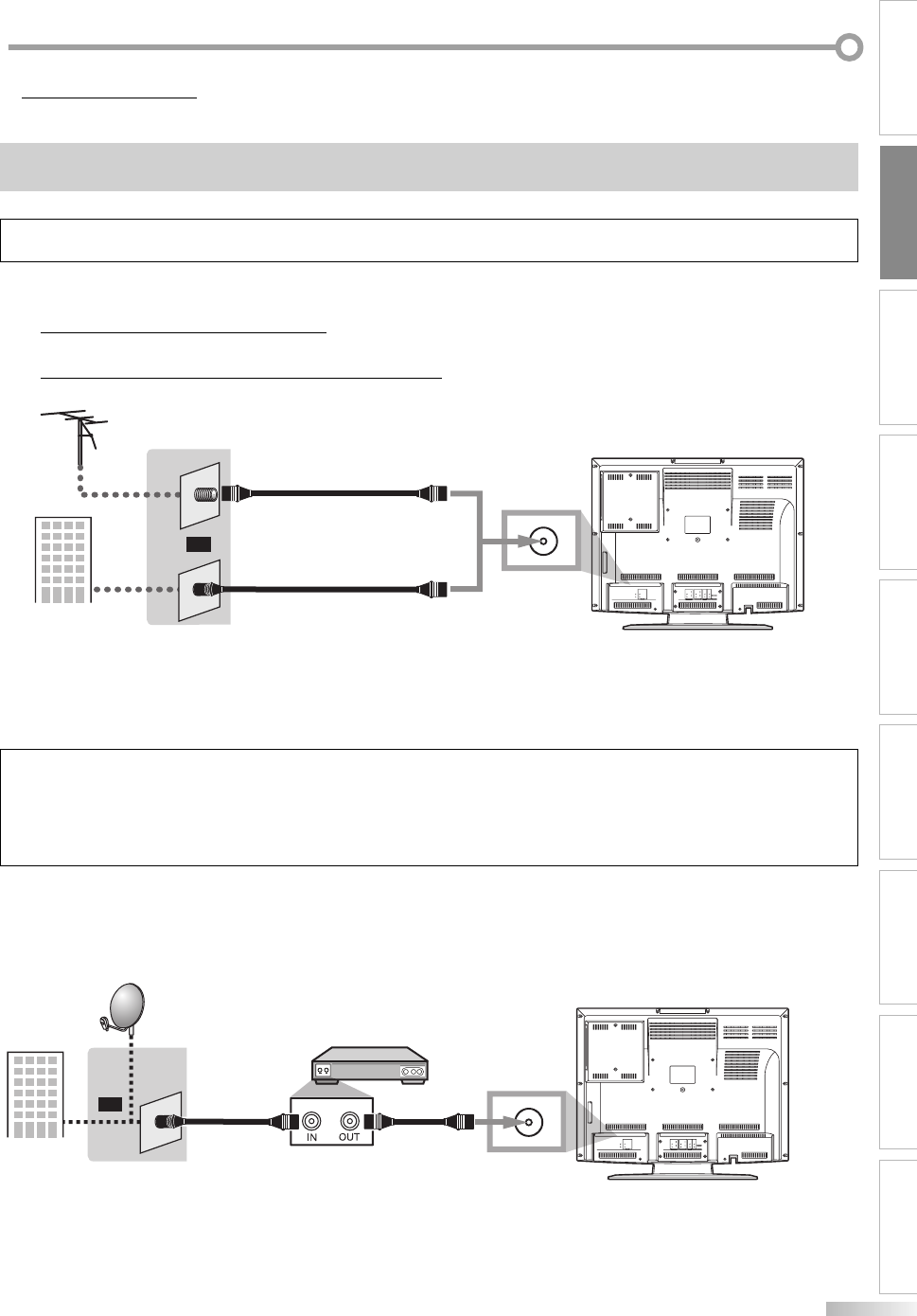

[ANTENNA CABLE CONNECTION]
1) When connecting your TV to an antenna
Connect the coaxial cable on your home outlet to the ANT. IN jack of this TV.
2) When connecting TV to Cable TV company (without box)
Connect the coaxial cable on your home outlet to the ANT. IN jack of this TV.
ANT. IN
INNER JACKS INNER JACKS
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
L
R
AUDIO
HDMI IN
HDMI
L
R
AUDIO
L
Y
Pb
Pr
R
AUDIO
L
Y
Pb
Pr
R
AUDIO
VIDEOVIDEO
COMPONENT2 COMPONENT1 VIDEO1VIDEO1
S-VIDEO1
S-VIDEO2
L
R
AUDIO
L
R
ANT. IN
VHF / UHF
antenna
Coaxial cable
(not included)
Rear of this TV
Coaxial cable
(not included)
Cable TV
company
or
* Once connections are completed, turn on the TV and begin initial setup.
Channel scanning is necessary for the TV to memorize all available channels in your area.
(Refer to “INITIAL SETTINGS” on page 13.)
NOTE:
• For your safety and to avoid damage to equipment, please unplug the coaxial cable from the ANT.IN jack before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than set-
top versions.
• To easily switch your reception source between antenna and cable, install an antenna selector (not included).
• If you connect to the cable system directly, contact the CATV installer.
[CONNECTION TO CABLE BOX or SATELLITE BOX]
1) Connect the coaxial cable on your home outlet to the input jack of the CABLE/SATELLITE box.
2) Use another coaxial cable to connect the ANT. IN jack of your TV to the output jack of the CABLE/SATELLITE box.
ANT. IN
Coaxial cable
(not included)
Coaxial cable
(not included)
Cable box or
Satellite box
Satellite
dish
EX.
Rear of this TV
Cable TV
company
or
ANT. IN
INNER JACKS INNER JACKS
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
L
R
AUDIO
HDMI IN
HDMI
L
R
AUDIO
L
Y
Pb
Pr
R
AUDIO
L
Y
Pb
Pr
R
AUDIO
VIDEOVIDEO
COMPONENT2 COMPONENT1 VIDEO1VIDEO1
S-VIDEO1
S-VIDEO2
L
R
AUDIO
L
R
* Required cables in 2) and connecting methods differ depending on the CABLE/SATELLITE box.
For more information, please contact your cable/satellite provider.
5
