Getting started

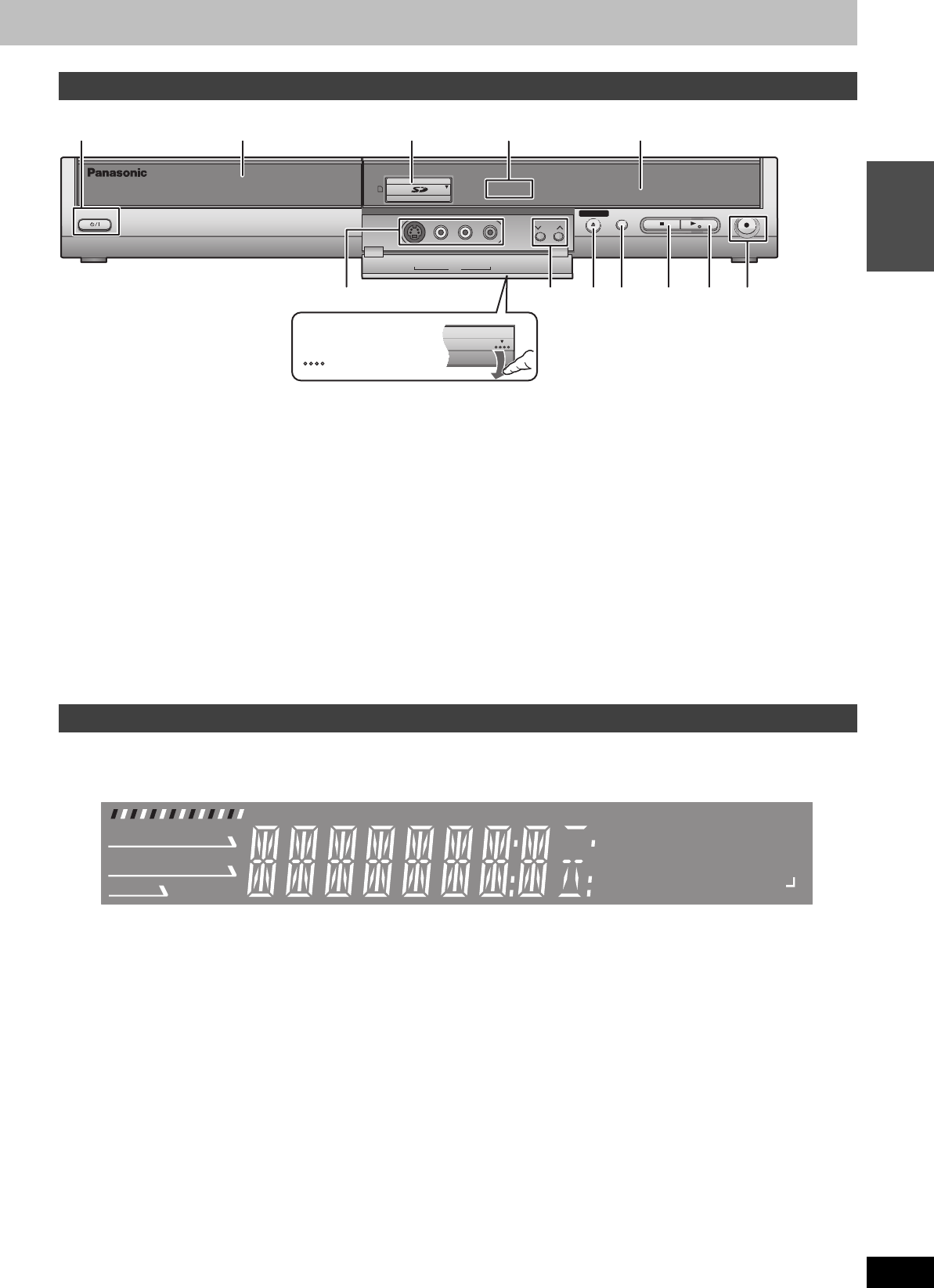

1 POWER button (POWER Í/I) (➡ 16)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
2 Disc tray (➡ 20, 30)
3 SD card slot (➡ 5)
4 Lights when the HDD, DVD or SD drive is selected
5 Display (➡ below)
6 Connecting to external equipment (➡ 47)
7 Channel select (➡ 20)
8 Open/close disc tray (➡ 20, 30)
9 Select drive (➡ 20, 30, 34)
Drive changes each time you press [DRIVE SELECT].
: Stop (➡ 20, 30)
; Start play (➡ 30)
< Start recording/Remote control signal sensor (➡ 20)
Specify the time to stop recording (➡ 21)
Rear panel terminals (➡ 12)
1 e.g.,[HDD]
2 Channel
3 Transferring (dubbing) indicator
4 D.MIX (multi-channel DVD-Audio only)
When lit: Down-mixing (➡ 68) is possible.
When off:The disc prevents down-mixing so only the two front
channels can be played (➡ 8, Regarding DVD-Audio).
5 Recording mode
6 Disc type
7 Lights when the HDD, DVD or SD drive is selected
8 Main display section
9 Scheduled recording indicator
Main unit
IN2
IN 2
CH
C H
HDD
DVD SD
S VIDEO
S VIDEO
VIDEO
VIDEO
L/MONO
L/MONO
-
AUDIO
AUDIO
-
R
OPEN/CLOSE
OPEN/CLOSE
DRI
DRI
VE
VE
SELECT
SELECT
REC
REC
POWER
/x
1.3
12 345
7:9<;86
Opening the front panel
part
with your finger.
Press down on the
The unit’s display
