14
RQT8203
STEP 1
Connection
≥The equipment connections described are examples.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.
∫ Recommended connection for your television
Q Link functions
Q Link offers a range of convenient functions (For further details ➡ 69). Make sure to connect a fully wired 21-pin Scart cable to the television
if using the Q Link functions.
The following systems from other manufacturers have similar function to Q Link from Panasonic. For details, refer to your television’s operating
instructions or consult your dealer.
≥Q Link (registered trademark of Panasonic)
≥DATA LOGIC (registered trademark of Metz)
≥Easy Link (registered trademark of Philips)
≥Megalogic (registered trademark of Grundig)
≥SMARTLINK (registered trademark of Sony)
∫ When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This
unit consumes a small amount of power, even when it is turned off
[approx. 3 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does
not work.
∫ Connect the unit directly to the television
If you connect the unit through an AV selector or video cassette
recorder to the television, video signal will be affected by copyright
protection systems and the picture may not be shown correctly.
≥When connecting to a television with a built-in VCR
Connect to the input terminals on the television side if there are
both television and VCR input terminals.

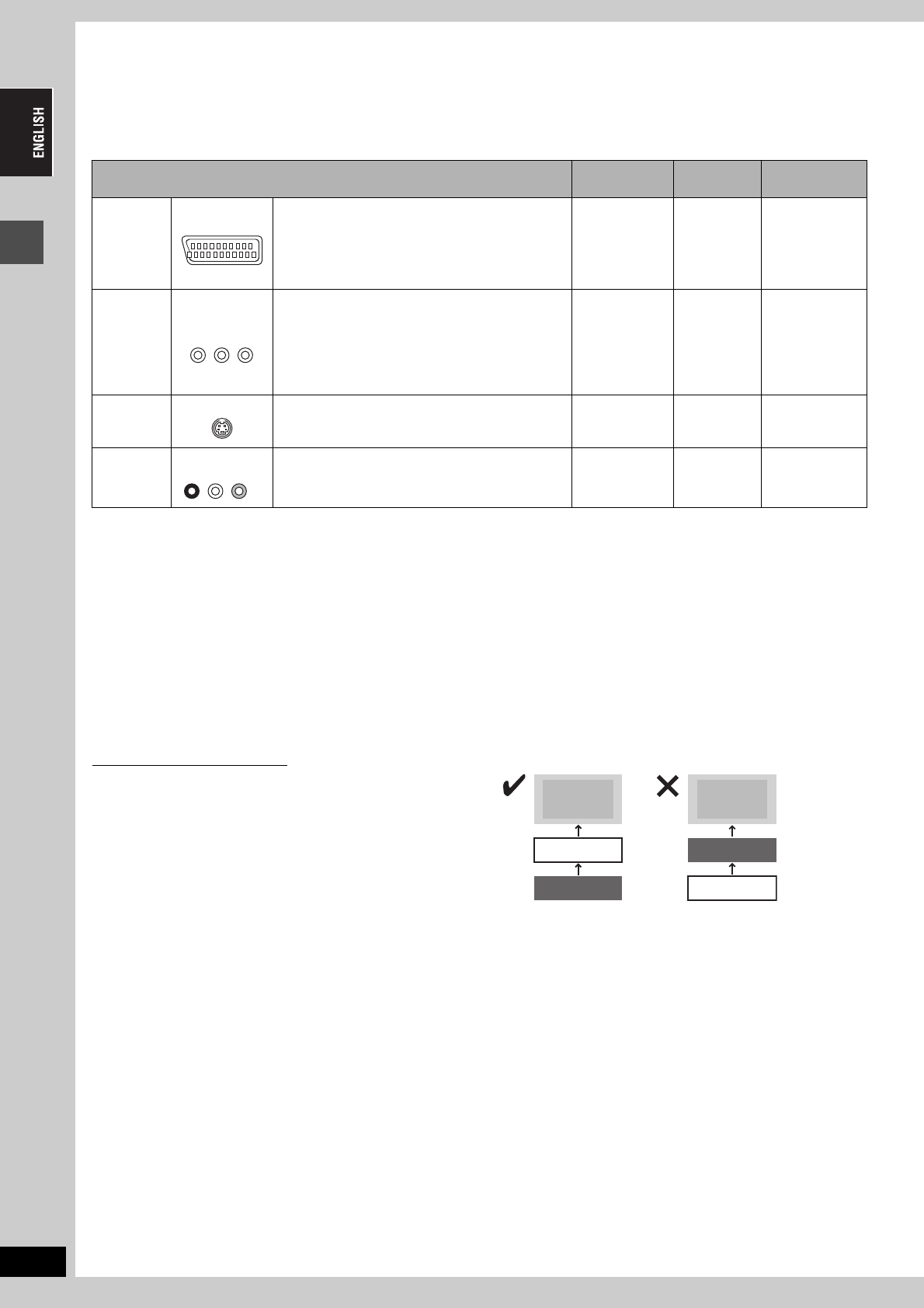

What kind of input terminal does your television have?
Required
cable(s)
Page No. for
connections
Page No. for TV
settings
Scart Highly recommended connection.
≥You can enjoy high-quality RGB video from this
unit by connecting to an RGB compatible
television.
≥If your television has the Q Link feature, you can
use a variety of useful functions.
Fully wired 21-
pin Scart cable
➡ 15
➡ 19
≥If it’s a Q Link
television ➡ 18
Component
video
These terminals provide a purer picture than the S
Video terminal.
≥If your television is compatible with progressive
scan, you can enjoy high-quality progressive video.
If you have a progressive compatible CRT
television, we cannot recommend this connection
as some flickering may occur.
3 video cables ➡ 16 ➡ 19
S Video This terminal achieves a more vivid picture than the
video terminal.
S Video cable ➡ 16 ➡ 19
Audio/Video The most basic connection.
Audio/Video
cable (included)
➡ 16
➡ 19
AV IN
COMPONENT
VIDEO IN
S VIDEO IN
AUDIO IN
R L
VIDEO IN
Television
This unit
VCR
Television
VCR
This unit
STEP 1 Connection
14
