Connecting an external
decoder box (1)
If you have an external, dedicated decoder
box for your satellite or cable TV system, use
the setup described on this page. See the
previous page for how to connect the G-
LINK™ cable.
Important
• Do not connect your decoder box directly
to this recorder.
• Information from the decoder (for
example, relating to pay TV services), is
only viewable when this recorder is off
(in standby).
• For timer recording to work properly on
this recorder, the VCR/satellite receiver/
cable box must also be switched on
during recording.
• It is not possible to watch one TV
program and record another using this
setup.

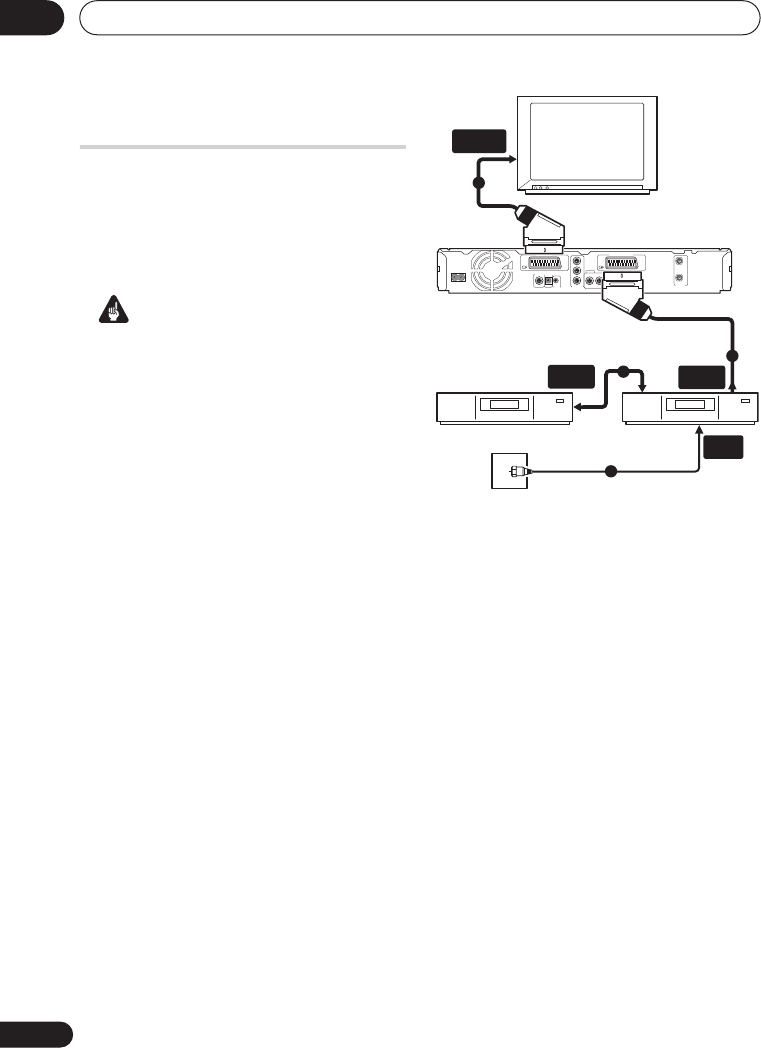

1 Connect the cable from the antenna/
cable TV outlet to the antenna input on
your VCR/satellite receiver/cable box.
2 Use a SCART cable (not supplied) to
connect your decoder to your VCR/
satellite receiver/cable box.
See the manual for your decoder box for
more detailed instructions.
3 Use a SCART cable to connect your
VCR/satellite receiver/cable box to the
AV2(INPUT 1/DECODER) AV connector on
this recorder.
4 Use a SCART cable to connect the
AV1(RGB)-TV AV connector to your TV.
