1. DIGITAL AUDIO OUT(OPTICAL)
Connects to an amplifier having a digital optical
audio input jack.
2. DIGITAL AUDIO OUT(COAXIAL)
Connects to an amplifier having a digital coaxial
audio input jack.
3. LINE AUDIO OUT
Connects to the audio input of external equipment
using audio cables.
4. LINE VIDEO OUT(good video quality)
Connects the input of external equipment using a
Video cable.
5. LINE S-VIDEO OUT(better video quality)
Connects the input of external equipment using an
S-Video cable.
6. COMPONENT VIDEO OUT(best video quality)
Connects to equipment having Component video
input jacks.
7. LINE 1 AUDIO IN
Connects the output of external equipment using an
audio cables
8. LINE 1 VIDEO IN
Connects the output of external equipment using a
video cable.
9. LINE 1 S- VIDEO IN
Connects the output of external equipment using an
S-Video cable.
10. ANT IN/ANT OUT (TO TV)
Connects antenna cables.

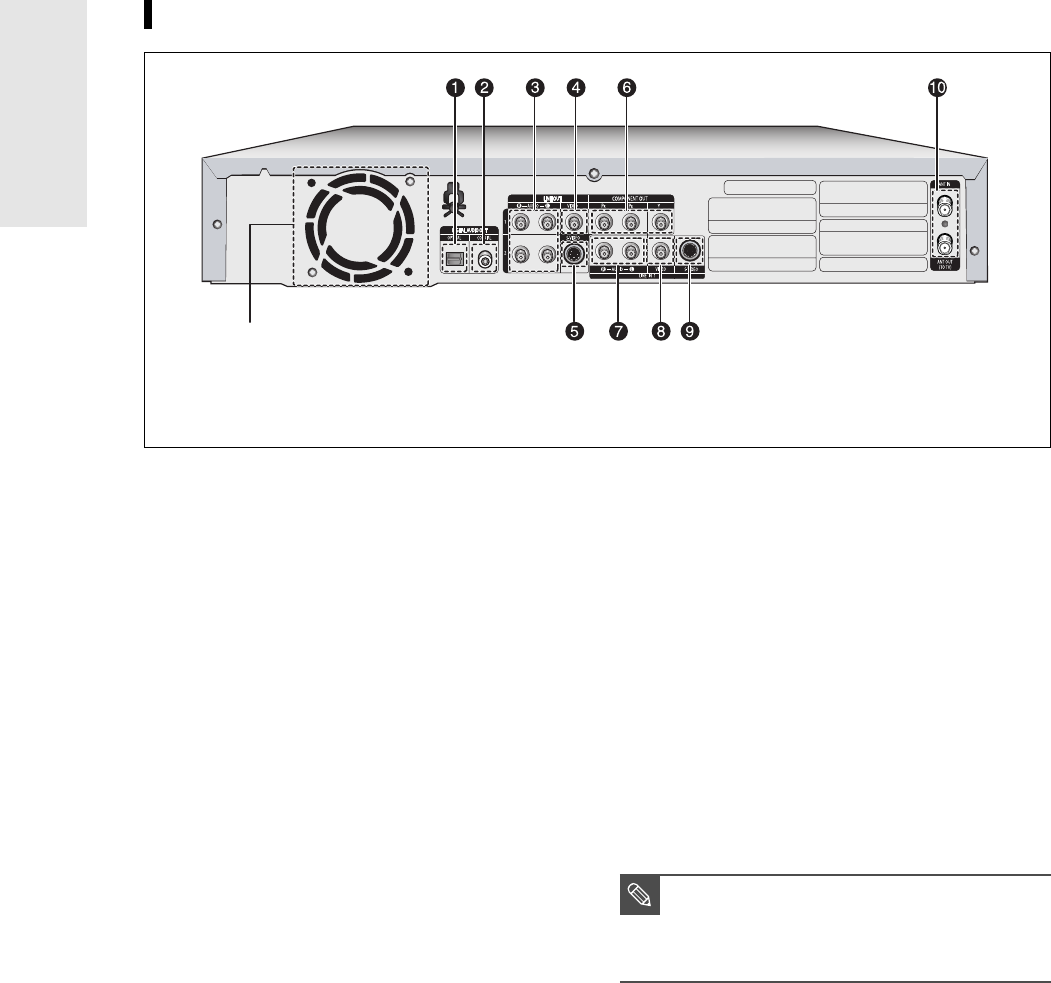

Rear Panel
Fan
The fan always revolves when the power is on.
Ensure a minimum of 4” clear space on all sides of the
fan when installing the product.
Getting Started
■
The Antenna connection does not pass
audio/video signals. To watch a DVD on
your TV, you must connect audio/video
cables.
NOTE
Accessories
Check for the supplied accessories below.
●
Video/Audio Cable (AC39-00073A)
●
RF Cable for TV (AC39-42001J)
●
Remote Control (AK59-00012H)
●
Batteries for Remote Control (AAA Size)
(AC43-12002H)
●
User’s Manual (AK68-00683A)
●
Quick Guide (AK68-00684A)
