Installation and Wire
connection manual
68 VRX756VD
280-8207-00
This unit is designed for fixed installation in the
dashboard.
If the vehicle is equipped with a factory-installed
radio, install the main unit with the parts and
screws marked (∗). (Figure 8)
If the vehicle is not equipped with a factory-
installed radio, obtain an installation kit to install
the main unit in the following procedure.

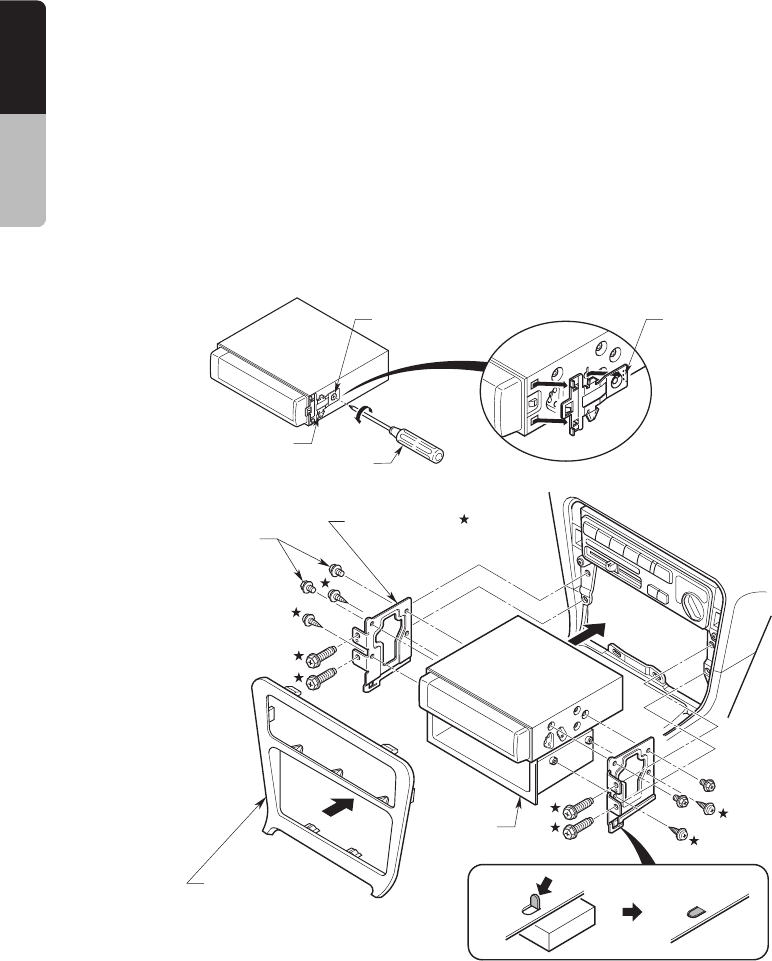

1. Remove the screws from both side of the
main unit. Then, at either side, lift the leaf
spring until the engaging claws are released
from the holes, and slide the spring to the
■ Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)
direction of arrow to remove it. Repeat the
same for the other side to remove the
springs from the both sides. (Figure 7)
2. Secure the mounting brackets to the chassis
as shown in Figure 8. Holes are pre-tapped
for TOYOTA and NISSAN vehicles;
modification, such as drilling new holes, of
the mounting brackets may be required for
other models.
3. Wire as shown in Section 8.
4. Secure the unit in the dashboard, and then
reassemble the dashboard and the centre
panel.
Note 1: In some cases, the centre panel may
require some modification (trimming,
filling, etc.).
Note 2: If a hook on the installation bracket
interferes with the unit, bend and flatten it
with a nipper or a similar tool.
2-Screw
2-Spring
4-Hexagonal screw ∗ (M5 × 8)
Main Unit
Figure 7
Main Unit
Screwdriver
Engaging claw
Mounting bracket
(1 pair for the left and right sides)
Pocket
Centre Panel (Note 1)
Note 2
Figure 8
∗: The screws with this mark are
enclosed in this set.
★:The parts and screws with this mark
are used to install radio or included in
the installation kit.
